HANGCHA CDD15-WS - Hydraulic System

47
2 Hydraulic system

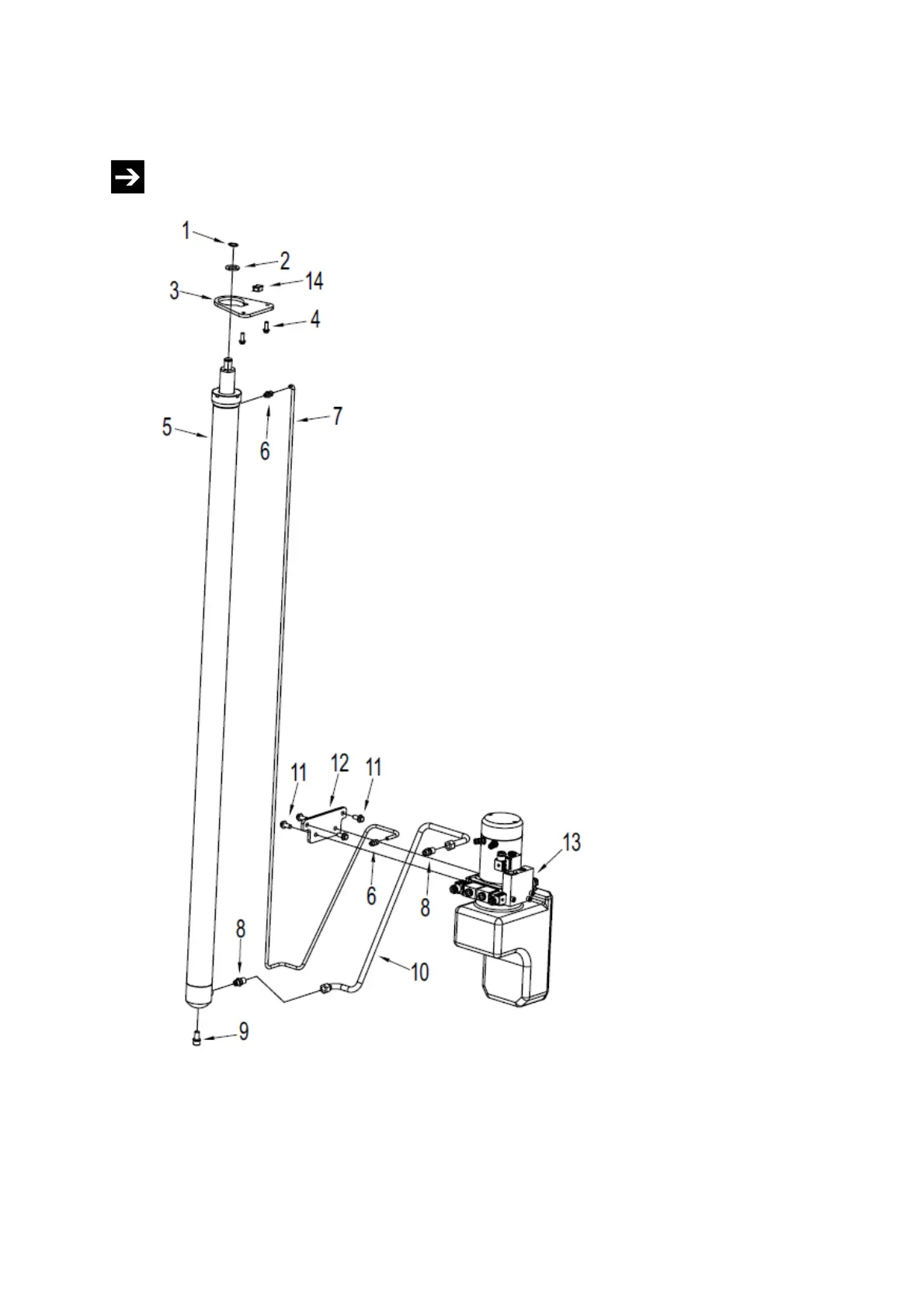

Hydraulic system is mainly composed of hydraulic unit, lifting cylinder and rubber tube etc.
1. Circlip 20
2. Flat washer 20
3. Cylinder retainer plate
4. Screw M8x25
5. Cylinder assy.
6. Oil return pipe connector
7. Oil return pipe
8. High-pressure oil pipe connector
9. Screw M12X25
10. High-pressure oil pipe
11 .Screw M10X25
12 .Mounting plate
13 Hydraulic unit
14 Cylinder head block
