Getting Start
USER’S MANUAL 11
1.4 Connect Device
There are two connection modes: USB connection and LAN connection.
USB connection

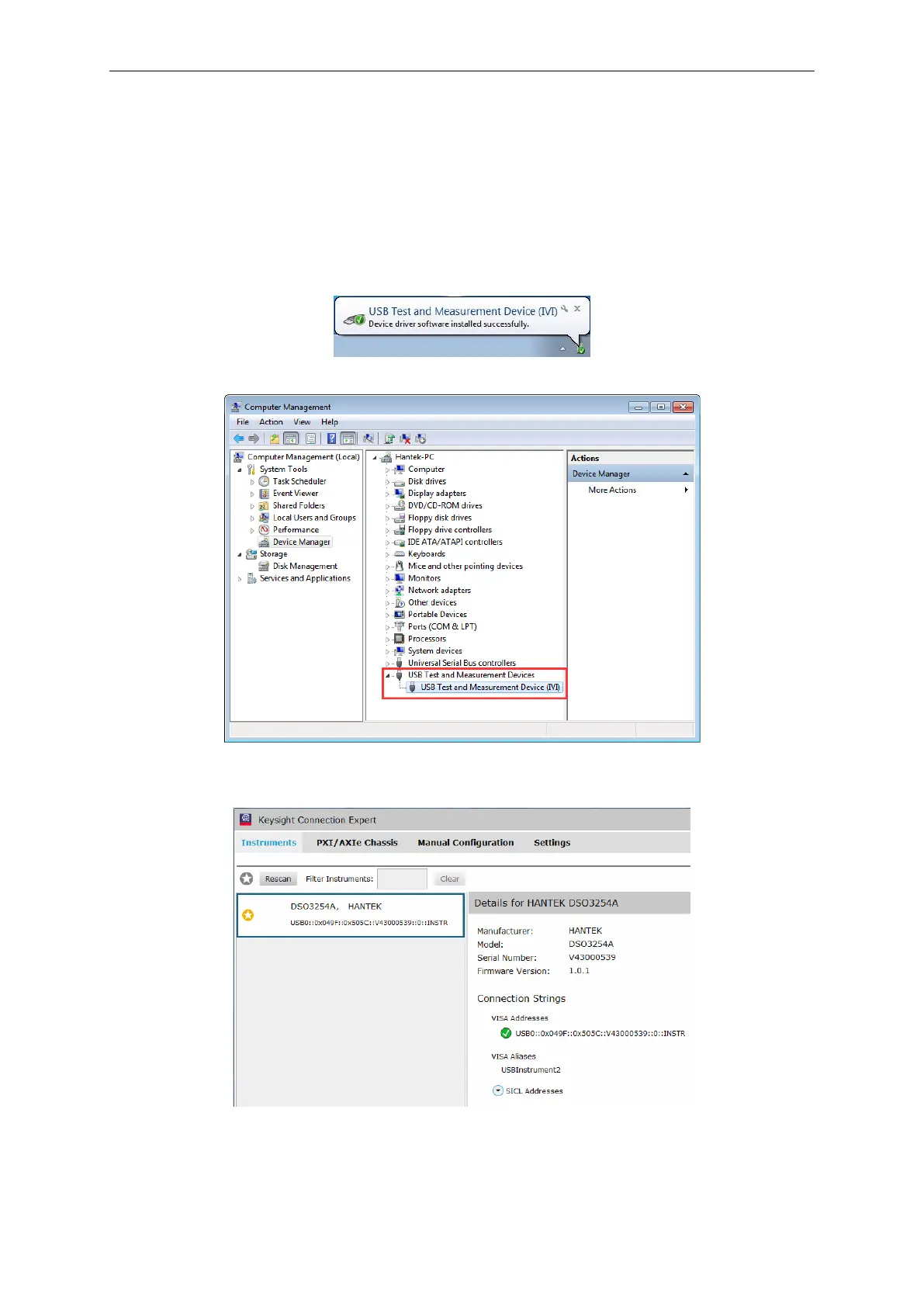

1.Power on. Connect DSO scope to PC via USB cable. The driver will install by itself. When the
driver is installed successfully, there will have a prompt as follows:
2.After installing successfully, users can see the driver information in the computer management.
3.Click Keysight IO libraries suite icon in bottom right corner, and choice “Connection Expert”. Now
users can see the device information.
4.If installing unsuccessfully, right click to update the driver manually, and choice the correct route:
C:\Program Files\IVI Foundation\VISA\IVI USB Staging\b841aa80\Windows
5.Double click “DSO-xxxx” shortcut on desktop to open the software of DSO device. The device is
connected with PC successfully. You can see “Connected” tip in status column.
