Chapter 5 Logic Analyzer Function
1. Set Bus

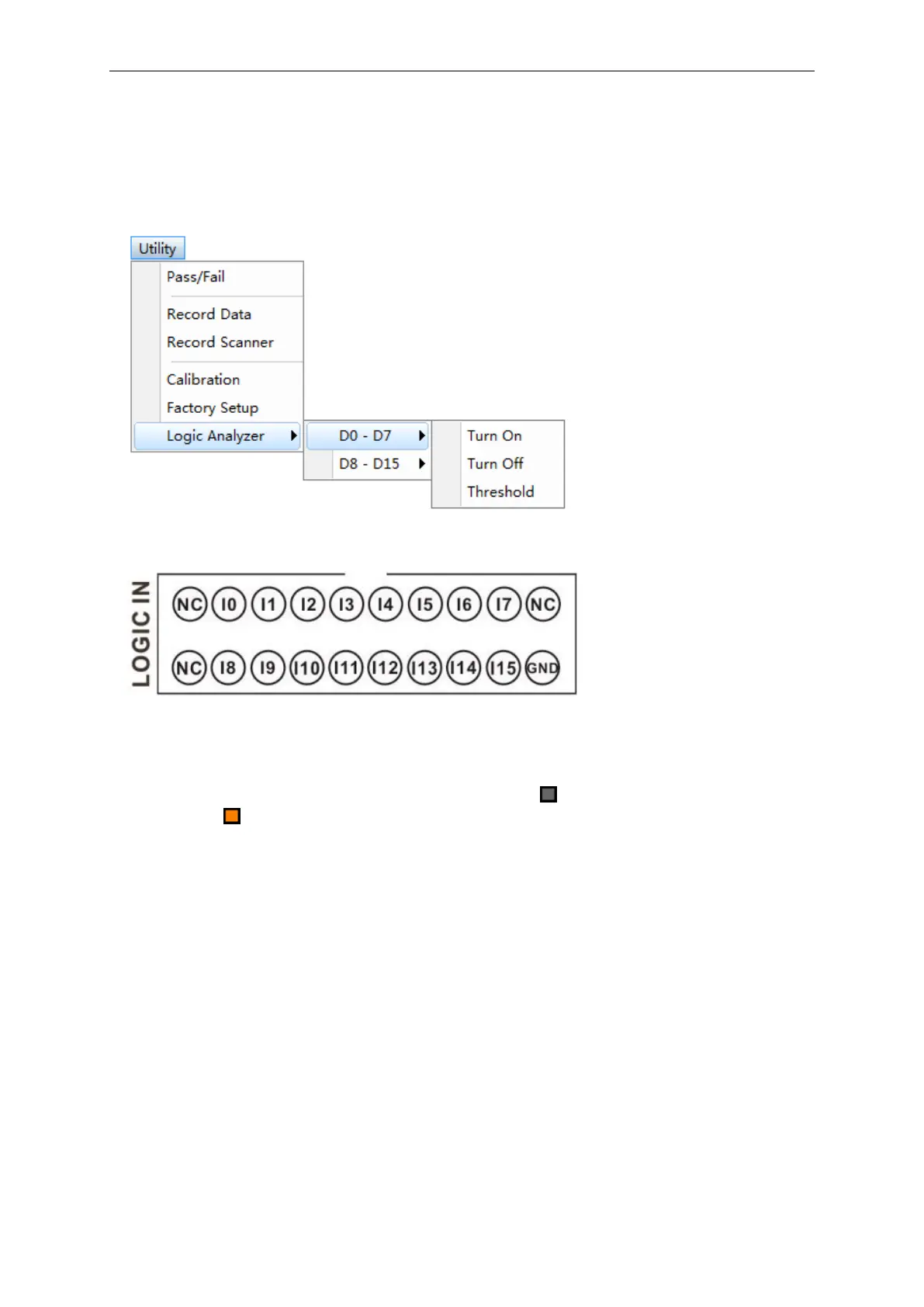

Click the menu “Utility -> Logic Analyzer”.
Logic Analyzer LOGIC IN ports,
DSO3000A（DSO3104A, DSO3204A, DSO3254A）has 16 signals, I0-I15, Corresponding to the
software on the display is D0 - D15.
You can assign parts of them. The user can click the panes under the waveform window. If the
pane is orange , it means that you have opened it. Also you can click " Utility -> Logic Analyzer
- > D0 -D7 or D8-D15" to open low eight or high eight.
