6.3 Digital Generator
ON：Open Digital Generator
Sync to Source：Synchronized to Source, 16 bits digital output. The signal is the same to the
signal from Waveform Generator OUTPUT.
00-15：16 bits digital channel
LOGIC OUT：16 Channel Digital generator output ports:
The user can edit the 00-15 high-low level, and output by LOGIC OUT port.

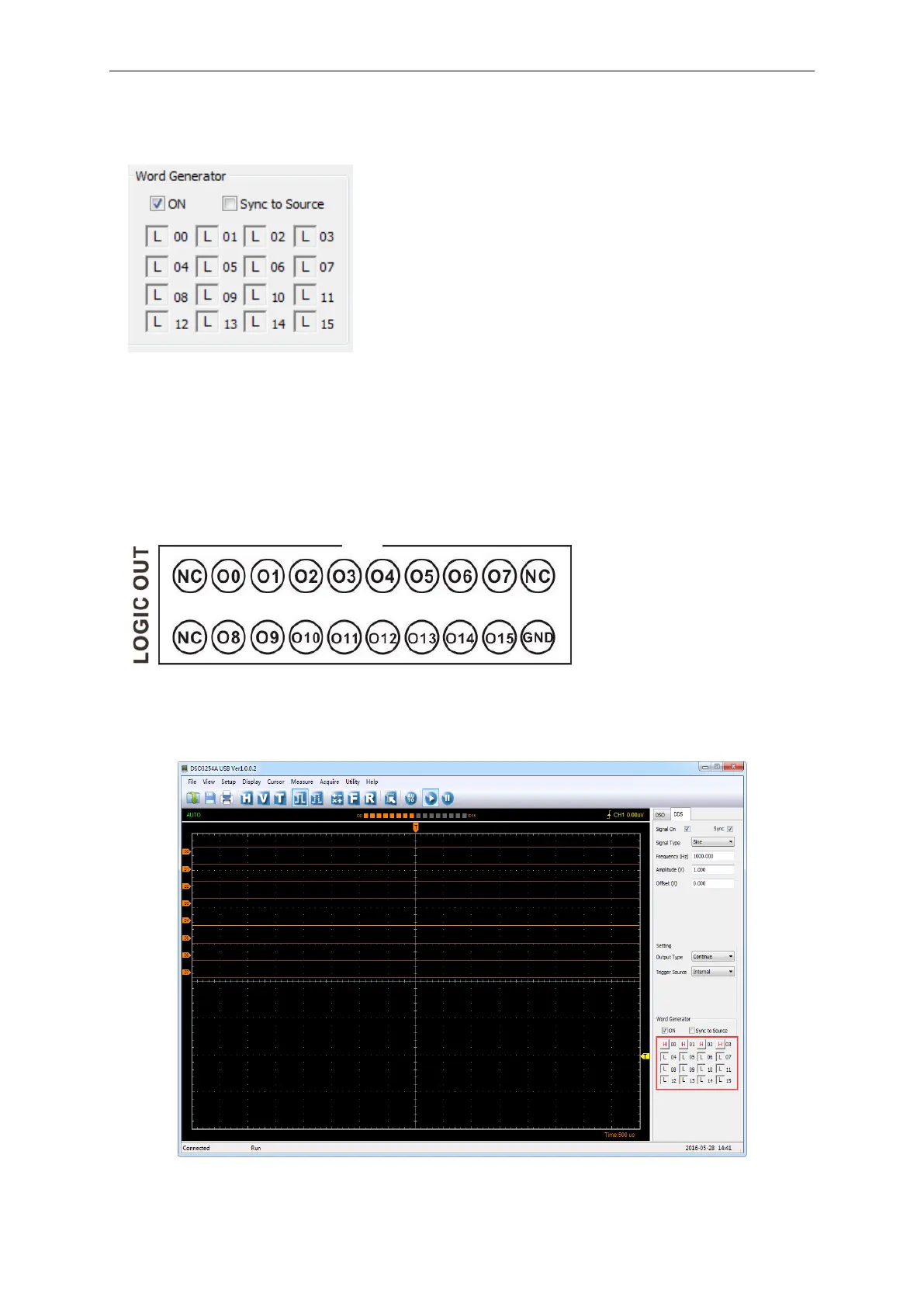

For example, set low eight to HHHHLLLL to LOGIC analyzer LOGIC IN port. The measurement
result as following figure:
