Oscilloscope Functions
USER’S MANUAL 43
There are three types of cursors: Cross, Vertical and Horizontal.
1) Cross
The Cross cursor appears as cross lines on the display and measure the vertical and horizontal
parameters.

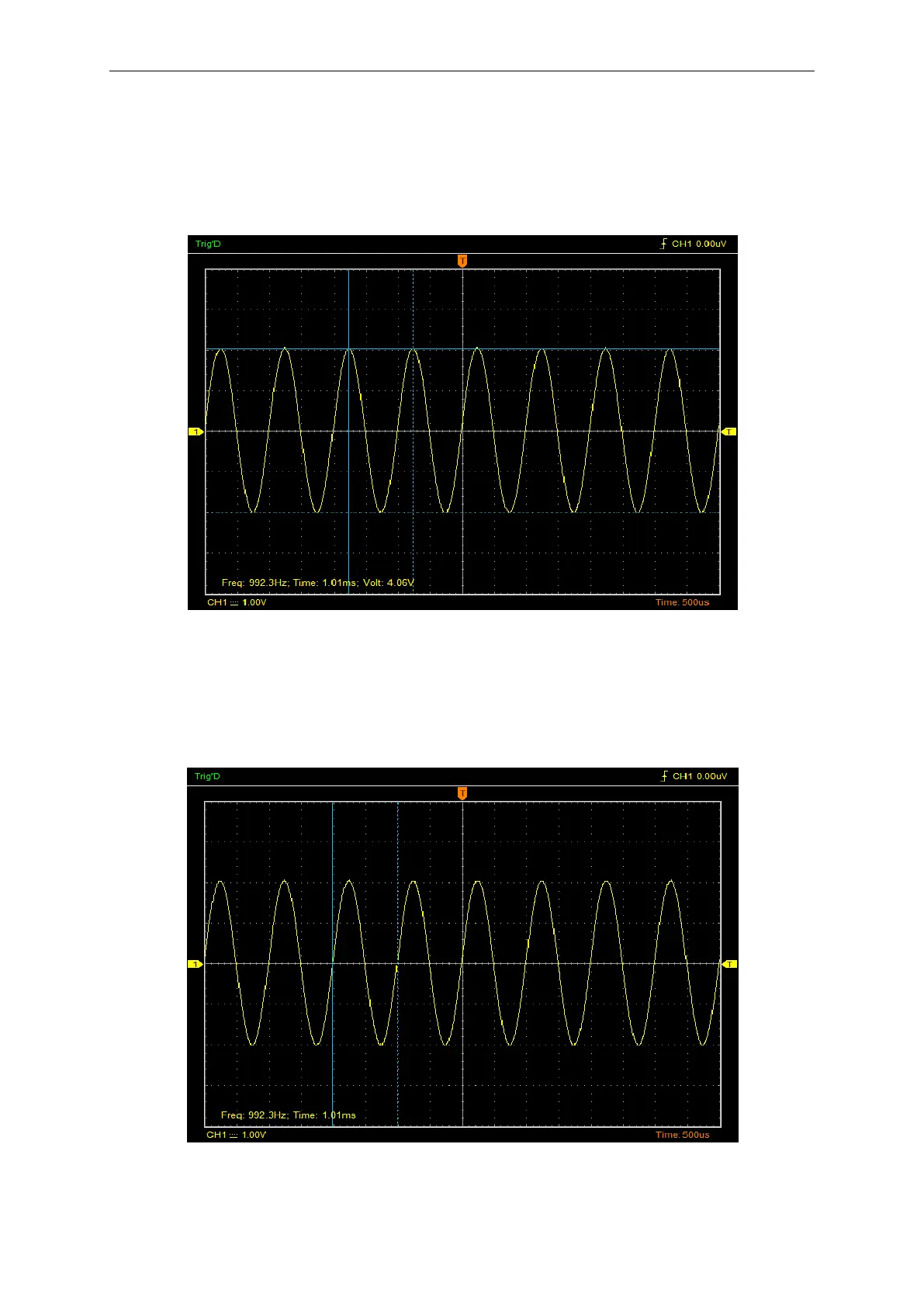

The Cross cursor display window:
2)Vertical
The Vertical cursors appear as vertical lines on the display and measure the vertical parameters.
The Vertical cursor display window:
