The default language is English.
5.4 Functionality check
Click [OSC] to enter the oscilloscope interface. Click Utility > Default in the lower left
corner of the screen to restore the oscilloscope to factory default configurations.
5.5 Probe compensation
Security
When using the probe, in order to avoid electric shock, fingers should be kept behind the
safety ring. Do not touch the metal part on the top of the probe when the probe is
connected to the high voltage power supply. Before any measurement, connect the
probe to the oscilloscope and ground the ground end.

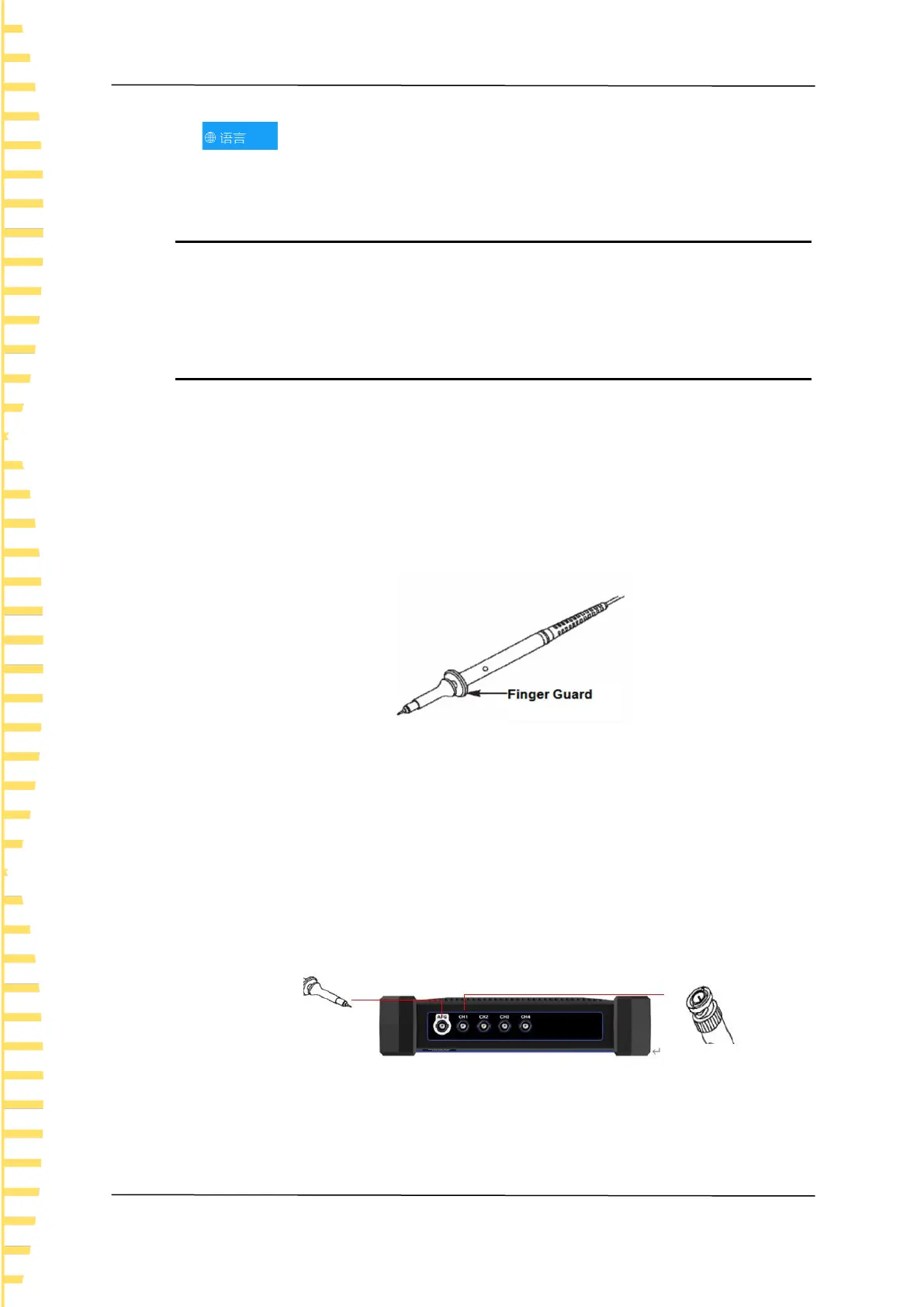

Figure 5.1 Probe51
Manual probe compensation
When the probe is connected to any input channel for the first time, perform this
adjustment to match the probe to the input channel. Probes that are not compensated or
compensated with bias can lead to measurement errors. To adjust the probe
compensation, please follow the following steps:
1) Connect one end of the probe to the CH1 channel and the other end to the AFG
channel.
2) Enter the oscilloscope interface, click Utility -> probe calibrate, and set the switch
of the probe to 10X as prompted.
