▶ Calculation function

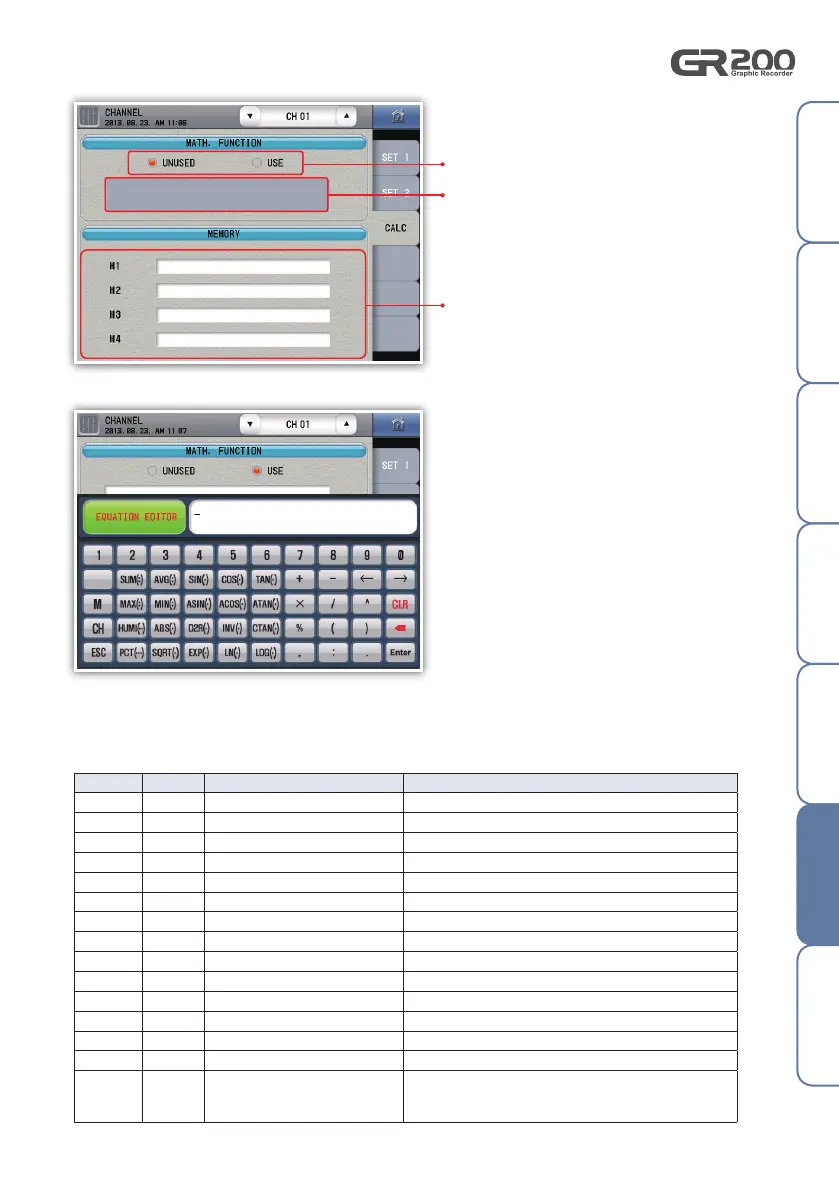

Fig. 40) Calculation function screen
Fig. 41) Calculation input screen
It is the input window of the memory formula
(up to 25 characters). 4 memory variables
may be configured and are commonly used
in the channels.
Decide whether to use the calculation function.
It is the input window of the calculation
formula. (Up to 79 characters)
[ Calculation function ]
Formula Caution Function Description
+ -
x
/
(Caution 1)
4 fundamental arithmetic calculations
-
^ - Involution -
%
(Caution 2)
Remaining calculations -
← - Move one space to the left -
→ - Move one space to the right -
CLR - Clear all -
BS -
Delete the left character from the cursor
-
ENTER - Confirm -
ESC - Cancel -
M - Select the memory variable M2
CH - Select the channel value CH2
SIN (
.
) - Sine value SIN (CH2) → The sine value of the CH2
COS (
.
) - Cosine value COS (CH2) → The cosine value of the CH2
TAN (
.
)
(Caution 3)
Tangent value TAN (CH2) → The tangent value of the CH2
MAX ( : ) - Maximum value
MAX (CH1, CH4) → Maximum value of the CH1 and the CH4
MAX (CH1 : CH4) → The maximum value between the CH1,
CH2, CH3 and CH4
