Parameter Initial value Configuration range
Protocol
MODBUS ASC
PCLINK, PCLINK+SUM, MODBUS ASC, MODBUS RTU
Baud rate 115200 9600, 19200, 38400, 57600, 115200
Stop bit 1 1, 2
Data length 7 7, 8
Parity bit NONE NONE, EVEN, ODD
Address 1 1 ~ 99 (However, up to 32 including the master)
Response 0 ㎳ 0 ~ 100 ㎳
[ Communication configuration parameter ]
▶Communication configuration

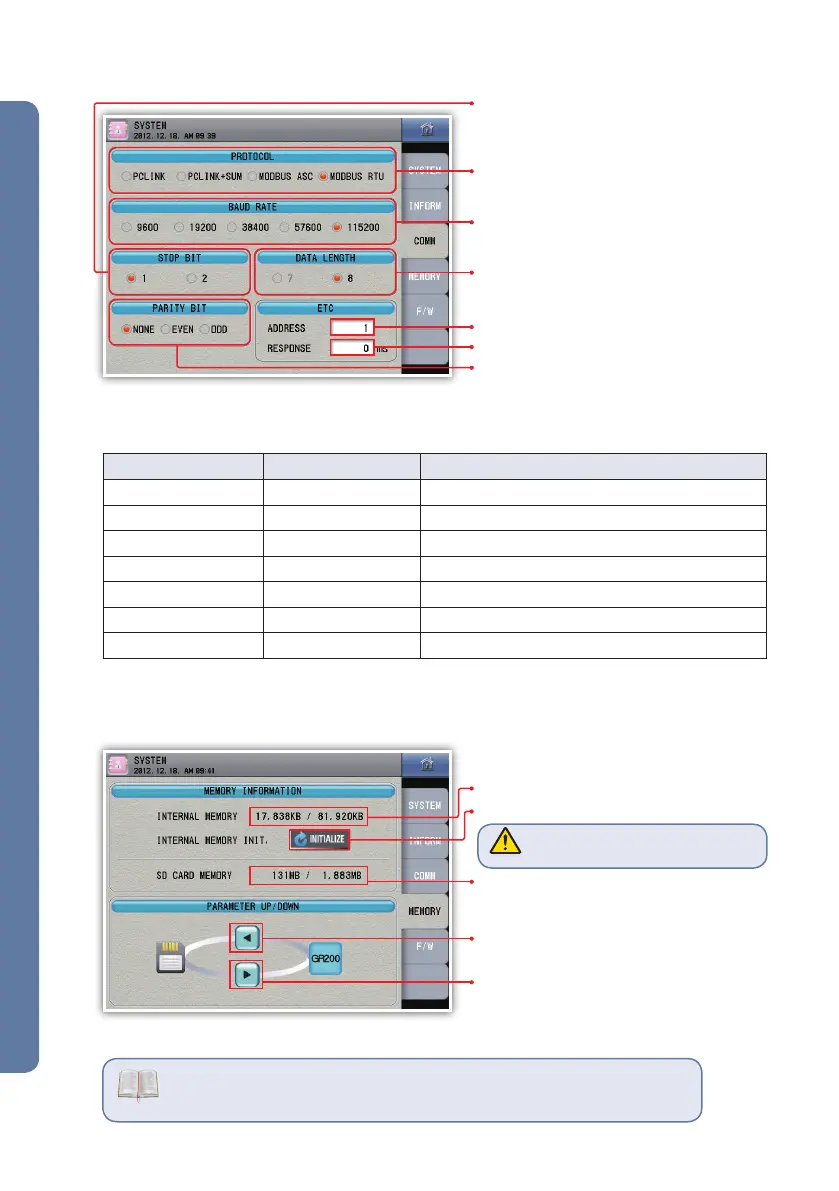

Fig. 56) Communication configuration window
Select the communication protocol.
Select the communication speed.
Select the data length.
Enter the device number.
Select the parity bit.
Enter the response time.
Select the stop bit.
▶Memory
Fig. 57) Memory screen
Display the used / total amount of the internal memory.
Upload the parameters from the SD card.
(Not work during recording)
Download the parameters to the SD card.
(Not work during recording)
Initialize the internal memory (Not work during recording)
Display the used / total amount of the SD card memory.
The saved file name has the format of "GR200_PARAMETER00.CFG". The file number increases like
GR200_PARAMETER01.CFG and GR200_PARAMETER02 and the file is created if there is a file in the
folder. The destination folder is the "GR200_CNFG" folder in the root directory of the SD card.
Reference
Transfer the data to the SD card because the
data are not restored after the initialization.
Caution
