It is the screen to enter the firmware upgrade and the test mode. It is impossible to enter the screen
during the operation. It is required to enter the password to enter the screen. (Initial password : 0)
▶Firmware upgrade

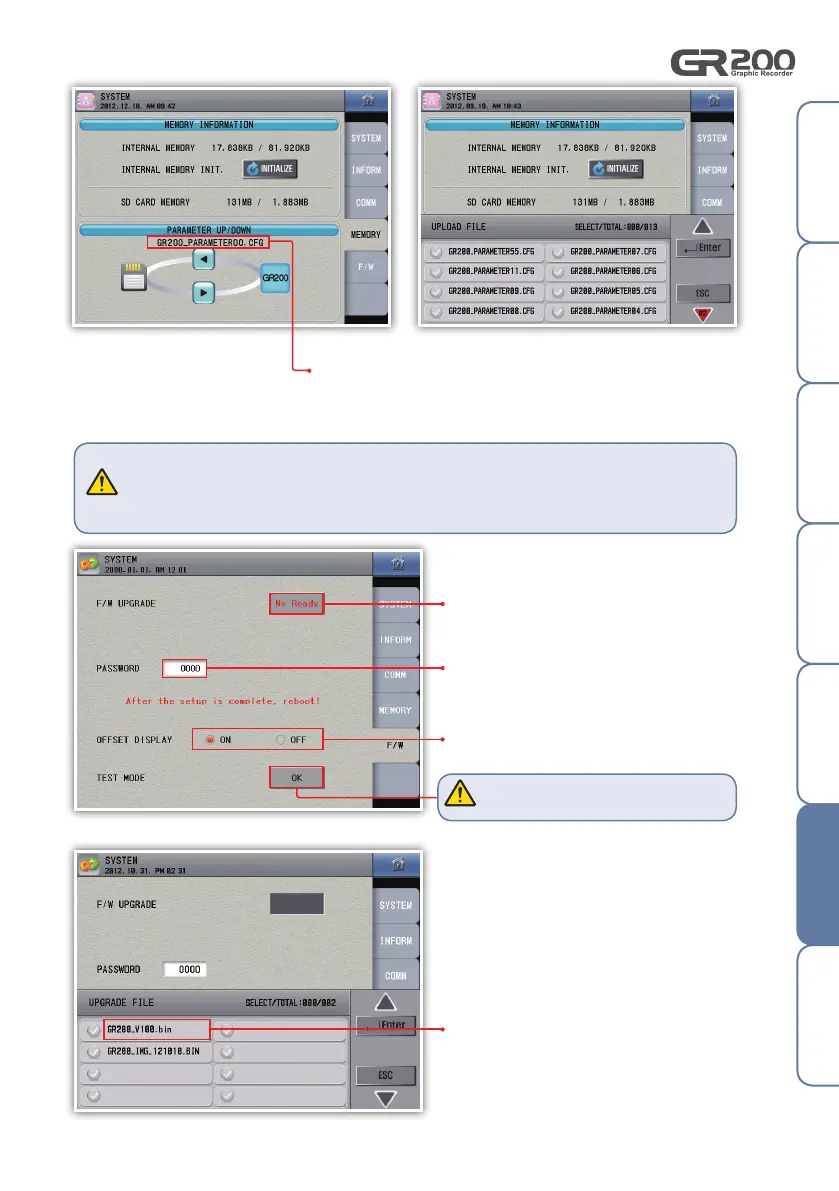

Fig. 58) Parameter download window Fig. 59) Parameter upload window
Fig. 60) F/W screen
Fig. 61) Input screen for the firmware upgrade
Enter the firmware upgrade window.
Display the upgrade file name.
Configure the password to enter the F/W
window.
•The user may not exit the screen if the user enters the screen. Please reboot the system.
• Please configure the password because the firmware upgrade required caution from the user. The initial value
is "0". Please download the upgrade file from the website of "HANYOUNG NUX". Do not change the file name
and take care to move the file to the GR200_FWUP directory, the root directory of the SD file. The parameters
are initialized after the firmware upgrade.
Caution
The test mode is one for the calibration test
before release.
Caution
Display the parameter file name created when the parameter is downloaded.
Picture 38) of channel calibration can be
expressed or hidden.
