4 - System setup
106

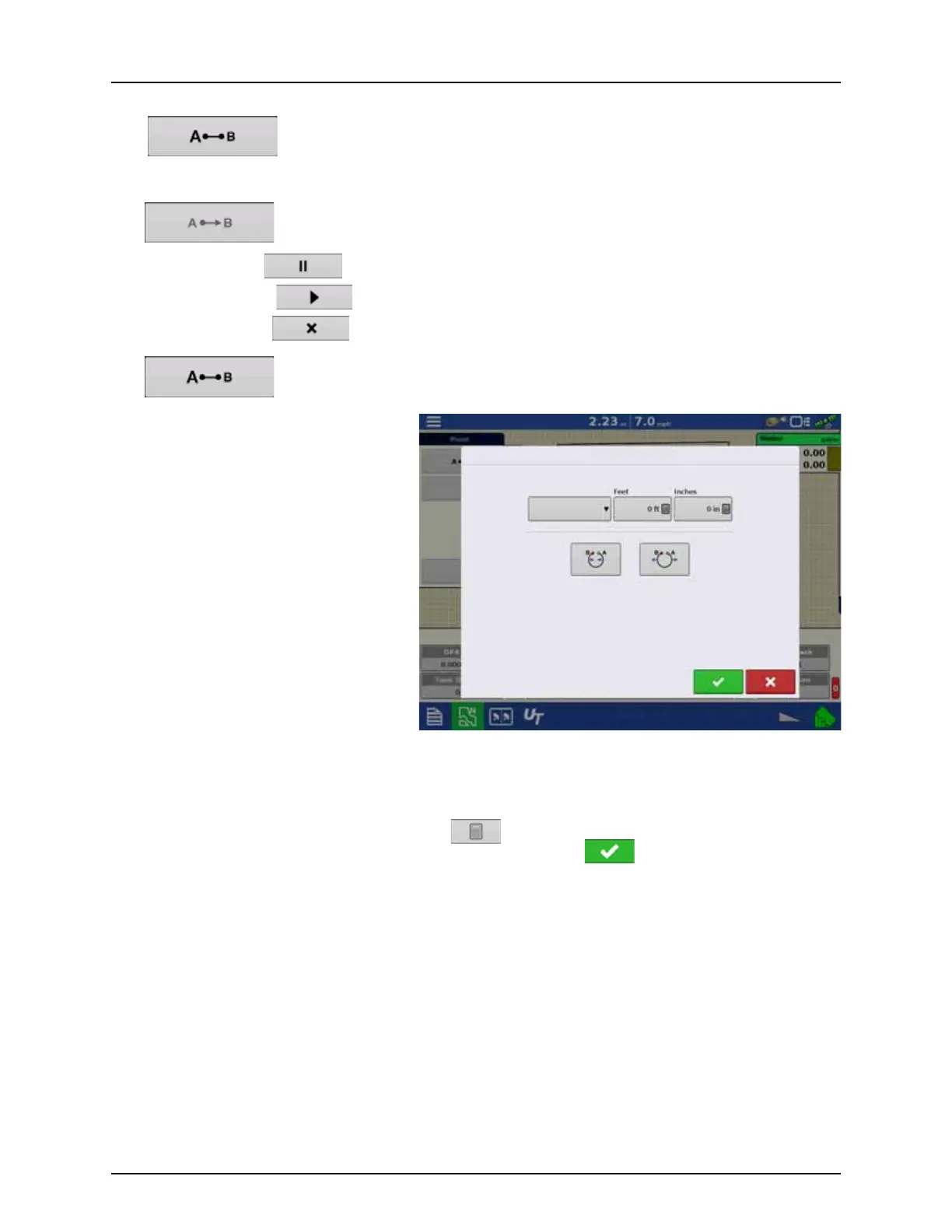

Create AB line using driven path
• Press to mark point A.
A green ball appears on the map screen where point was placed.
• Drive around the field. Keep the vehicle wheel in the rut.
• Button is grayed out until you drive a minimum of 160 feet (49 meters).
• Pause - Press to pause path during path creation.
• Resume - Press to resume path during path creation.
• Cancel - Press to cancel path during path creation.
• When you are almost back to the pivot arm or the edge of the field, press to mark point B, the
AB line appears on the map screen and point B is marked with a red ball.
1. Next, you must set the Field Edge. You may
do this when the Pivot Field Edge window
appears on your display.
From here, you may choose one of three
options:
• Shift By Distance
This sets the field edge as the distance
and direction in relation to the AB Line
created. In the Pivot Field Edge
Distance portion of the window, enter
the distance in feet and inches.
• Shift By Rows
This sets the field edge as the number
of crop rows multiplied by the
number of spacing. In the Pivot Field
Edge Distance portion of the window,
enter the Number of Rows and Row
Spacing.
• Cancel
The vehicle uses the driven pass as the AB Line.
2. If you chose Shift by Rows in the previous step, use to enter the Number of Rows and Row Spacing. Choose
the direction relative to the AB Line (either Outward or Inward), and press to continue.
3. Steer the vehicle so that you center the green lights in the lightbar as you drive forward along the path.
÷
NOTE! To work from the center of the field outwards, the initial pivot must have:
• A radius of at least two swath widths.
• An arc length of at least two swath widths.
Shift By
Distance
Inward Outward
Pivot Field Edge
Shift Pattern
To Next Page
