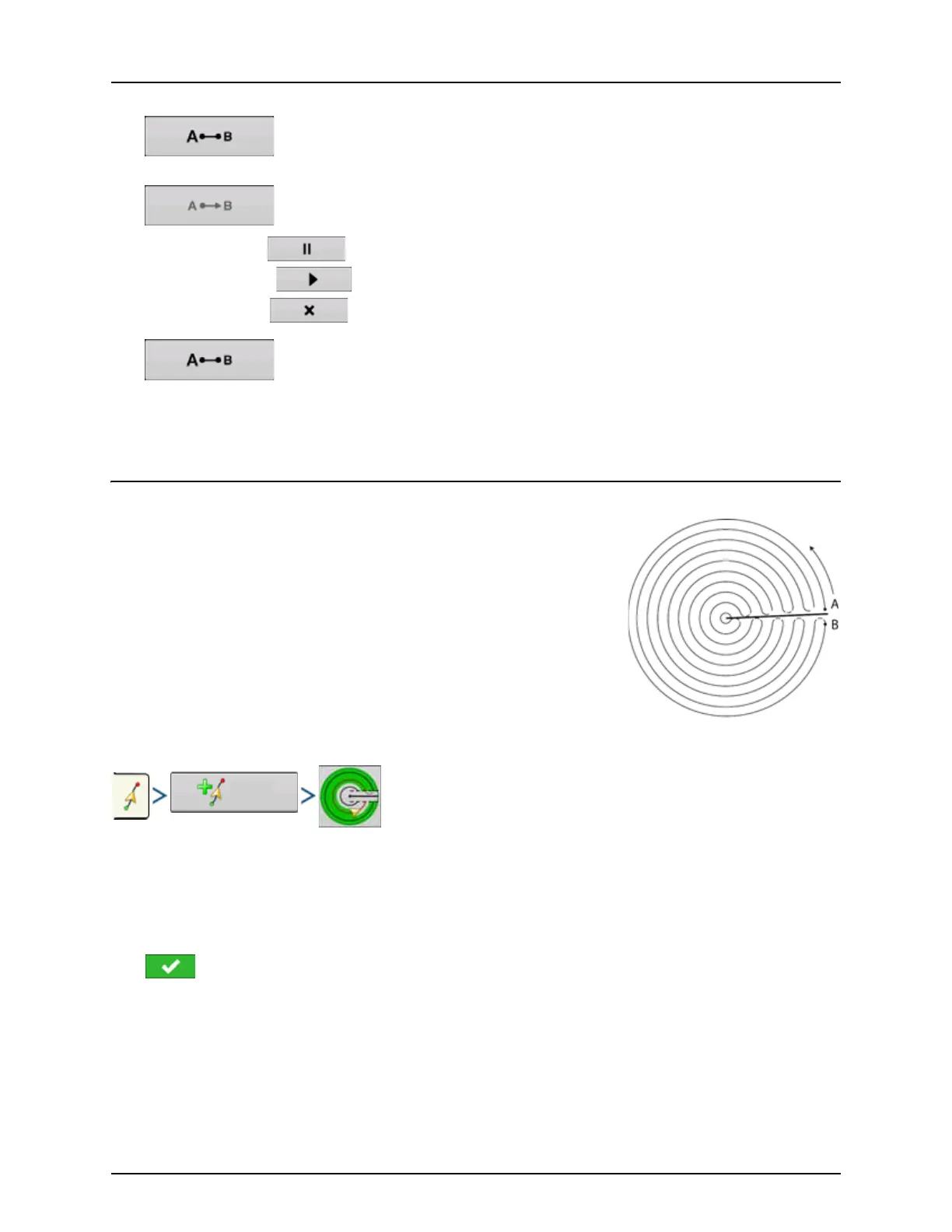

Create AB line using 2 points
• Press to mark point A.
A green ball appears on the map screen where point was placed.
• Button is grayed out until you drive a minimum of 100 feet (30 meters).
• Pause - Press to pause path during path creation.
• Resume - Press to resume path during path creation.
• Cancel - Press to cancel path during path creation.
• Press to mark point B. The AB line appears on the map screen and point B is marked with a red
ball.
Patterns are automatically saved when the vehicle turns for the first time. For more information see “AutoSave” on page 110.
÷
NOTE! Guidance extends beyond the end of curved swaths. This makes it possible to get LED guidance back onto the
swath if the vehicle drives past the end of a swath. The extended swath lines do not appear on screen.
New Pattern - Pivot
Use the Center-pivot pattern for a field that is irrigated using a center-pivot. With this
pattern, you can drive concentric circles around the center-pivot. The display will
calculate the center point based on where you have driven. Otherwise, you can enter
in the latitude and longitude of the center point, if known.
Select Pattern
System defaults pattern type to last used. Press the pattern icon to select a different pattern.
• Implement Width (from Implement Setup)
• Guidance Width input box
• Manual Entry checkbox and Latitude and Longitude input boxes
Press to accept. You will automatically return to the Map screen.
