3 - Description
3.2
View
Identification plates
An identification plate fitted on the frame indicates producer name,
model and serial number.
Frame, boom center frame and other main steel components have
i
dentification plates indicating type and part number. (not illustrated)
REFERENCE NO: is the main reference number of the complete machine

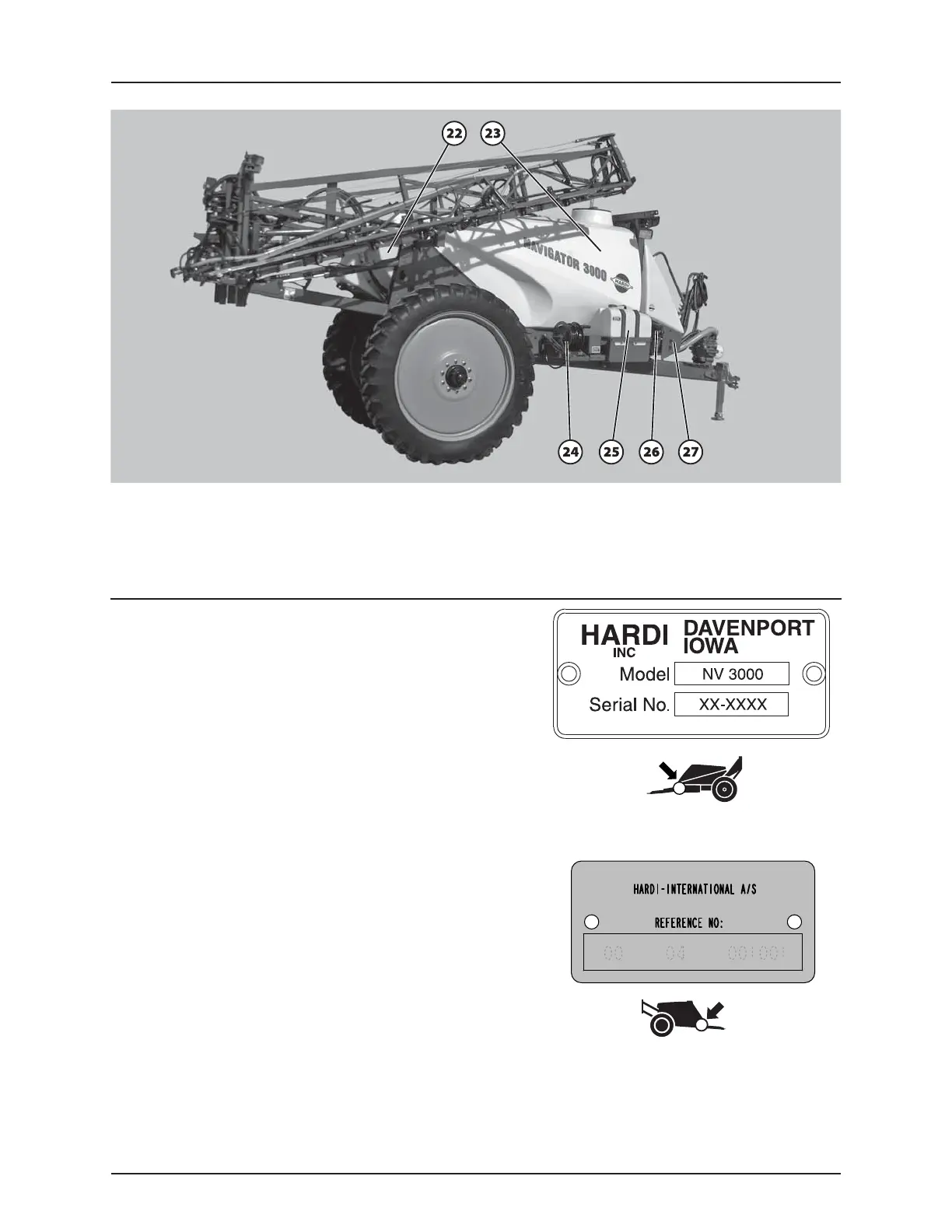

22. Flush tank
23. Main tank
24. Hose reel for External Cleaning Device
25. ChemLocker with FoamMarker tank
26. CycloneFilter
27. Suppor t jack s toring position
