Hardi NAVIGATOR 3500 Instruction Book

3 - Description
3.5

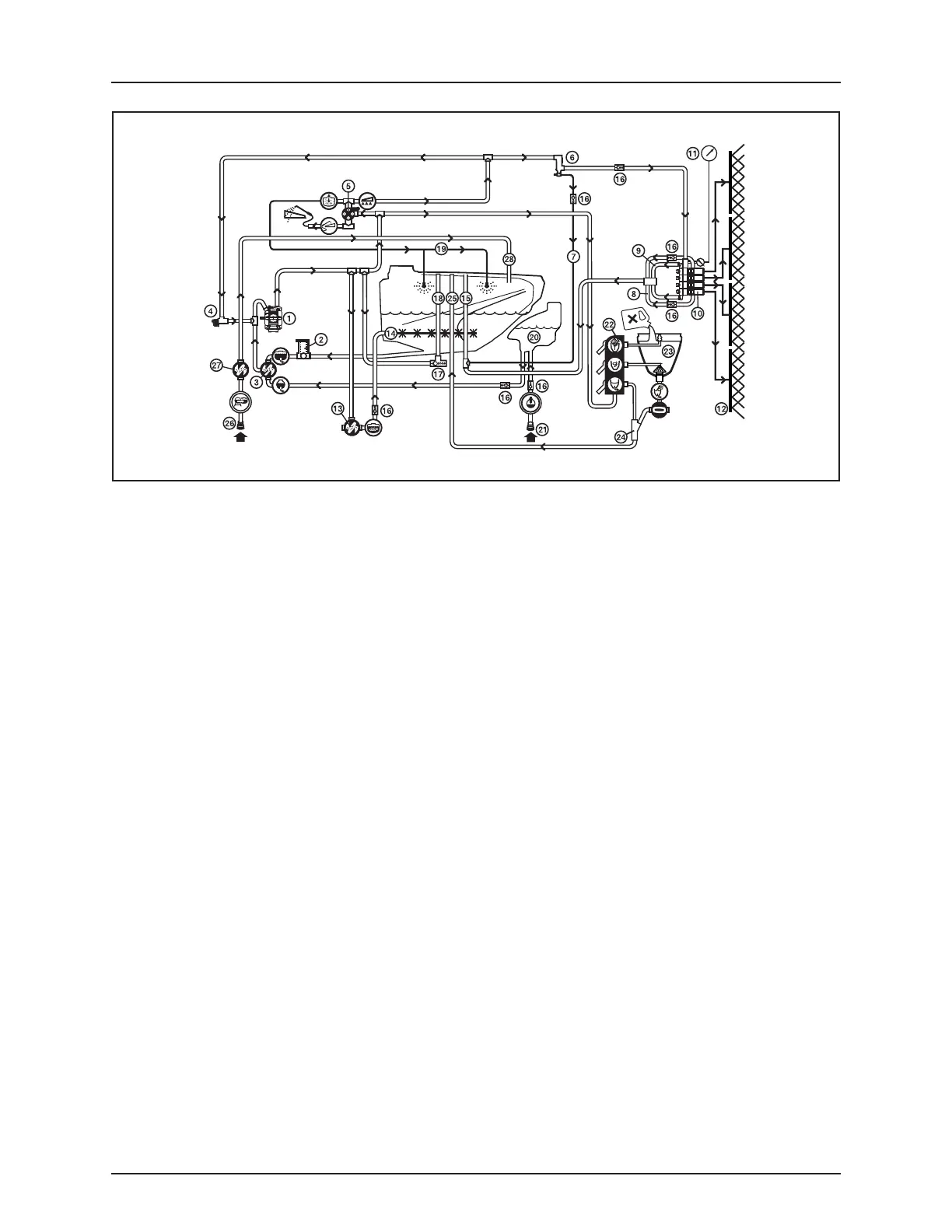

Diagram - Diaphragm Liquid system with optional extras
1. Pump
2. EasyClean filter
3. Suction Valve Main tank/Flush Tank
4. Pressure control valve
5. Pressure Smar tValve
6. CycloneFilter
7. Return line for boost function
8. Return pressure drop
9. Return pressure equali
zation
10. Distribution valves
11. Pressure gauge
12. Spray boom
13. Agitation valve
14. Agitation tube
15. Tank tube for return lines (riser pipe)
16. One-way valve
17. Safety valve
18. Tank tube riser pipe
19. Tank rinsing nozzles
20. Flush Tank
21. Flush Ta
nk Quick Fill coupler
22. Valve block TurboFiller
23. TurboFiller
24. Ejector for TurboFiller
25. Tank tube for Turbofiller
26. Main Tank Quick Fill coupler
27. Main Tank Quick Fill valve
28. Main Tank Quick Fill hose to tan
k inlet
