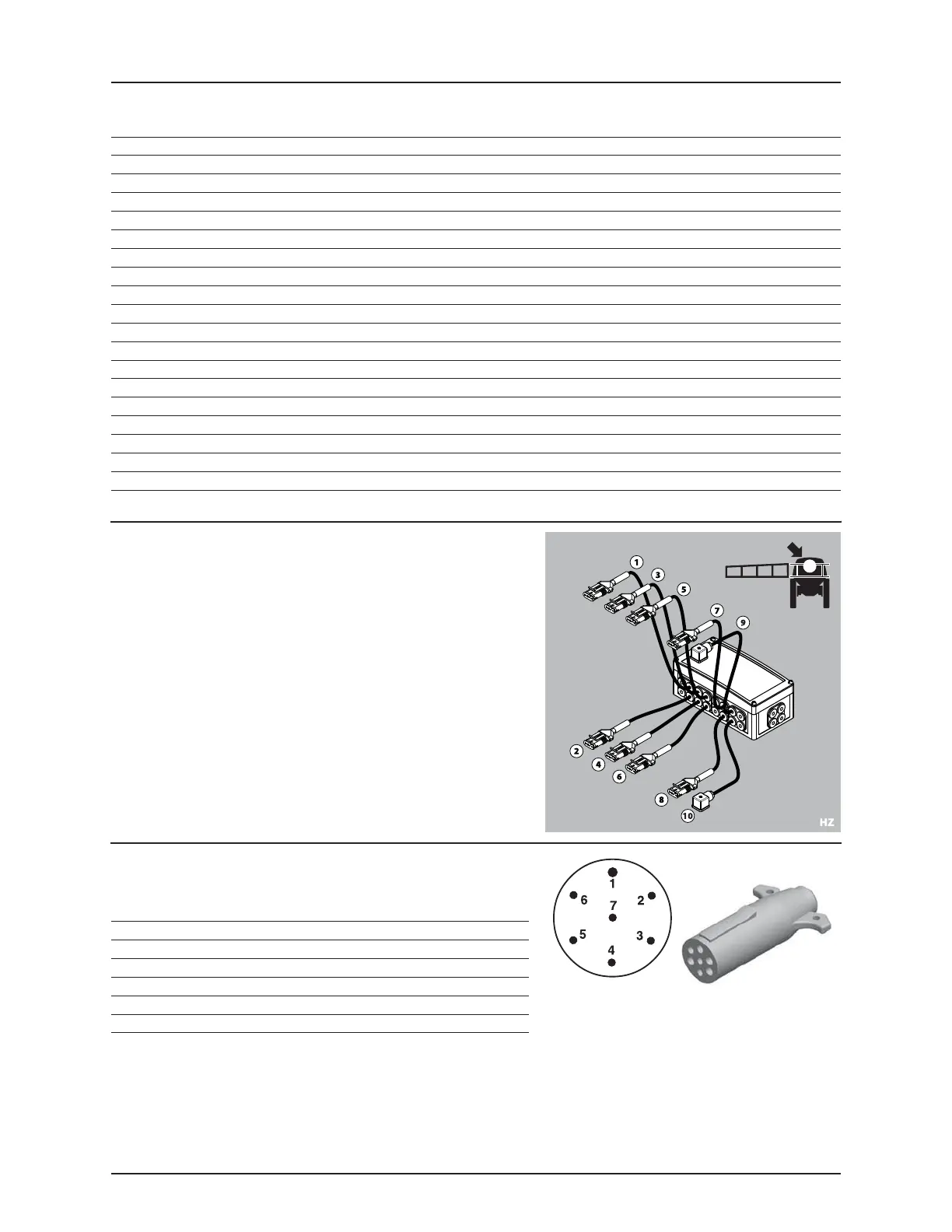

Hardi NAVIGATOR 3500 Instruction Book

8 - Technical specifications
8.8
Plug positions for HZ hydraulics
1. Fold left
2. Fold left
3. Tilt left down
4. Tilt left up
5. Tilt right down
6. Tilt right up
7. Fold right
8. Fold right
9. (B) flow reverse
10. (A) flow forward
Road traffic lights
The wiring is in accordance with ANSI/ASAE S279.11.
HC 5500 Function +Sig. -
Opt 1 Pressure sensor Brn Blu -
Opt 2 RPM sensor or anemometer Brn Blu Blk
Speed Brn Blu Blk
Flow Brn Blu Blk
L end nozzle Pendulum lock at HAY/LPY Brn Blu
R endnozzle Pendulum lock at HAY/LPY Brn Blu
Reg (Yellow) Brn Blu
Bypass EC on/off Brn Blu
Sec 9 User defined A&B 2
xx
Sec 8User defined A&B 1 xx
Sec 7 Twin speedBrn Whi
Sec 6 Twin angle YelGre
Sec 5 Brn Blu
Sec 4 Brn Blu
Sec 3 Brn Blu
Sec 2 Brn Blu
Sec 1 Brn Blu
GndL R - +
Foam marker No. 4 Not used 265 13
Position Wire color
1. GroundWhite
2. Work lamps Black
3. LH flashing & turn indicator Yellow
4. Free Red
5. RH flashing & turn indicator Green
6. Free Brown
7. Free Blue
