4 - Sprayer setup
4.5
Mechanical connections

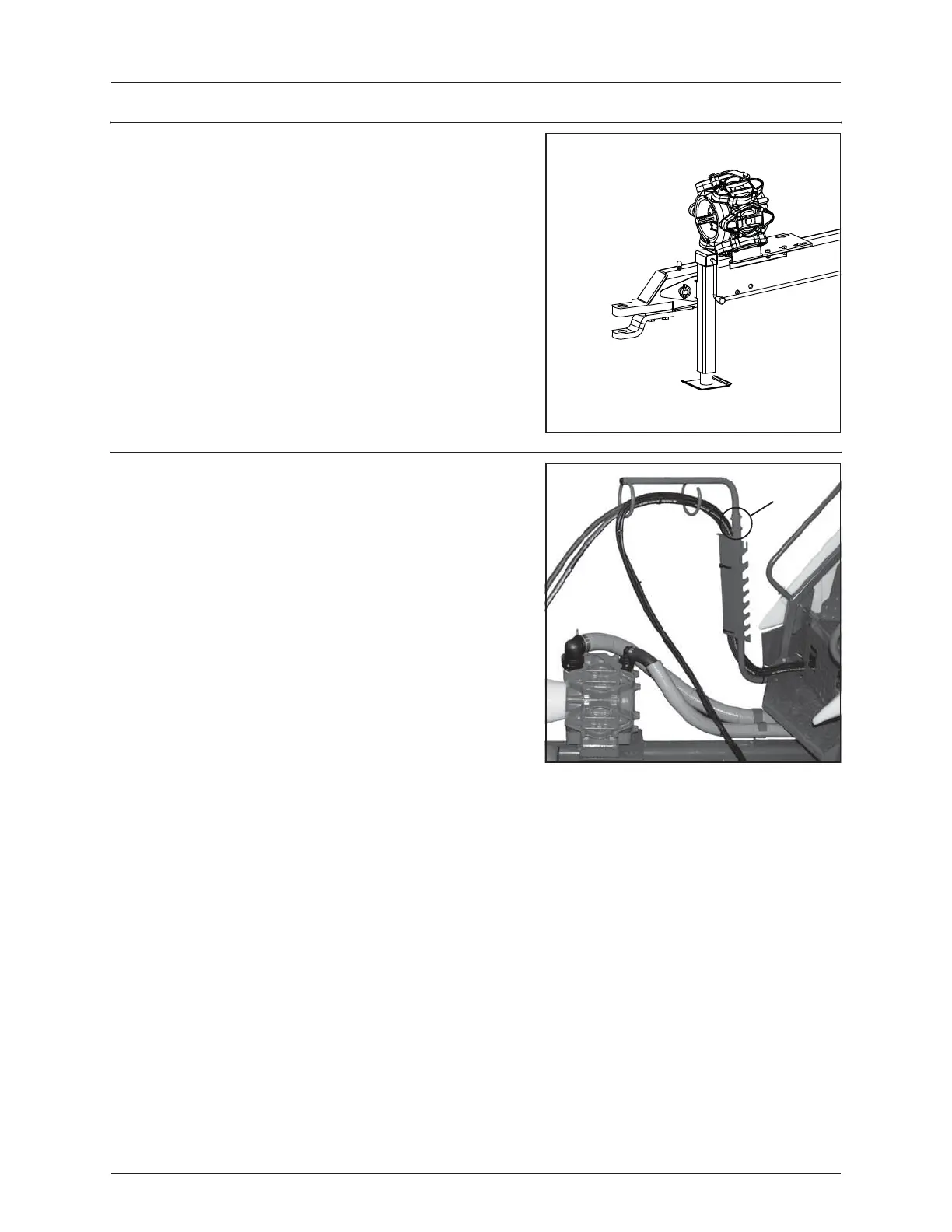

Hitch - adjustment
The Navigator is equipped with a clevis hitch. The lower plate is attached
with two bolts and may be removed if needed. No other adjustment is
possible.
Swivel hose support
To prevent hoses and wiring from being damaged by the tractor wheels,
P. T . O . shaft etc. all hoses, cables and wires are held by the hose bracket
fitted to the sprayer platform. Check that the length of the hoses and
cables are suff
icient by tight turns.
There are two bolts (A) that can be changed to adjust the swivel hose
support. By removing the bottom bolt, the hose support is free to swivel
as the sprayer turns. The top bolt can be
placed in one of three holes to
vary the height of the support.
A
