4 - Sprayer setup
4.4

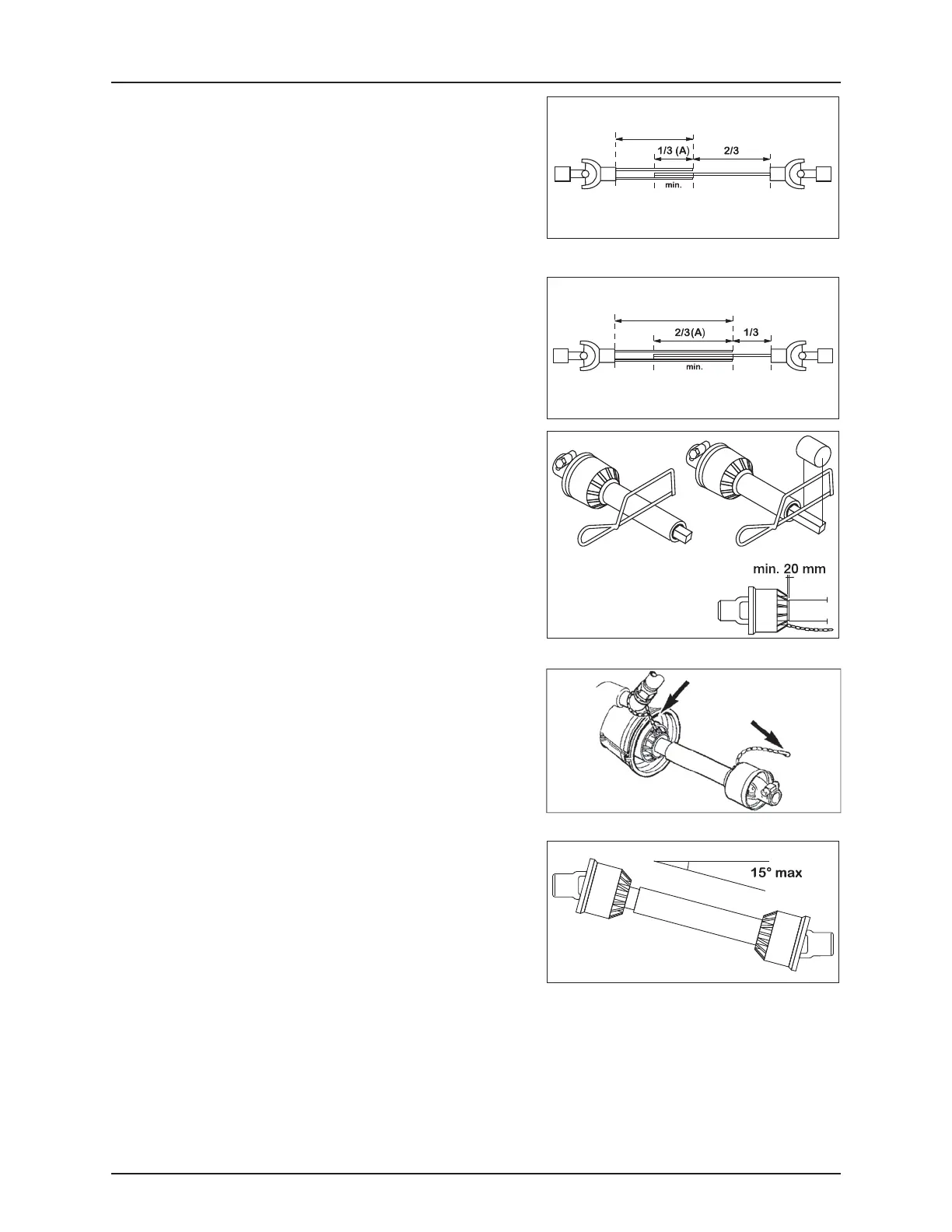

Pump with 6 splines/540 r.p.m.
The shaft must always have an overlap (A) of minimum 1/3 of the length.
Pump with 21 splines/1000 r.p.m.
The shaft must always have an overlap (A) of minimum 2/3 of the length.
4. The two parts are s
hortened equally. Use a saw, and file the profiles
afterwards to remove burrs.
5. Grease the profiles and assemble male and female parts again.
6. Fit the shaft to tractor P. T. O . a nd sprayer pump shaft.
ATTENTION! Female part marked with a tractor towards tractor!
7. Fit the chains to prevent the protection guards from rotating with
the shaft.
8. To ensure long life of the transmission shaft, try to avoid workin
g
angles greater than 15°.
