6 - Maintenance
6.9

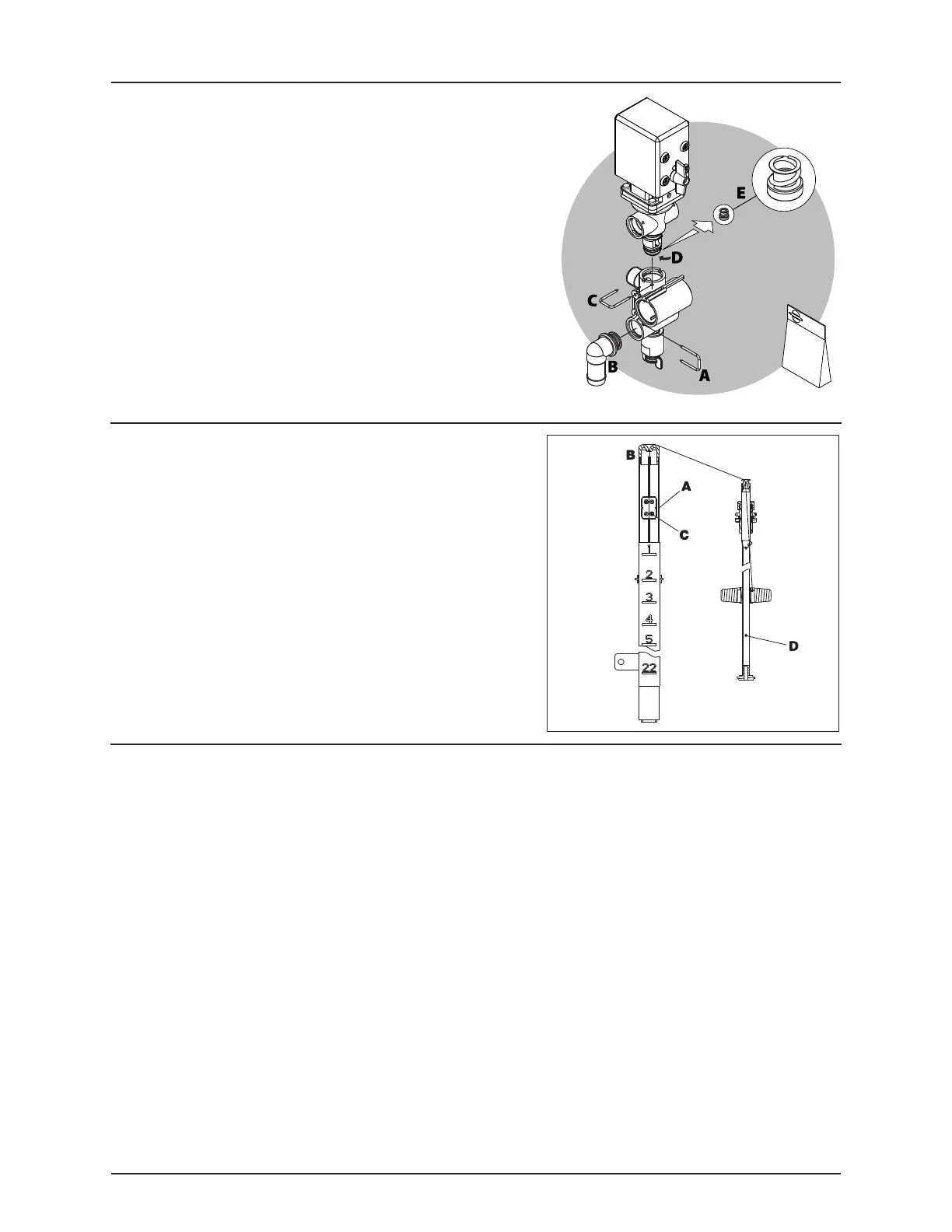

Cone check/replacement for EVC distribution valve
Periodically check the distribution valves for proper sealing. Do this by
running the sprayer with clean water and open all distribution valves.
Cautiously remove the clip (A) and pull
out the hose (B) for the return
line. When the housing is drained, there should be no liquid flow
through the return line. If there is any leakage, the valve cone (E) must
be changed. Remove the clip (C) and lift the mot
or housing off the valve
housing. Then unscrew the screw (D) and replace the valve cone (E).
Reassemble in reverse order.
Level indicator adjustment
The level indicator reading should be checked regularly. When the tank
is empty, the float should lie on the stop pin (D), of the rod, and the O-
ring on the indicator should be posi
tioned at the top position line (A).
If any deviation is found, pull out the plug (B), loosen screws (C), an d
adjust the length of the cord.
Level indicator cord replacement
If the cord on the level indicator has to be changed, the float guide pole is removed:
1. Remove the tank drain valve (see paragraph “Drain valve seal replacemen
t”) and loosen the fitting holding the pole in
position.
2. Pull the pole down through the drain valve hole till it is free in the top of the tank.
3. The pole can now be taken out of the tank through the
filling hole.
€
DANGER! Do not enter the inside of the tank - the parts can be changed from the outside of the tank!
