Hardi NAVIGATOR 3500 Instruction Book

3 - Description
3.9

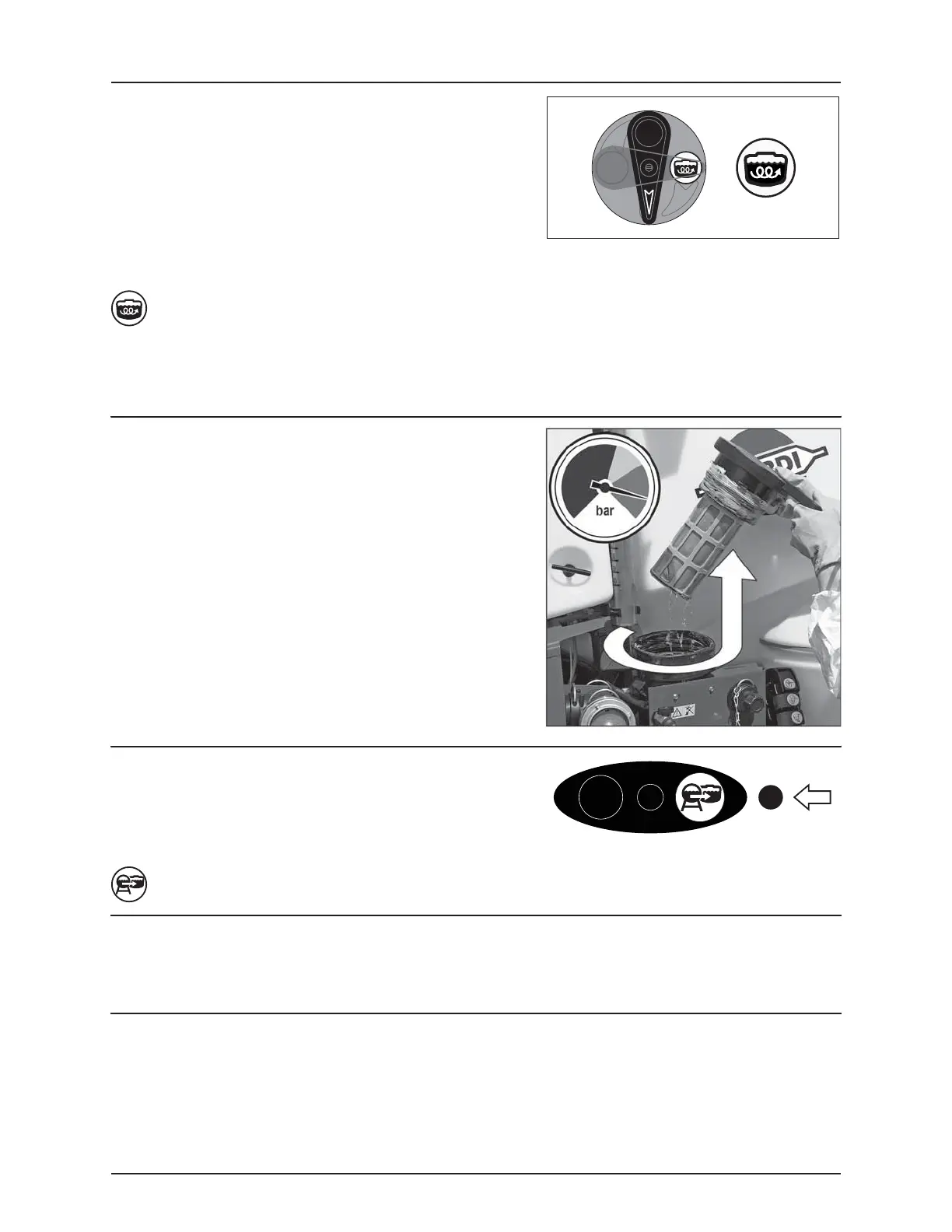

Agitation valve
With the adjustable Agitation valve it is possible to combine spraying
with a high volume rate at high pressure with agitation at the same time.
This is controlled continuously by the valve: The valv
e is marked with an
arrow on the disc that indicates the amount of liquid that passes
through the valve. If the handle is turned to a position near the tip of the
arrow, then only a small amount of liquid is allowed t
o pass the valve
resulting in less agitation. Otherwise, if the handle is turned to a position
in the wide end of the arrow, then a large amount of liquid will pass the
valve resulting in a more agitation.
EasyClean filter
The EasyClean filter is fitted in the working zone. It has a built-in valve
that automatically closes when the filter is opened for inspection and
cleaning. To open filter, turn it coun
terclockwise and pull it up, like
shown on picture.
Beside the spray pressure gauge on the platform, an EasyClean clogging
indicator is located.
Green indicator: No cleaning necessary.
Yellow in
dicator: It is possible to finish an ongoing spraying job and then
clean filter afterwards.
Red indicator: Clean EasyClean filter immediately, as filter is clogged.
Main tank Quick Fill valve (optional equipment)
This valve is used when filling the main tank from an external water
supply (i.e. overhead fill tank). Activating valve starts/stops the filling
process when a pressuriz
ed filling hose is attached to the main tank
Quick Fill coupler.
EVC control unit
EVC - Electrical Valve Control. The ON/OFF is linked to the section valves, which results in a very quick response to ON/OFF.
The operating unit is of modular design and is electrically controlled via a rem
ote control box. The unit has a built-in HARDI
MATIC.
Flush tank (optional equipment)
A flush tank can be mounted to the rear of the sprayer. Tank is made of impact-proof and chemical resistant polyethylene.
Nominal content: appr. 130 gal (500 liters).
Adjustable Agi
tation
Quick Fill from external tank
