Hardi NAVIGATOR 3500 Instruction Book

3 - Description
3.8

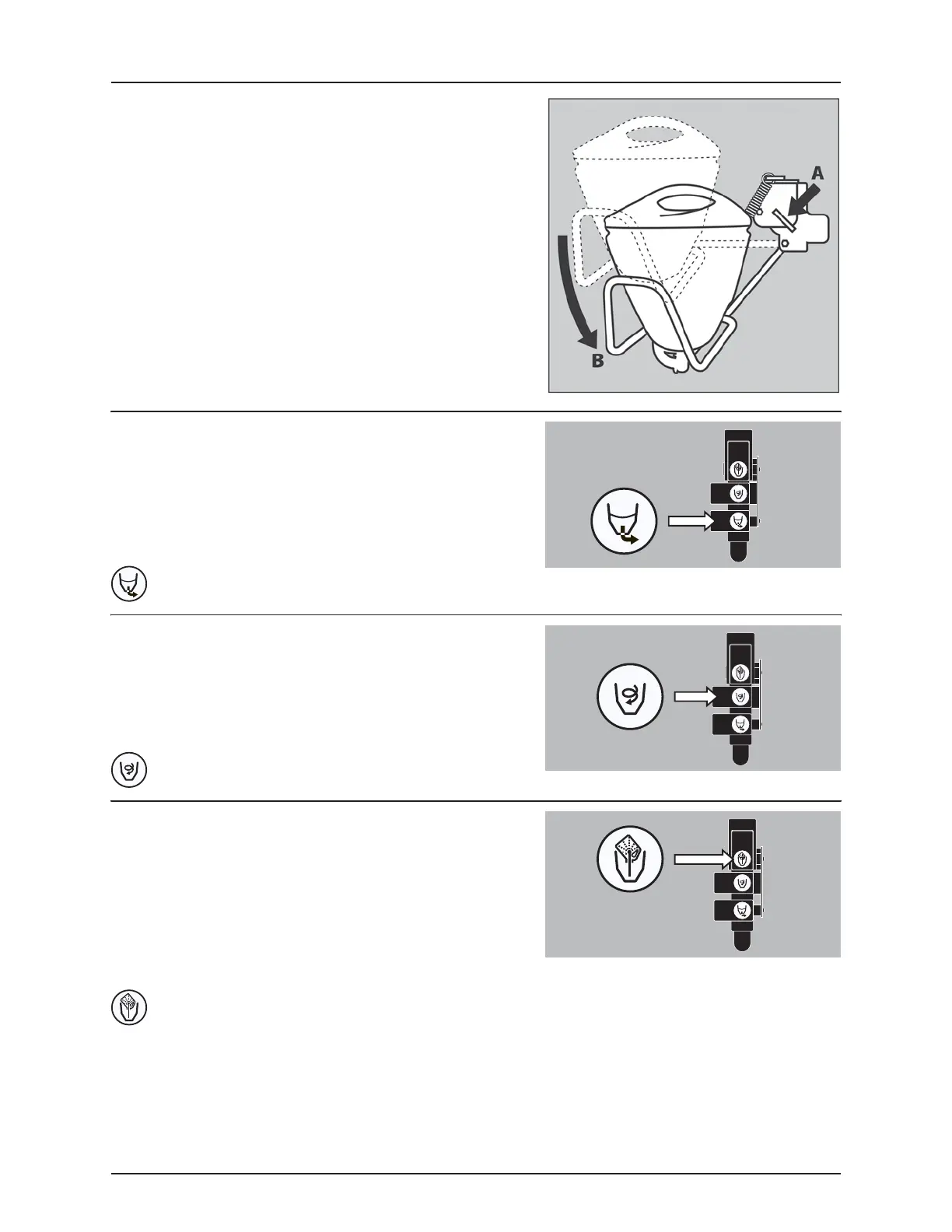

TurboFiller (optional equipment)
The TurboFiller is situated in the working zone on the sprayer’s left side.
When being used, it should be unlocked by pulling the han dle (A)
(situated to the right of th
e TurboFiller) and pushed down (B) by
grabbing the handle on the TurboFiller until it clicks into the locked
down-position.
After use, the Tur bo Filler is retracted by unlocking th
e handle (A)
(situated to the right of the TurboFiller) and pulling it back up until it
clicks into the locked storing position.
±
WARNING! Before releasing the lock (A) always keep a hand on
the grip to avoid abrupt movement of the TurboFiller!
TurboFiller suction valve (optional equipment)
The valve is used simultaneously with the TurboFiller. The valve is the
lowest valve situated to the left side of the TurboFiller and is activated in
two ways. Push th
e valve lever down to get a quick suction out of the
hopper. Lift the lever to lock it in the open position for continuous
suction from the hopper into the main tank. Open the valve when
che
micals are going to be filled into the TurboFiller.
TurboDeflector valve (optional equipment)
This TurboDeflector valve activates the Vortex flushing of the TurboFiller.
The valve is the middle valve situated to the left side of the TurboFiller
and is activat
ed in two ways. Push the valve lever down to get a quick
flush in the hopper. Lift the lever to lock it in the open position for
continuous liquid rotation in the hopper.
Chemical container cleaning lever (optional equipment)
The upper lever located to the left of TurboFiller is used for two
purposes:
When TurboFiller lid is open: For cleaning empty containers. Put
container
over the rotating rinsing nozzle in the middle of the
TurboFiller to rinse inside of the container.
When TurboFiller lid is closed: Use the Chemical Container Cleaning
lever to rinse the hopper aft
er filling of chemicals has ended.
€
DANGER! Do not press lever unless the multi-hole nozzle is covered by a container or the TurboFiller lid is closed to
avoid spray liquid hitting the operator.
Filling chemicals without
TurboDe
flection
Start TurboDeflector
Chemical container cleaning
