Hardi SMARTCOM ISOBUS UT SW A.2.2 Series User Manual

3 - Description
29

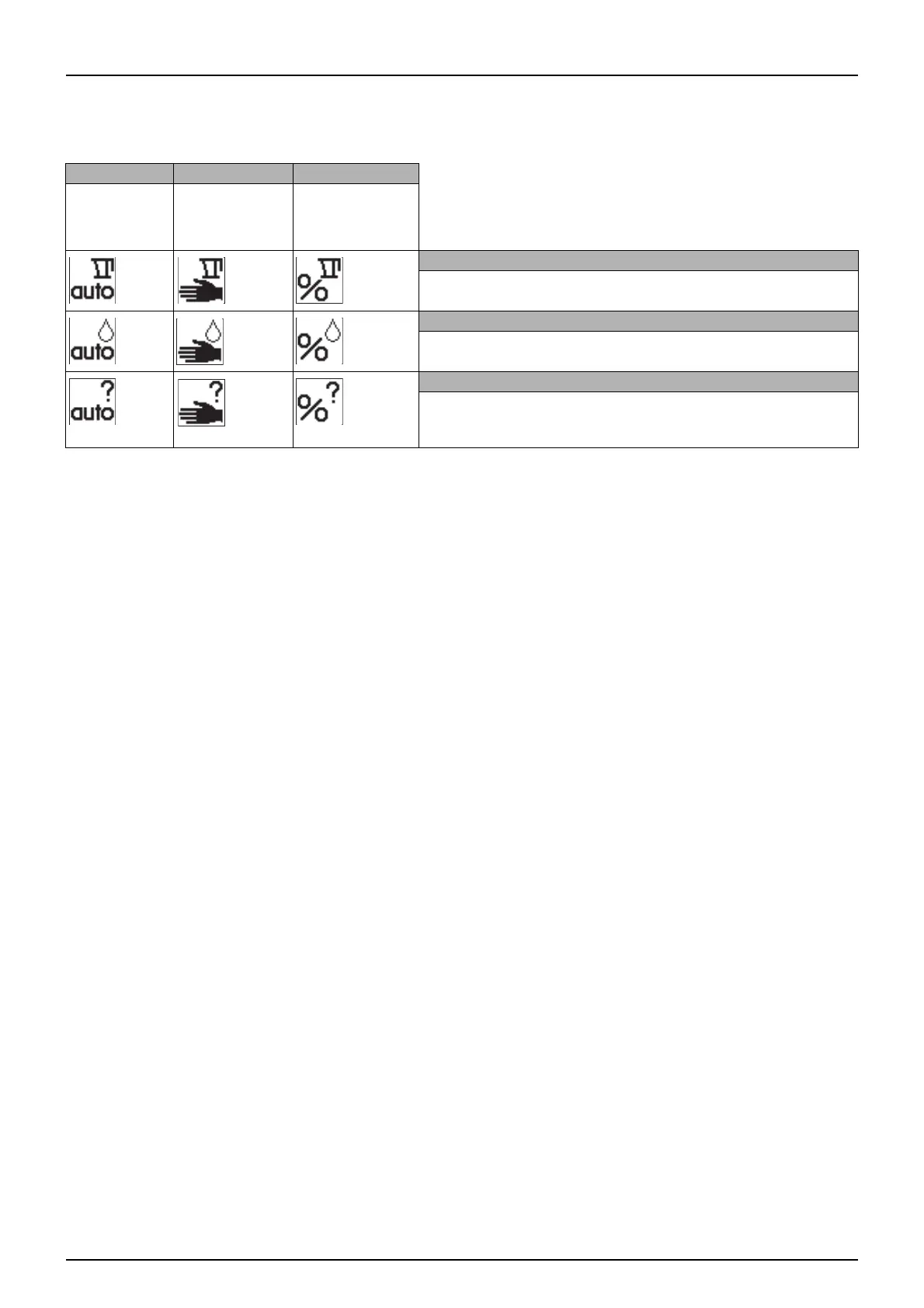

Screen Icons
The sprayer driver selects one of three modes Auto, Manual or Increment steps. The sprayer computer detects one of three
regulation modes Drop, Question Mark or Calibration Jug. This makes 9 modes in total.
Auto Manual Increment Steps
When Automatic
Volume Rate button
is pressed on the
SetBox.
When one of the
Manual pressure
control buttons is
pressed on the SetBox.
When the Volume Rate
is changed in steps with
%-up or %-down
buttons on the Terminal.
Calibration Jug Sign
There is flow to section valves.
Nozzle size (L/min at 3 bar) has been calculated.
Drop Sign
There is no flow to section valves.
The pump is not started or the pressure SmartValve is set to other function than spraying.
Question Mark Sign
There is flow to section valves but pressure and flow has not yet been stable, therefore
the nozzle size (L/min at 3 bar) has not been calculated.
The system uses the previously stored nozzle size.
