DilutionKit
Some sprayers are equipped with DilutionKit as an option. The DilutionKit offers two ways to dilute the sprayer contents.
÷
NOTE! The dilution kit is NOT a rinsing device. For rinsing the sprayer, please refer to “Cleaning” in the sprayers
instruction book for proper cleaning procedure.
TankDilution
Used when the MainTank is empty, to dilute the residual spray-liquid before returning to the farm for refilling.
BoomDilution
Used when a spray job is interrupted.
Before returning to the farm, diluting the boom is necessary to prevent deposits of spray-liquid settling in the boom, which
could then block the nozzles.
μ
ATTENTION! Refer to the sprayers instruction book for further explanation of the DilutionKit system.

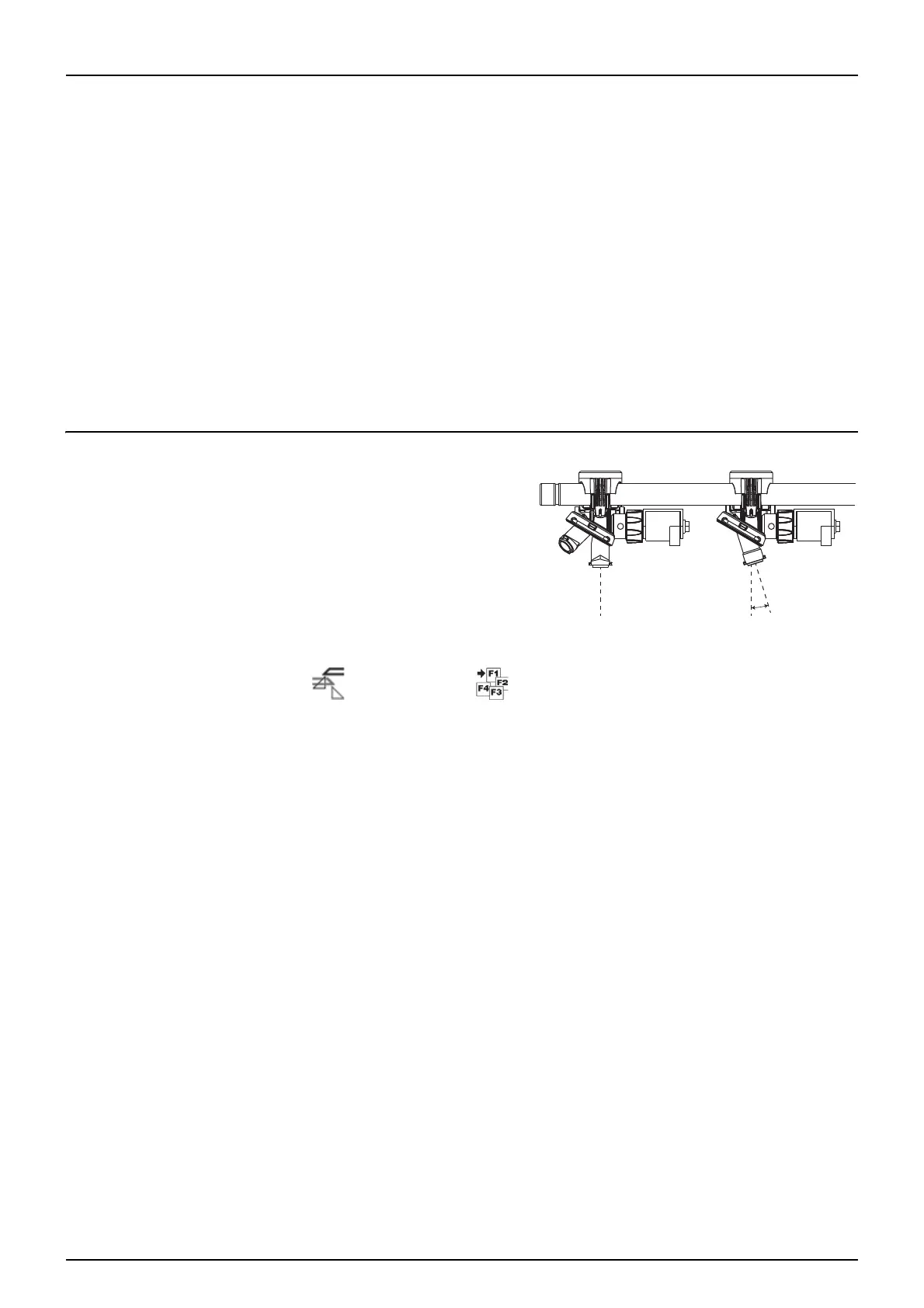

End Nozzles
A conventional boom which is spraying 50 cm outside the boom
structure, can be upgraded with the borderline end nozzle kit. The end
nozzle kit provides an extra nozzle on a nozzle tube which is angled 17
degrees inwards.
Using the angled nozzle holder can a standard flat fan nozzle be used as
a borderline nozzle keeping the spray fan within the end of the boom
structure.
• Use same nozzle for end nozzles as used for the other nozzles.
• No setup required in the controller.
• Turn end nozzles ON/OFF in the menu (submenu in ).
• When the end nozzles are active, it will be shown in the display with separate icons in the ends of the boom line.
÷
NOTE! It is important that the volume applied from the end nozzle matches the volume applied under the boom. This
is a comparison of volume per minute per length. (Litre/Min/metre).
17°
