3 - Description
61

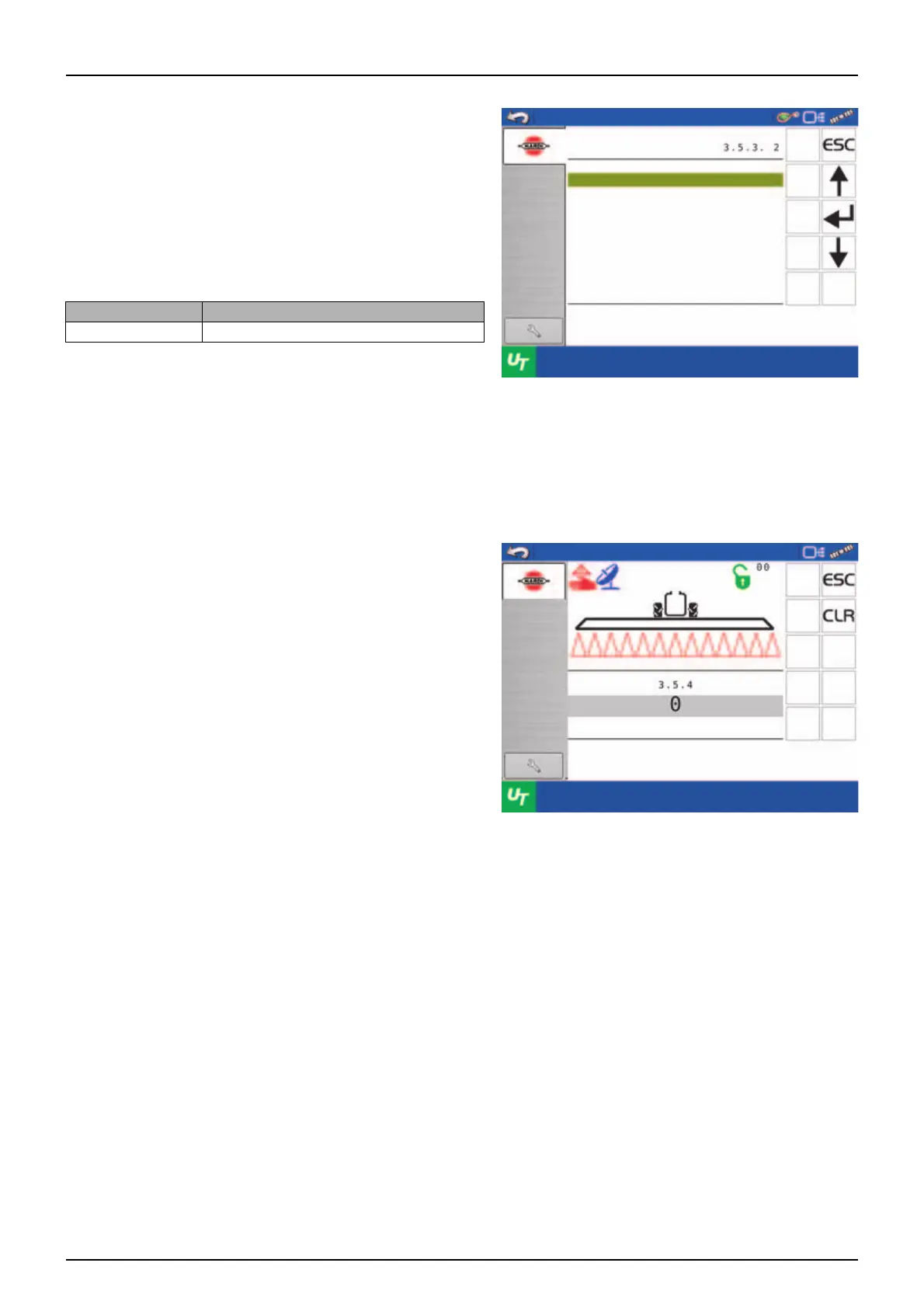

Menu 3.5.3 Select factory calibration
This menu may have been set up by your HARDI service centre. See
“Menu 3.5.4 Offset at empty main tank” to check if empty.
The prerequisites for accuracy of the TankGauge, when selecting
the factory calibration is:
• Level sprayer; When mounted to the tractor then the sprayer
should be level.
Check if level by placing a level on the frame of the sprayer as
follows:
Height of hitch point when mounted to tractor:
The height of hitch point measured from the ground should be
550 mm. Measure of tank contents changes with the height of the hitch point.
μ
ATTENTION! If one of the prerequisites are not fulfilled, then refer to “Custom Calibration of TankGauge” on page 73
to make a custom calibration of the TankGauge.
Menu 3.5.4 Offset at empty MainTank
This menu read out the frequency (Hz) at empty tank. If the main
tank is empty, then press Enter to accept the frequency.
In case the main tank is not empty, this menu can only be used to
correct the empty-frequency if it is known to the user.
÷
NOTE! The definition of an empty tank is when the pump is
not able to suck more liquid from the tank, i.e. there will still
be a very small amount of liquid in the sump when the tank
is defined empty.
μ
ATTENTION! This can also be useful for re-calibrating empty
tank frequency if the sensor has dirt on it.
Sprayer Model Place of Level
NAVIGATOR Underside of the frame.
Select factory calibration
Custom calibration of gauge
Factory calibration
Factory tank gauge table
Menu
Offset at empty MainTank
Hz
Actual frequency. Accept if
empty. Or keyin recorded
empty-frequency
