600mA LOW DROPOUT LINEAR REGULATOR AP2317 600mA LOW DROPOUT LINEAR REGULATOR AP1117M
Data Sheet
LOW DROPOUT LINEAR REGULATOR AZ1117C
1
Jan. 2012 Rev. 1. 5 BCD Semiconductor Manufacturing Limited

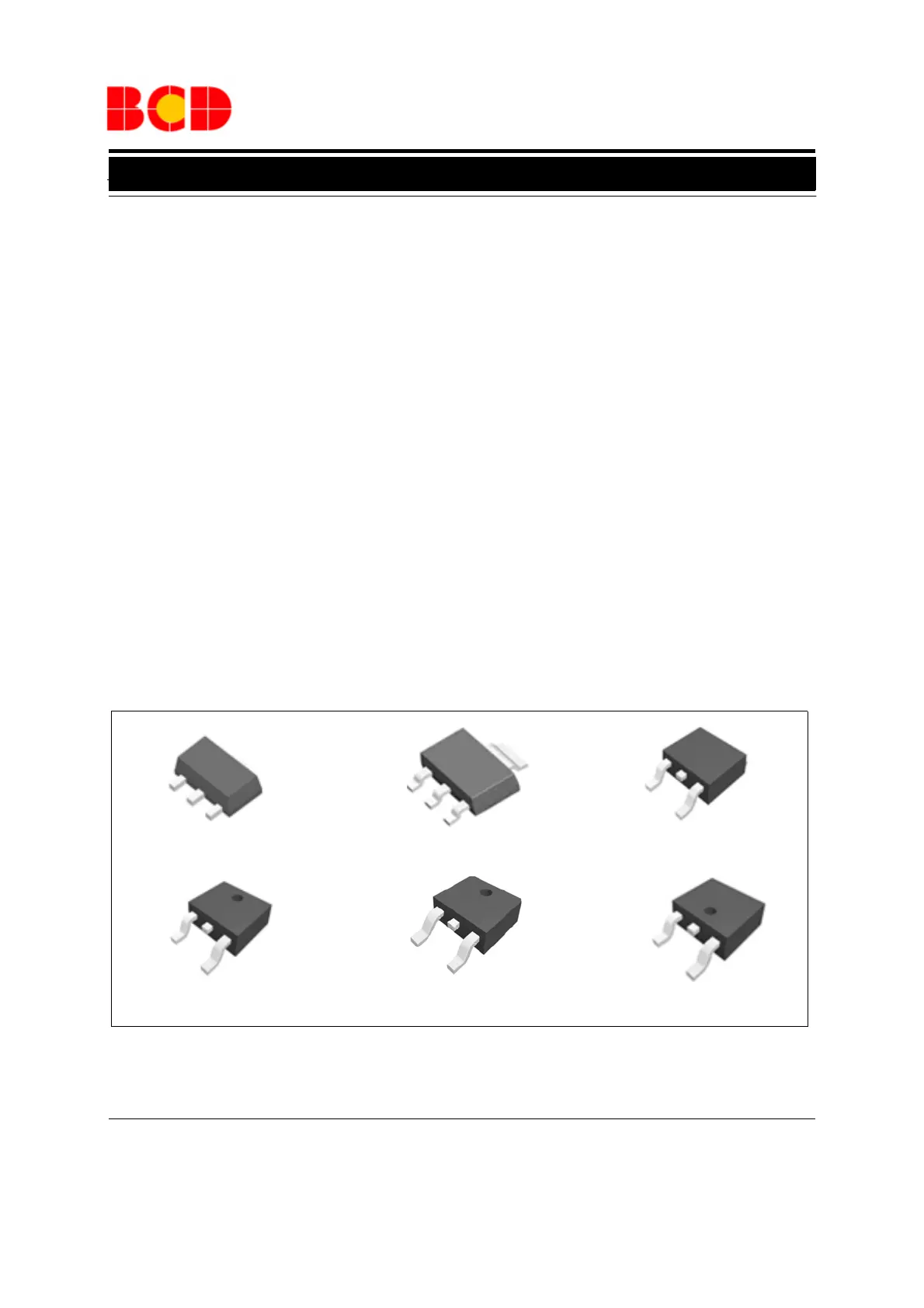

Figure 1. Package Types of AZ1117C
SOT-223
General Description
The AZ1117C is a low dropout three-terminal regula-
tor.
The AZ1117C has been optimized for low voltage
where transient response and minimum input voltage
are critical. It provides current limit and thermal shut-
down. Its circuit includes a trimmed bandgap reference
to assure output voltage accuracy to be within r1%.
On-chip thermal shutdown provides protection against
a combination of high current and ambient temperature
that would create excessive junction temperature.
The AZ1117C is available in 1.2V, 1.5V, 1.8V, 2.5V,
3.3V, 5.0V fixed output voltage vesions and ADJ out-
put voltage version. The fixed versions integrate the
adjust resistors. It is also available in an adjustable ver-
sion which can set the output voltage with two external
resistors.
The AZ1117C is available in the industry-standard TO-
252-2 (1), TO-252-2 (2), TO-252-2 (3), TO-252-2 (4),
SOT-89 and SOT-223 power packages.
Features
g Current Limit: 1.0A (Typ.)
g Output Noise from 10Hz to 10KHz: 0.003% of
V
OUT
g PSRR at I
OUT
=300mA and f=120Hz: 70dB
g Output Voltage Accuracy: r1% (Except 1.2V
version)
g On-chip Thermal Shutdown
g Maximum Quiescent Current: I
QMAX
=6mA
g Compatible with Low ESR Ceramic Capacitor
g Operation Junction Temperature: -20 to 125
o
C
Applications
g USB Device
g Add-on Card
g DVD Player
g PC Motherboard
TO-252-2 (1)
TO-252-2 (2)
TO-252-2 (3)
SOT-89
TO-252-2 (4)
