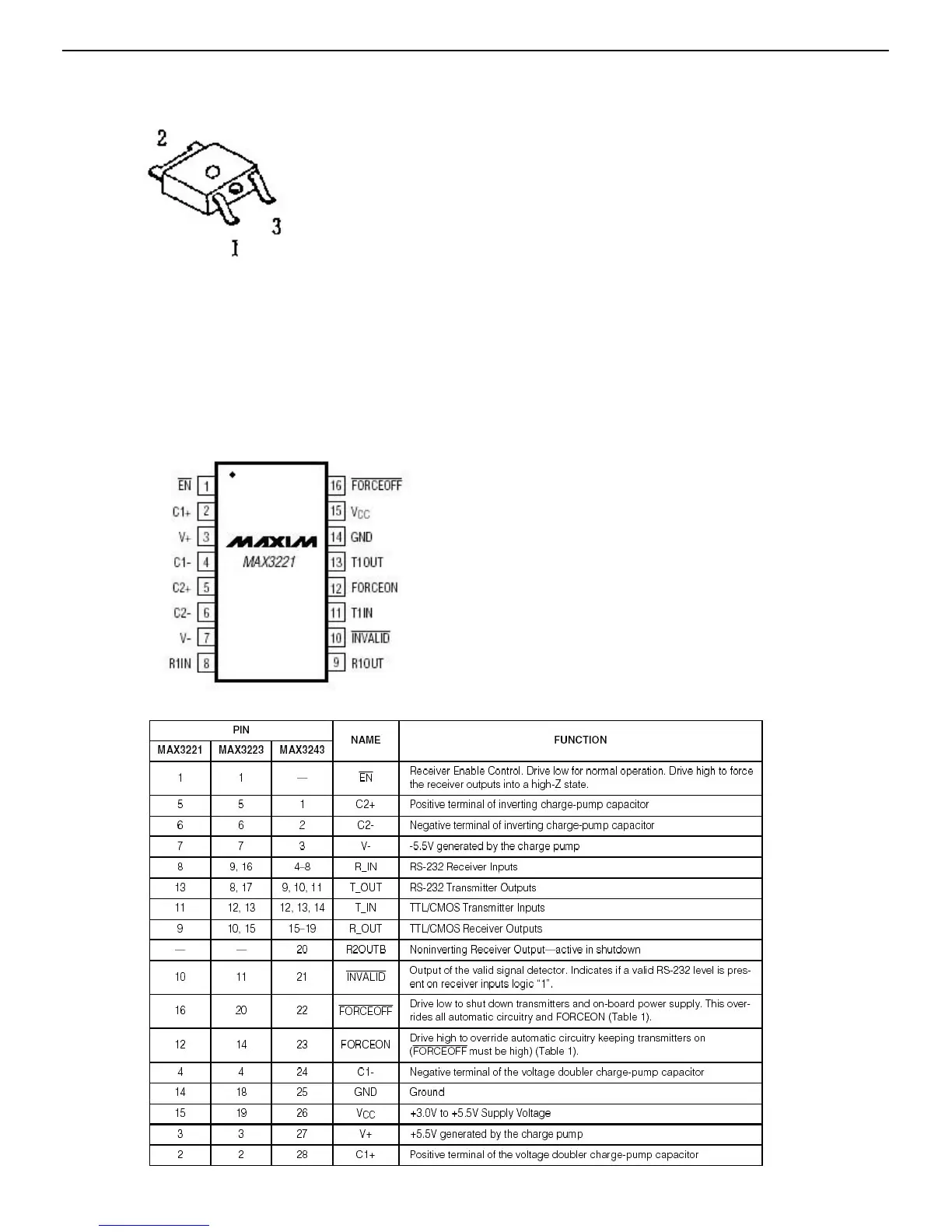

23. NJM317DL1 (DSP: IC25)
1. Adjustment
2. Output
3. Input
24. MAX3223CDWR (SUPPLY: IC31)
AVR645
harman/kardon
57
