TRANSISTORS

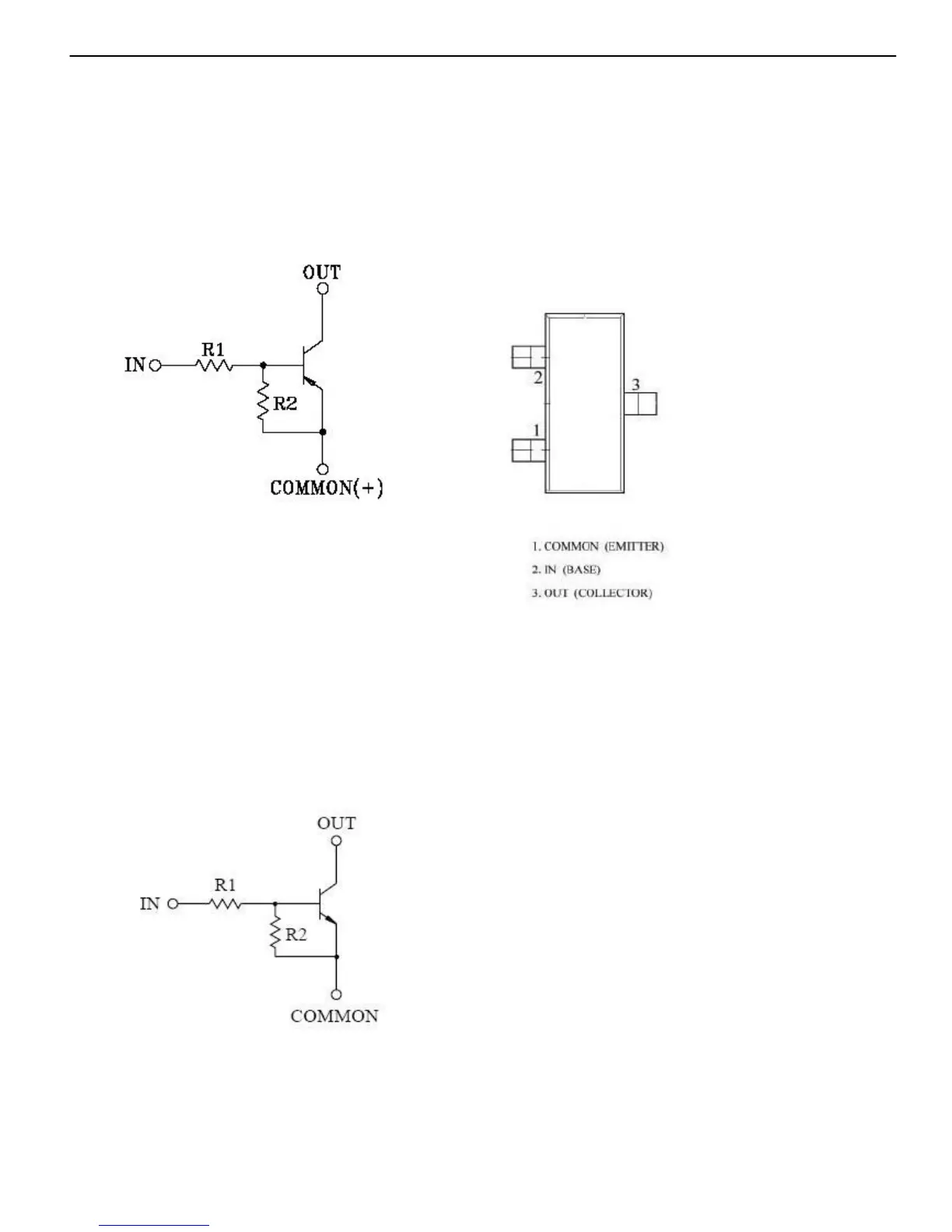

1. KRA107S
(DSP: Q113)
(FRONT: Q824, 831, 832)
(PROCESSOR: Q109, 203, 301, 605, 608, 611, 614, 615, 618, 620, 623, 626
629, 754, 692, 751)
(SUPPLY: Q301, 302)
(VIDEO: Q110, 111, 112)
2. KRC107S
(DSP: Q1 Q2 Q3 Q4 Q101 Q102 Q103 Q104 Q105 Q106 Q107 Q108
Q109 Q110 Q201 Q301 Q303)
(FRONT: Q800, 801, 802, 803, 820, 822, 833)
(SUPPLY: Q303, 304)
(VIDEO: Q103, 104, 105, 106, 113, 114, 115, 118)
AVR645
harman/kardon
79
