SECTION 2 : INSTALLER
Installation - AL690
Rear Leg Attachment (con't)

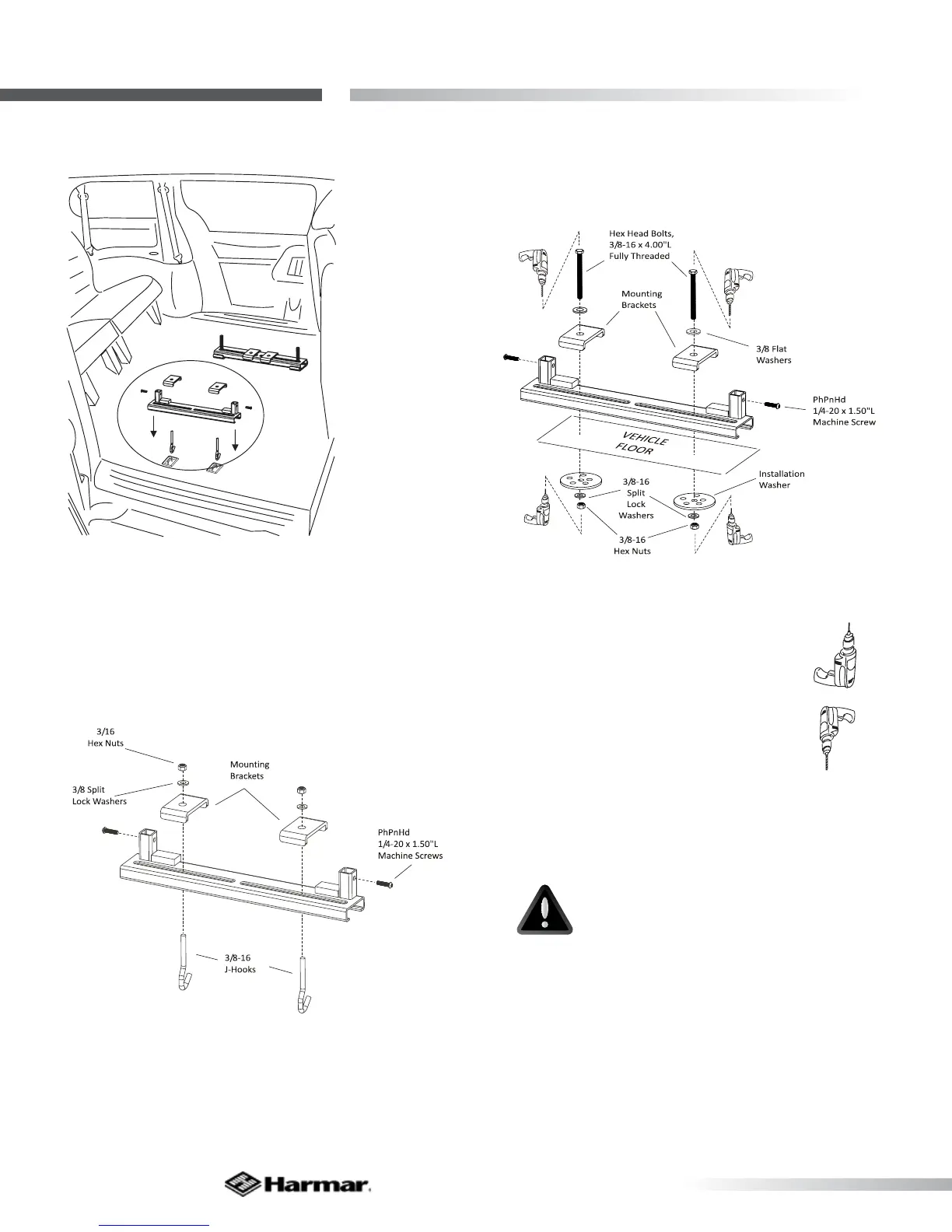

4A. If Seat Attachment Points ARE Available: See
Figure 24-1 for mounting diagram.
4B. If Seat Attachment Points are NOT Available:
Look under vehicle in approximate area where leg
will need to be mounted. [Figure 24-2]
Drill a pilot hole rst, up from under
the vehicle to ensure nothing will be
damaged.
Find hole from inside vehicle and drill
3/8” hole down through vehicle’s oor.
Figure 24-1
Figure 24-2
CAUTION
USE EXTREME CAUTION
Avoid Gas Tank, Fuel / Brake /
Electrical Lines
