Installation - AL690
5. Thread ½-13 nuts onto ½-13 4.00”L bolts
installed previously.
Place ½” lock washer onto bolts.
Place mounting washers onto bolts
Using an assistant, place lift onto bolts through

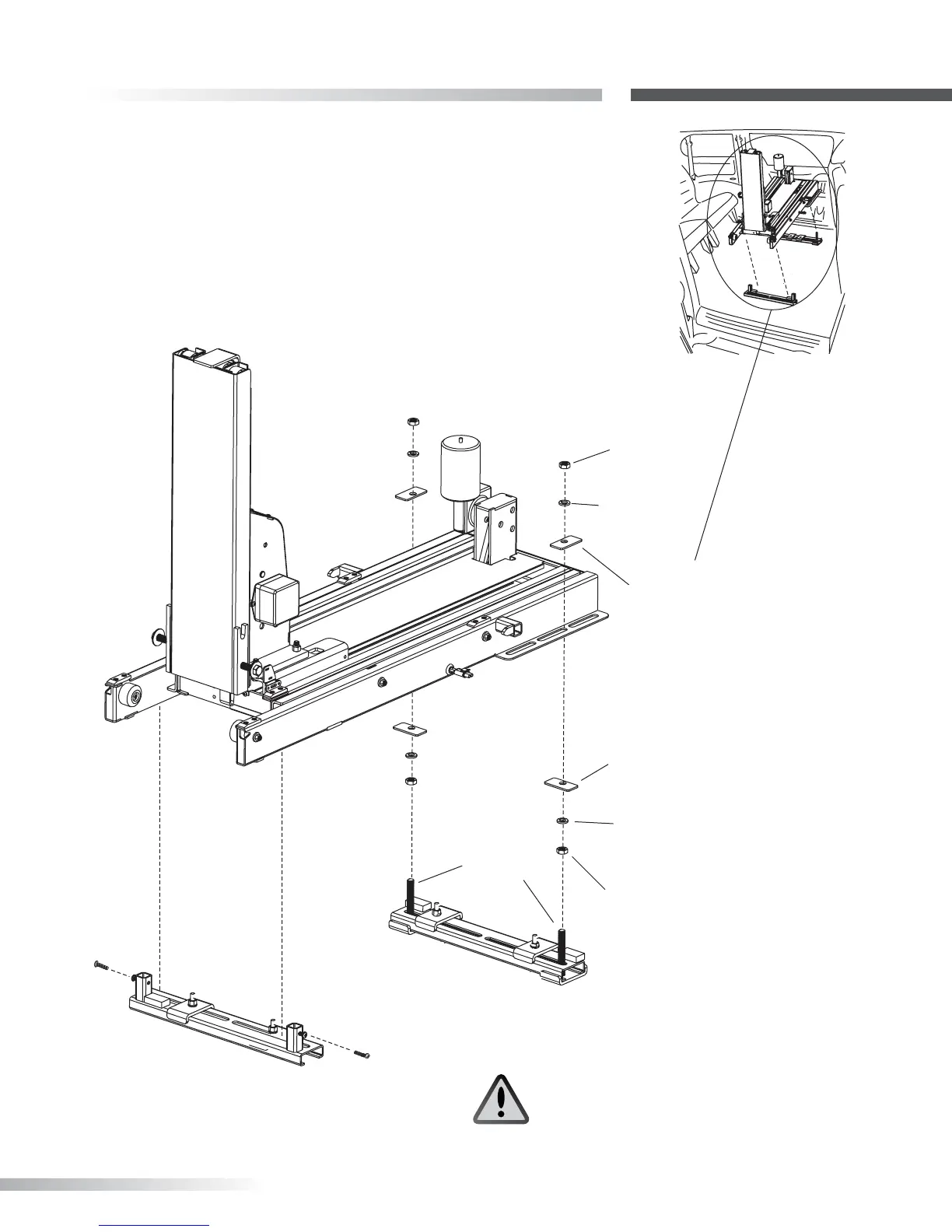

mounting ange on lift as shown. [Figure 25-1]
1/2-13
HexNut
1/2-13
HexNut
1/2Split
Lock Washer
1/2Split
Lock Washer
Mounting
Washer
Mounting
Washer
Place mounting washerson bolts, on topof
mounting angeon lift.
Place 1/2" split lock washersonto bolts.
Thread 1/2-13nutsontobolts.
1/2-13 x
4.00"Lbolts
(leveling nut )
WARNING
If no assistant is available, follow
instructions on page 11 to avoid
injury.
Figure 25-1
