Harris RF-5800H-MP User Manual

RF-5800H 125-WATT COMMUNICATION SYSTEM
INSTALLATION
2-21

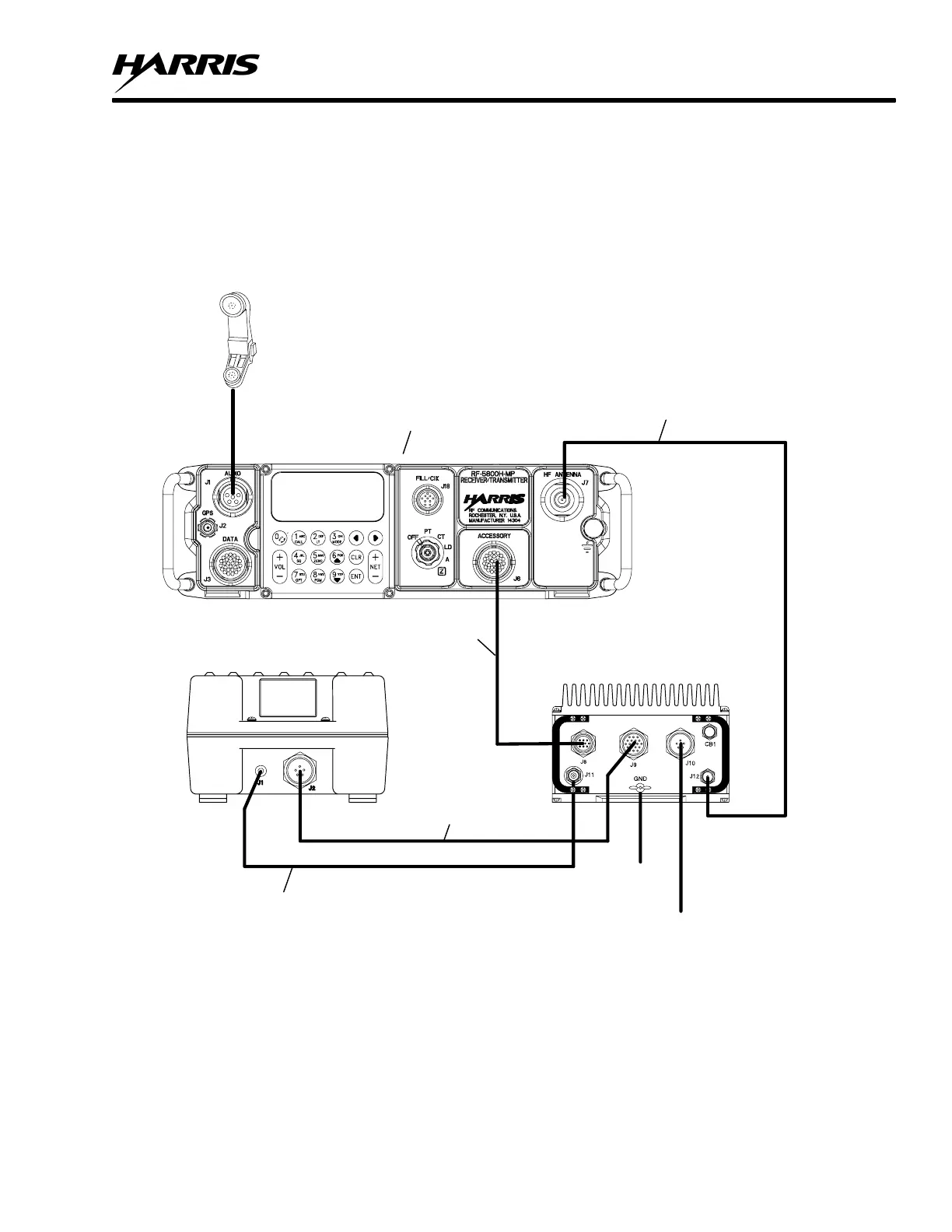

Figure 2-10. RF-5800H 125-Watt Vehicular System Cable Interconnects
5800H-125 VEH01
TO
GROUND
R/T-PA
RF CABLE ASSY
(10181-9821)
RF-382A
ANTENNA COUPLER
RF-5832H-PA
POWER AMPLIFIER
R/T-PA
CONTROL CABLE
(10535-0720)
RF-5832H-PA
DC POWER CABLE
(10181-9826)
BATTERY ALTERNATOR
POWER SYSTEM
HANDSET
(H-250/U)
(10075-1399)
PA-COUPLER
COAXIAL CABLE
(10181-9825 OR 10181-9824)
PA-COUPLER
CONTROL CABLE
(10181-9823)
NOTE: ENSURE THAT THE
VEHICULAR SHOCK MOUNTS ARE
GROUNDED PER INSTRUCTIONS
GIVEN IN PARAGRAPH 2.5.3.
RF-5800H-MP
MANPACK RADIO
