Harris RF-5800H-MP User Manual

RF-5800H 125-WATT COMMUNICATION SYSTEM
INSTALLATION
2-22
RF-5832H-PA
POWER AMPLIFIER
RF-382A
ANTENNA COUPLER
RF-5051PS-125
POWER SUPPLY
PA TO COUPLER
CONTROL
CABLE
(10181-9823)
PA TO COUPLER RF COAX
CABLE
(10181-9825 OR 10181-9824)
PA DC POWER
INTERCONNECT CABLE
(10181-9833)
TO
GROUND
TO
GROUND
TO
AC
POWER
AC POWER
CABLE
(10181-9831)
RF-5800H-MP
MANPACK RADIO
SPEAKER
(10181-5180-01)
R/T-PA
COAX CABLE
(10181-9821)
TO
GROUND
R/T – PA
CONTROL CABLE
(10535-0720)
ON
OFF
J17
J15
J16
+28VDC
GND
NOTE: BE SURE TO GROUND SYSTEM FROM THE GROUNDING STUD PROVIDED AT THE TOP OF THE BASE STATION MOUNT.
CPLR CONTROL
RF OUT
J11
GND
P.A. CONTROL
J8
J9
J12
RF IN
CB1
D.C. POWER
J10
SPEAKER CABLE ASSEMBLY
(10535-0707)

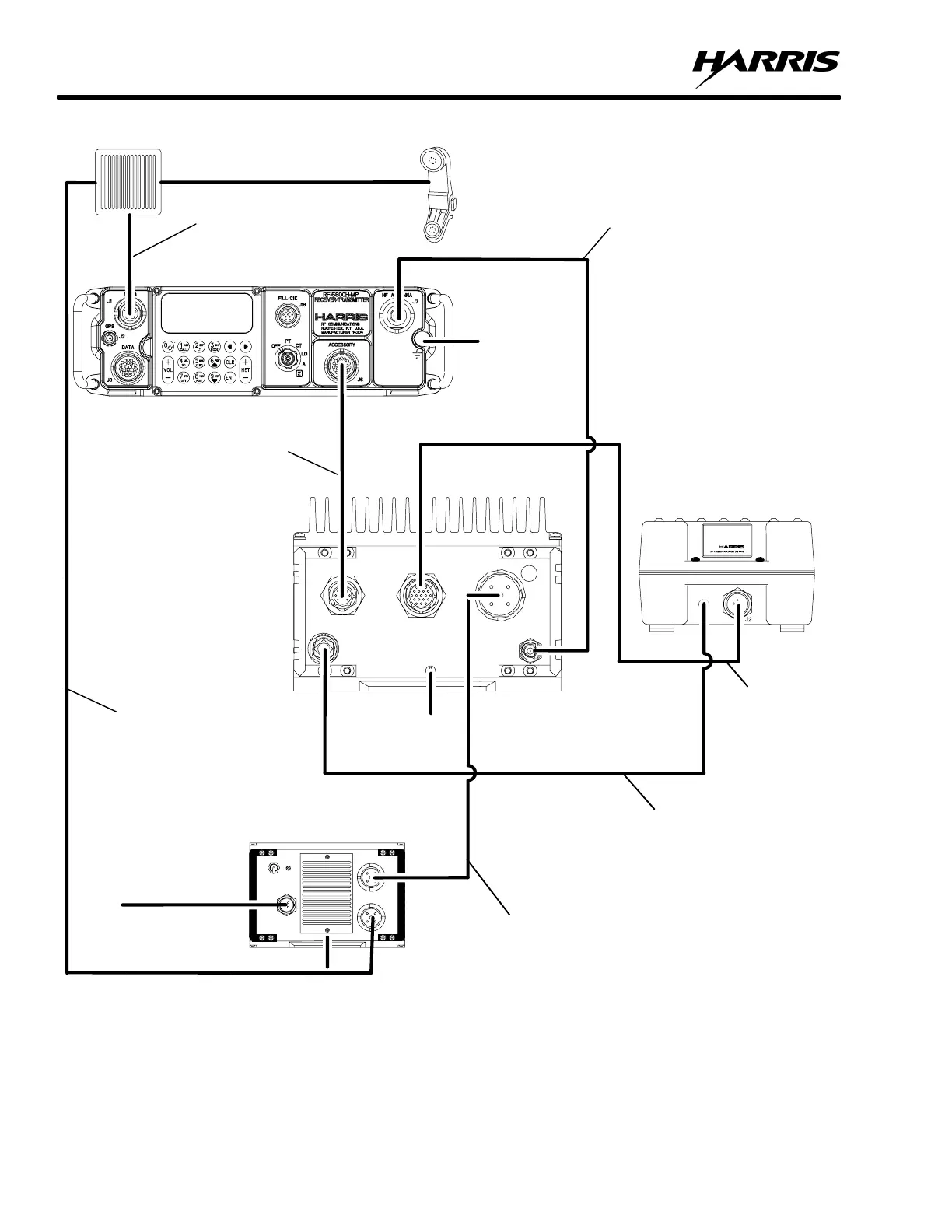

Figure 2-11. RF-5800H 125-Watt Base Station or Transit Case System Cable Interconnects
5800H-125-130
HANDSET
(H-250/U)
(10075-1399)
SPEAKER POWER
CABLE ASSY
(10535-0706)
