RF-5800H 125-WATT COMMUNICATION SYSTEM
PARTS LIST
7-12

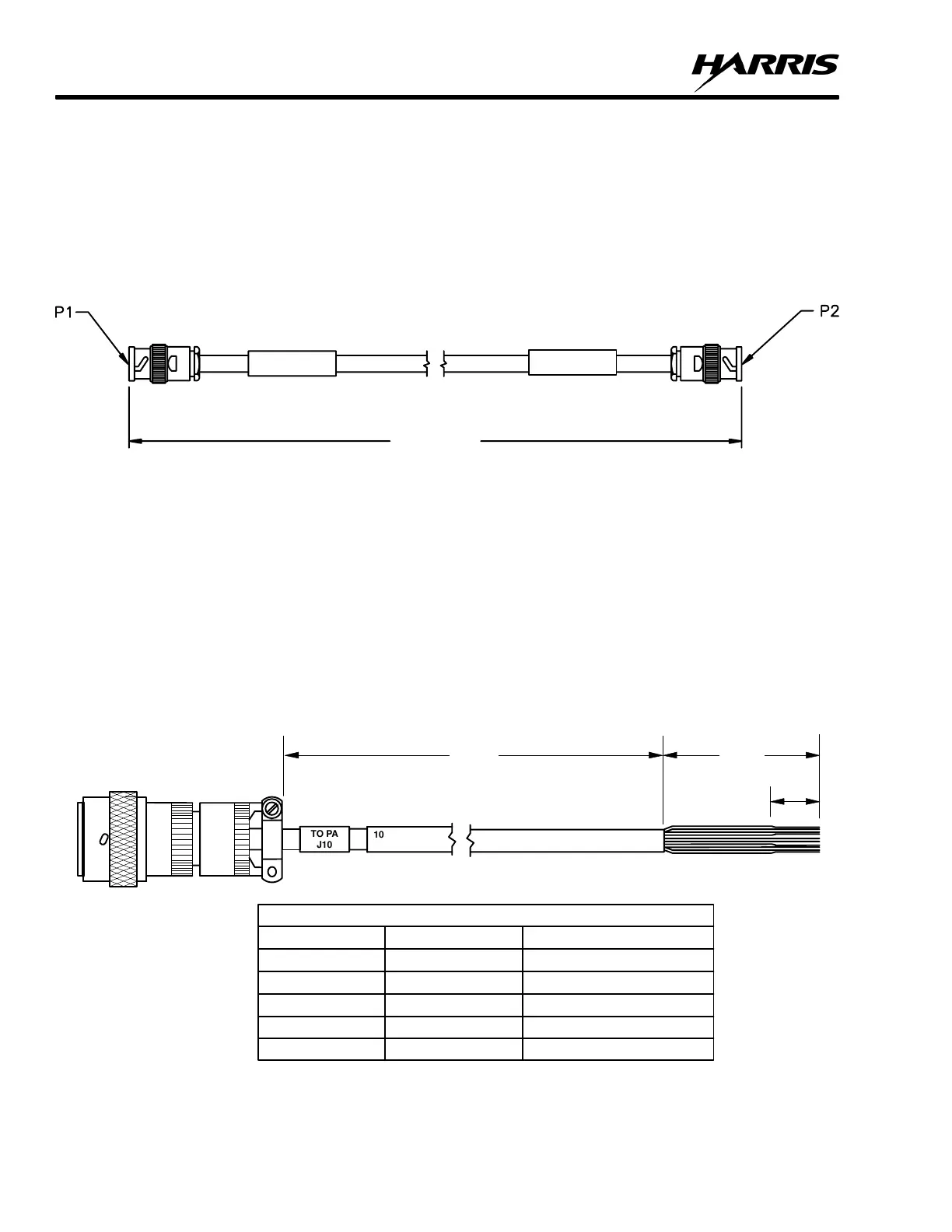

Figure 7-8. R/T-PA Coaxial Cable Assembly (10181-9821)
20 FT.
10181-9821-XXX
R/T-P.A. (RF)
10181-9821-XXX
R/T-P.A. (RF)
Figure 7-9. DC Power Cable Assembly (10181-9826-020)
ÇÇ
ÇÇ
ÇÇ
ÇÇ
ÇÇ
TO PA
J10
10181-9826-020
D.C. POWER
5KS-055A
19 FT. 10 IN
1 IN
TABLE 1
Wire Color
Function (Reference)(Item 2)
PIN A
PIN B
PIN C
PIN D
PIN E
N/A
RED
BLK
BRN
ORN
SHIELD GND
+DC
DC RETURN
DC RETURN
+DC
