Hasselblad 503CW User Manual

7
1
2
3
4
5
6
7
8
10
11
12
13
14
15
16
18
19
20
21
23
22
24
26
27
9
25
17
14. Drive shaft
15. Exposure value index
16. Exposure value scale
17. Shutter speed and aperture interlock button
18. External and internal lens accessory mount
19. PC flash/strobe terminal
20. Shutter speed ring
21. Aperture ring and scale
22. Depth-of-field scale
23. Central lens index
24. Focusing ring and scale
25. Lens release button
26. Focusing screen: Acute-Matte D screen
27. Focusing hood
1. Lock safety button
2. Lock button
3. Sensor (covered by glass IR filter)
4. CF card cover
5. Sync socket (for use with Winder CW and EL-type cameras)
6. Databus contacts
7. Strap lug
8. Winding crank
9. Pre-release button
10. Winding crank index
11. Viewfinder mirror
12. Shutter release button
13. Threaded cable release socket

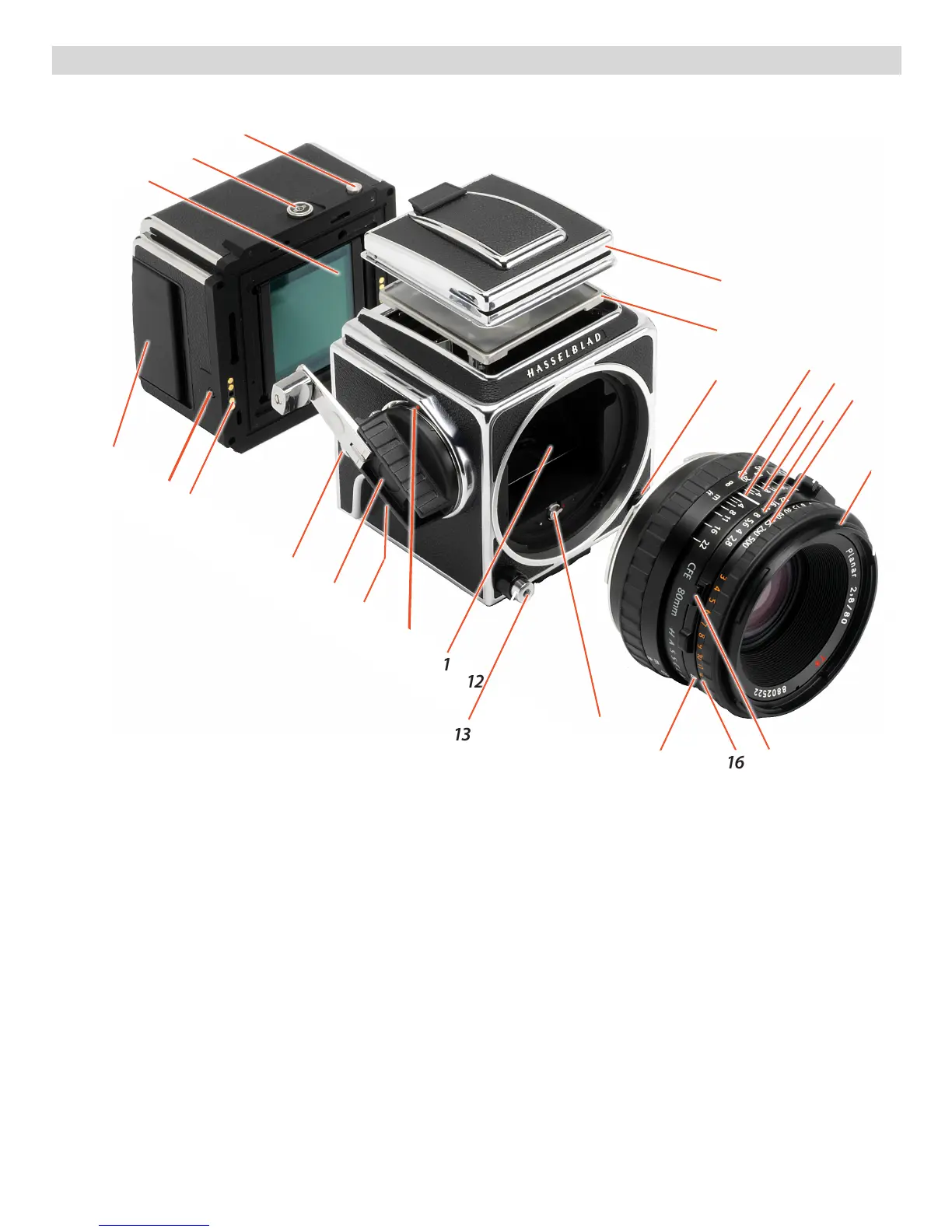

Parts & Components

Hasselblad 503CW Specifications

General

Camera Type	Medium format SLR
Exposure Modes	Manual
Focus	Manual focus
Lens Mount	Hasselblad V mount
Shutter Type	Focal-plane shutter
Flash Sync	1/90 sec
Metering	External metering required
Viewfinder	Interchangeable viewfinders (waist-level, prism)
Shutter Speed	1 sec to 1/500 sec, Bulb
Flash Sync Speed	1/90 sec
