Engine overview 1B30E, 1B50E / 02 - Rev. 01
30
HATZ
Manual
5.2 HATZ instrument box
Overview

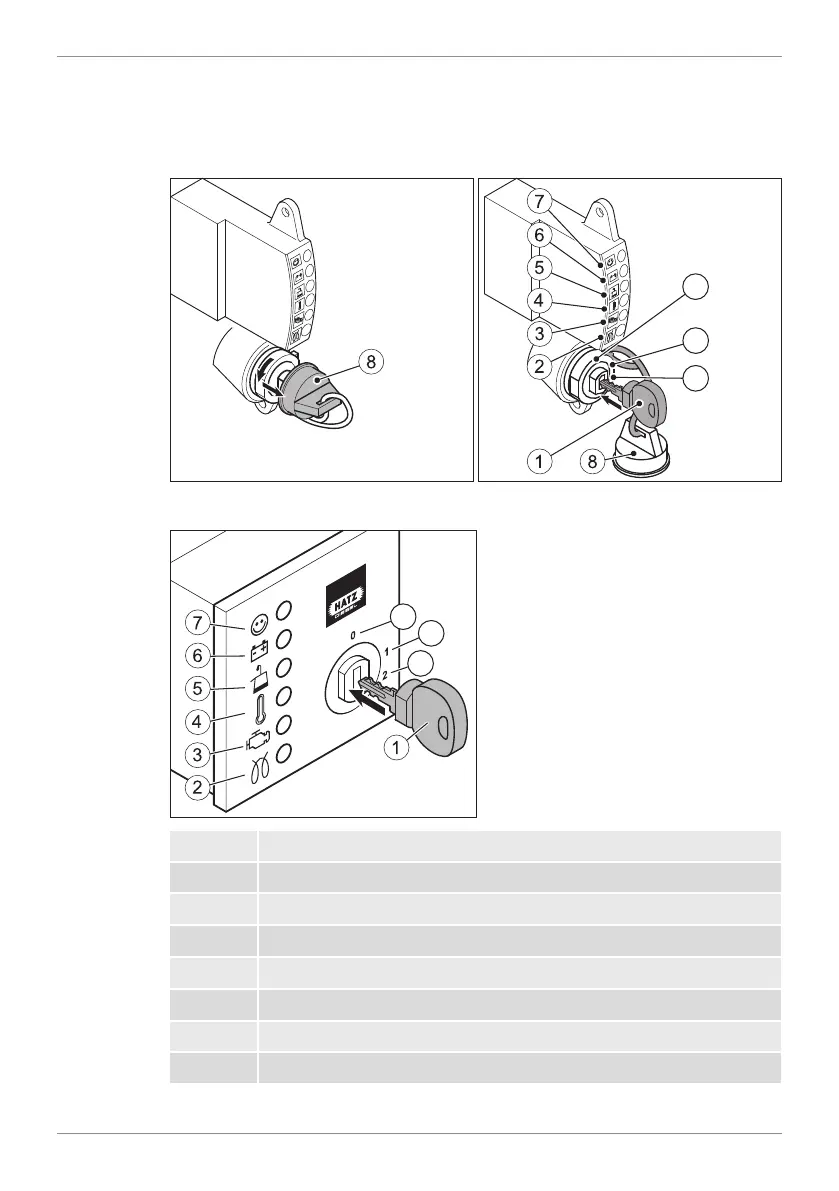

Standard (instrument box attached on the engine)
0
I
II
Option (external instrument box)
II
I
0
1 Starting key
2 Pre-glow indicator (option)
3 Engine fault
4 Engine temperature indicator
5 Oil pressure indicator
6 Charge control
7 Operating indicator
8 Protective cap (only for standard instrument box)
