5 Engine overview

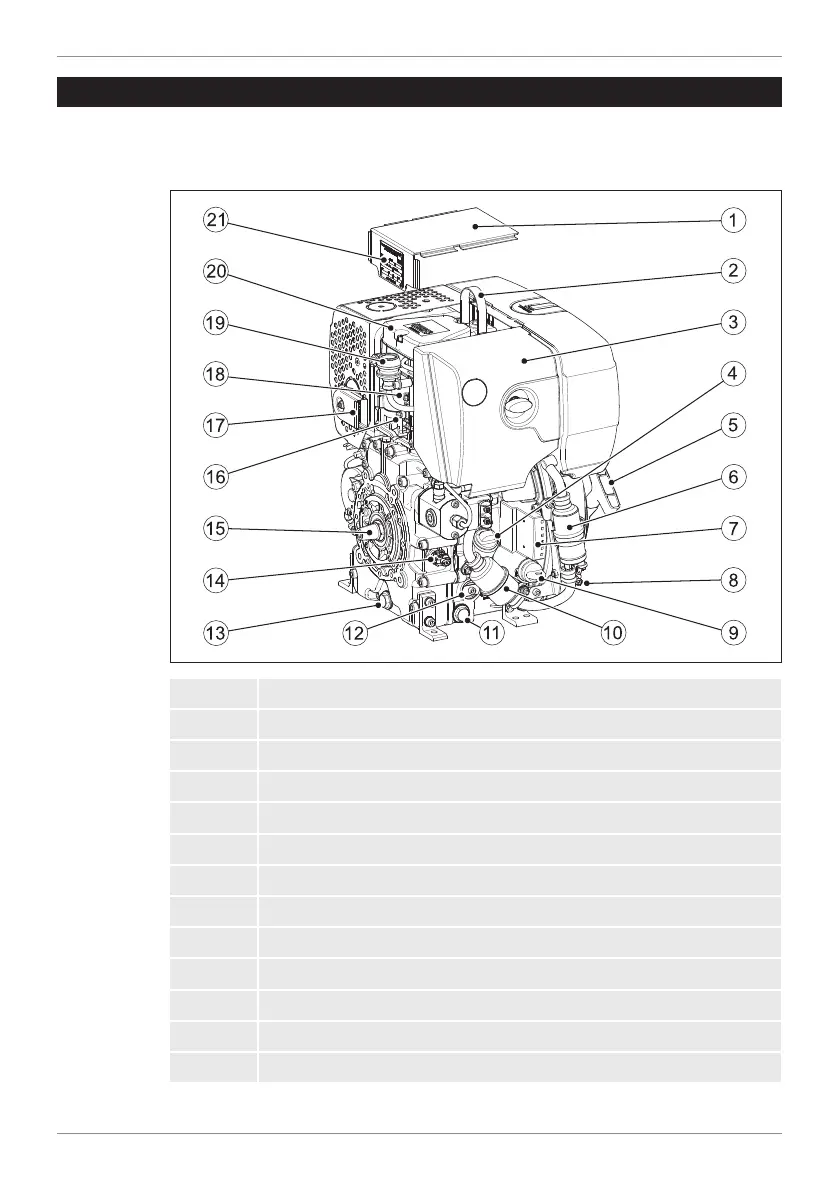

5.1 Designation of components
Intake side
1 Sound protection hood
2 Lifting eye
3 Dry air filter
4 Oil filling opening and dipstick
5 Handle for emergency hand start system (option)
6 Electric fuel pump
7 Indicator lamps
8 Crankshaft speed sensor
9 Ignition lock
10 Main fuel filter
11 Side oil drain screw
12 Screw plug for oil filter
13 Oil drain screw, front
