Hawk Gladiator User Manual

12
Admittance Smart Switch Series
Manual
Rev 1.2, June 2008
13
WIRING
SMART PROBE
RELAY
1. NC
2. COM
3. NO
COMMS DC-IN AC-IN
4. Test
12-30VDC
80-265 VAC

7.
8.
N
9.
L1
10.
1 2 3 4 5 6 7 8 9 10
RS 485
5.
B
6.
A
S
E
N
S
I
T
I
V
I
T
Y
D
E
L
A
Y
HI
FSH
TESTCAL
-

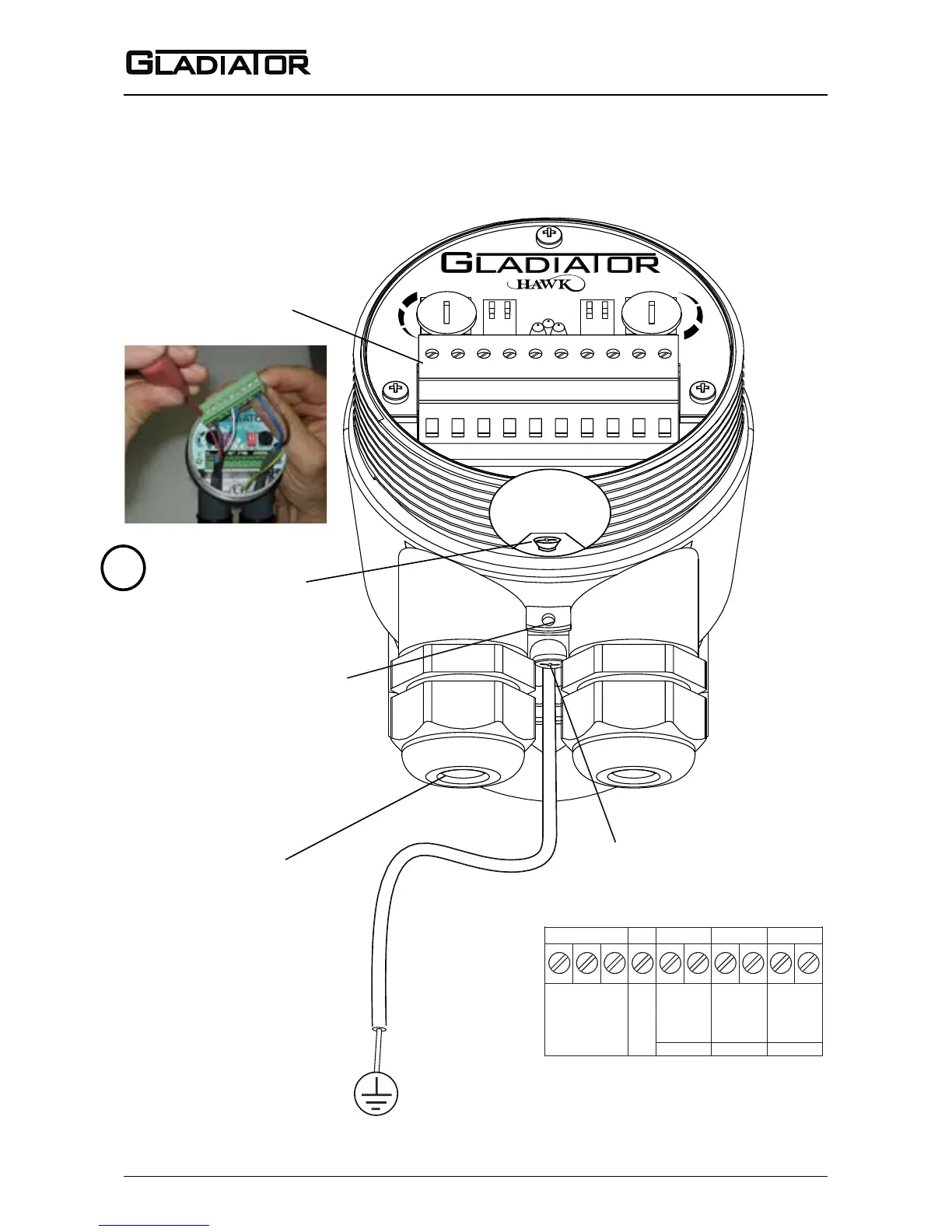

GLADIATOR SMART PROBE TERMINAL LAYOUT
Hole for securing of
optional identification tag
M4 grounding screw
Ground the housing to
vessel, if vessel is metallic.
Ground the housing to
plant ground, if vessel is
non-metallic.
The AC earth/ground
cable must be connected
to the ground screw
inside the housing when
using AC power.
If only one cable is used for both
power and output signal, then the
second entry port must be
plugged or blinded. Every Smart
unit is supplied with two M20
glands (or 3/4”NPT adaptors)
mounted on the unit and one
blind plug loose.
Remove Plug-In
terminal block for
easier wiring.
!

Hawk Gladiator Specifications

Power

operating voltage	12-30VDC, 90-260VAC, 36-60VDC
power consumption	<0.8W @ 24VDC, <5VA @ 240Vac, <3VA @ 115Vac

Operating Environment

maximum operating pressure	2 BAR
operating temperature for remote electronics	-40°C (-40°F) to 80°C (176°F)
operating temperature for remote sensors	-20°C (-4°F) to 80°C (176°F)
enclosure sealing for remote electronics	IP67 (NEMA 4x)
enclosure sealing for remote sensors	IP68

Weight and Dimensions

transducer to amplifier separation	Up to 500m (1640ft)
typical weight for 15kHz transducer	8 kg
typical weight for remote amplifier	1 kg
