SOFTWARE MENU
REMOTE AMPLIFIER
In Run Mode
(A) Press and hold - interrupts normal operations and allows access
to software menu headings.
In Calibrate Mode
(B) Steps into a menu selection to allow editing (down one level)
(C) Saves selected value and moves onto the next menu item.
ENTERING DATA

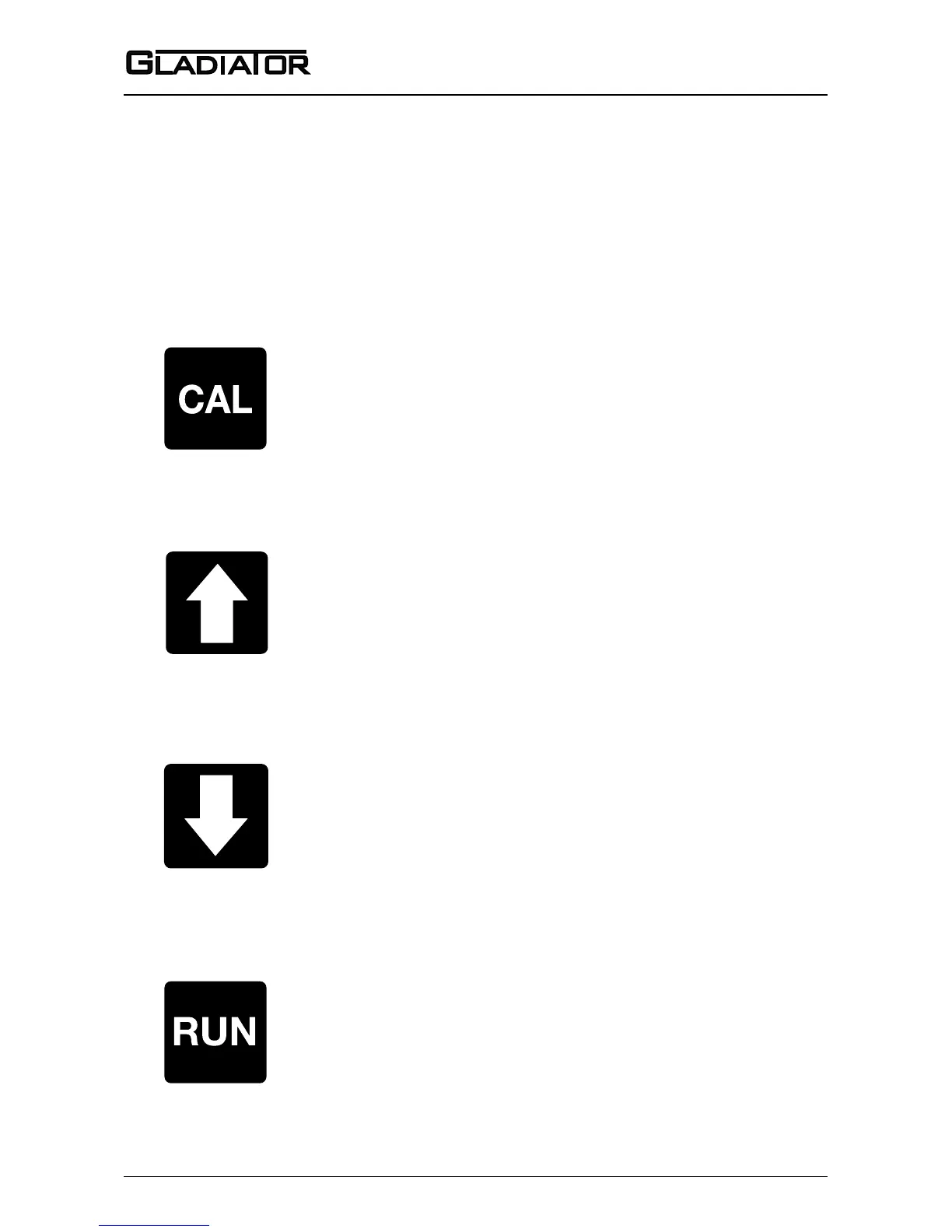

All software adjustments are achieved via the four PUSHBUTTONS on the front
panel.
In Run Mode
(A) Scrolls up through operating diagnostics on display LCD.
In Calibrate Mode
(B) Scrolls up through software parameters when browsing the
menus.
(C) Increases display value when editing a parameter.
In Run Mode
(A) Scrolls down through operating diagnostics on LCD display.
In Calibrate Mode
(B) Scrolls down through software parameters when browsing the
menus.
(C) Decreases display value when editing a parameter.
In Run Mode
(A) Hides diagnostics if they are in view and returns to the standard
running display.
In Calibrate Mode
(B) Steps out of a menu or selection (up one level). Parameter value
will be stored automatically when stepping up.
(C) Returns to running mode from the top level menu.

Hawk Gladiator Specifications

Power

operating voltage	12-30VDC, 90-260VAC, 36-60VDC
power consumption	<0.8W @ 24VDC, <5VA @ 240Vac, <3VA @ 115Vac

Operating Environment

maximum operating pressure	2 BAR
operating temperature for remote electronics	-40°C (-40°F) to 80°C (176°F)
operating temperature for remote sensors	-20°C (-4°F) to 80°C (176°F)
enclosure sealing for remote electronics	IP67 (NEMA 4x)
enclosure sealing for remote sensors	IP68

Weight and Dimensions

transducer to amplifier separation	Up to 500m (1640ft)
typical weight for 15kHz transducer	8 kg
typical weight for remote amplifier	1 kg
