Hawk Gladiator User Manual

16
17
Sultan 234 Series
Admittance Smart Switch Series
Manual
Rev 1.2, June 2008
COMMS DC-IN
A
B
12-30VDC
GSM

RS 485
Connect shield to
DC “-” only at this end.
1 2
2 1
AC-IN
N
L1
Separate AC power supply
for the GSM module
or
DC power
supply
COMMS DC-IN
A
B
12-30VDC

RS 485
-
AC-IN
N
L1
80-265VAC
Existing AC
or
DC power
supply
SMART PROBE
80-265VAC
COMMS DC-IN
A
B
12-30VDC
GSM

RS 485
Connect shield to
DC “-” only at this end.
1 2
1 2
AC-IN
N
L1
Separate AC power supply
for the GSM module
or
DC power
supply
COMMS DC-IN
B
A
12-30VDC

RS 485
-
AC-IN
N
L1
80-265VAC
Existing AC
or
DC power
supply
REMOTE AMP
80-265VAC
*
*
*Ensure separate DC supplies have the same ground potential
!
TERMINAL ORDER VARIES BETWEEN GLADIATOR SMART PROBE
AND REMOTE AMPLIFIER. ENSURE CORRECT LAYOUT IS USED.

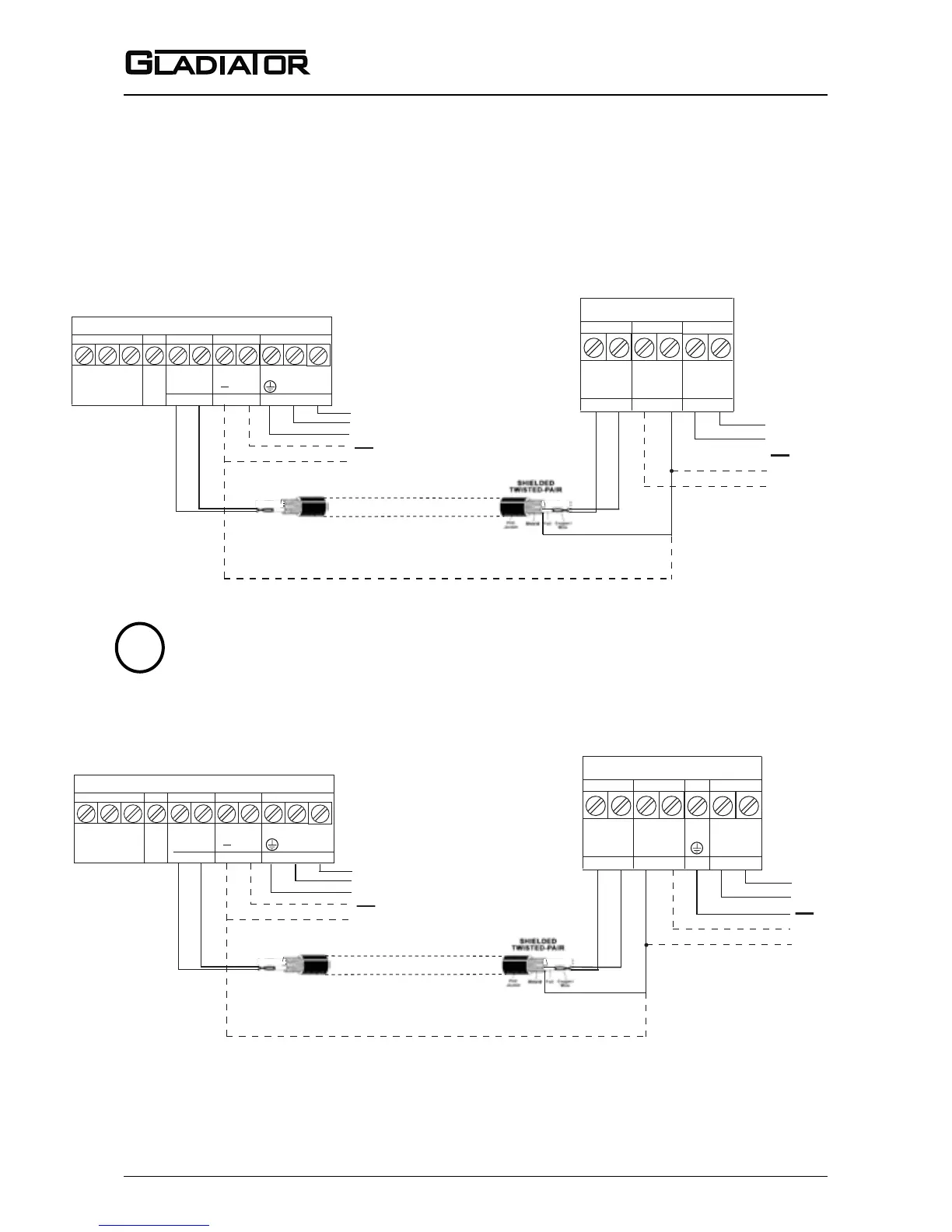

WIRING
HAWKLINK GSM - CONNECTING POWER AND COMMS
USING SEPARATE AC OR DC POWER WITH SMART PROBE
USING SEPARATE AC OR DC POWER WITH REMOTE GLADIATOR
USING DC POWER FROM GLADIATOR SMART PROBE
USING DC POWER FROM REMOTE GLADIATOR

Hawk Gladiator Specifications

Power

operating voltage	12-30VDC, 90-260VAC, 36-60VDC
power consumption	<0.8W @ 24VDC, <5VA @ 240Vac, <3VA @ 115Vac

Operating Environment

maximum operating pressure	2 BAR
operating temperature for remote electronics	-40°C (-40°F) to 80°C (176°F)
operating temperature for remote sensors	-20°C (-4°F) to 80°C (176°F)
enclosure sealing for remote electronics	IP67 (NEMA 4x)
enclosure sealing for remote sensors	IP68

Weight and Dimensions

transducer to amplifier separation	Up to 500m (1640ft)
typical weight for 15kHz transducer	8 kg
typical weight for remote amplifier	1 kg
