Hawk Gladiator User Manual

6
Admittance Smart Switch Series
Manual
Rev 1.2, June 2008
7
Probe Length (mm, inch) Active + Guard + Ground
= 50mm, 2”
= 250mm, 9.8”
P30 (300mm,11.8”)
P50 (500mm, 19.7”)
= 750mm, 29.5”
P100 (1000mm, 39.4”)
250mm, 9.8”
250mm, 9.8”
250mm, 9.8”
+
+
+
Ground 100mm (3.9”)Guard 150mm (5.9”)Active (mm)
85mm (3.3”)
probe length
M20 cable gland
or 3/4” NPT adaptor
Window for
viewing status
LEDs
Mounting
thread
90mm (3.5”)
50mm (2”)
16mm (0.6”)
Ground 100mm (3.9”)
Guard 150mm (5.9”)Active (mm)
85mm (3.3”)
probe length
Window for
viewing status
LEDs
Optional Flange
90mm (3.5”)
50mm (2”)
2 x M20
cable glands
or 3/4” NPT adaptors
16mm (0.6”)

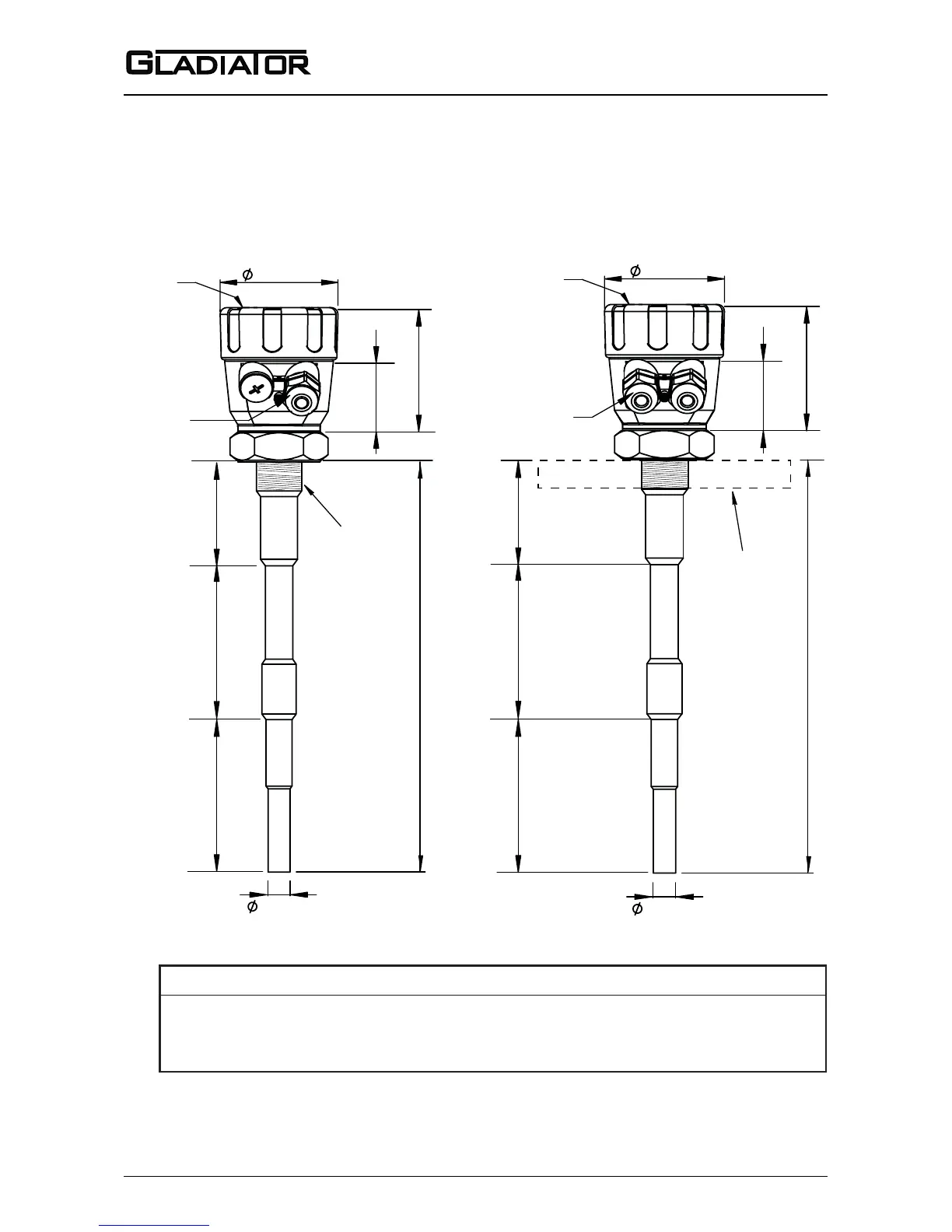

DIMENSIONS
REMOTE PROBE SMART PROBE

Hawk Gladiator Specifications

Power

operating voltage	12-30VDC, 90-260VAC, 36-60VDC
power consumption	<0.8W @ 24VDC, <5VA @ 240Vac, <3VA @ 115Vac

Operating Environment

maximum operating pressure	2 BAR
operating temperature for remote electronics	-40°C (-40°F) to 80°C (176°F)
operating temperature for remote sensors	-20°C (-4°F) to 80°C (176°F)
enclosure sealing for remote electronics	IP67 (NEMA 4x)
enclosure sealing for remote sensors	IP68

Weight and Dimensions

transducer to amplifier separation	Up to 500m (1640ft)
typical weight for 15kHz transducer	8 kg
typical weight for remote amplifier	1 kg
