Hawk Gladiator User Manual

28
Admittance Smart Switch Series
Manual
Rev 1.2, June 2008
29

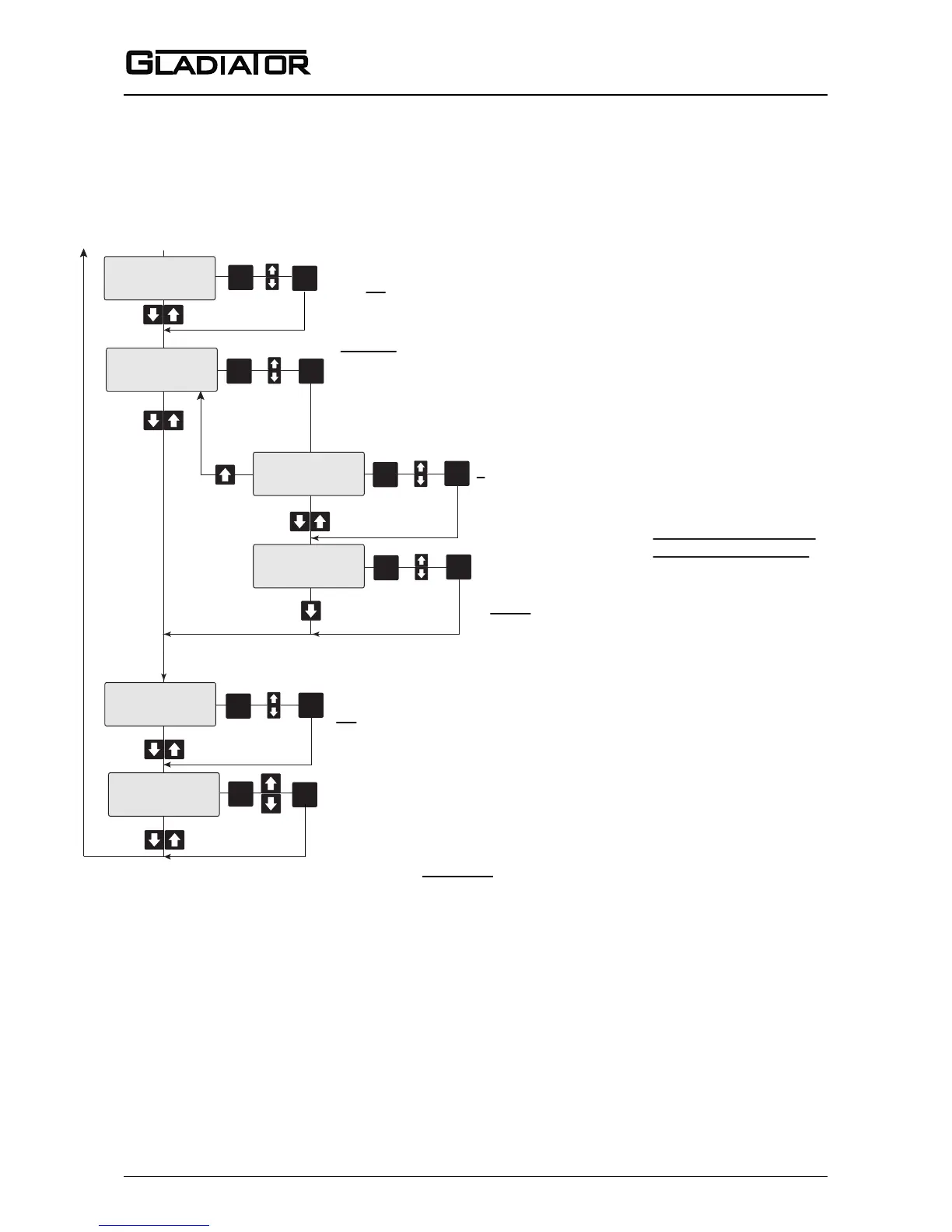

FLOW CHART
ADVANCED MENU
CAL
Reset probe history log
(Yes / No)
Log will automatically reset when Cal Mounting is used in
QuickSet to cancel mounting influences and re-zero the % reading.
Default values/settings
in bold and underlined
Reset Log
No
CAL
1200
4800
9600
19200
38400
57600
Modbus
HART
Profibus DP
DeviceNet
1-255
Comms Type
Modbus
CAL
Device ID
1
Baud Rate
19200
CAL
CAL
CAL
CAL
CAL
Selection should not be changed
unless required hardware is
present.
CAL
Display Span: 0-100% change in displayed value will occur with the
selected change of raw internal units.
Changing of this parameter will change the value of the Switch Point
(Switch On and Switch Off) values.
Back Light
On
Display Span
3
CAL
Display Backlight
On/Off
CAL
CAL
From previous page
0. 0 - 40000 2. 0 - 20000 4. 0 - 5000
1. 0 - 30000
3. 0 - 10000 5. 0 - 1000
(see part numbers - page 34-35)

Hawk Gladiator Specifications

Power

operating voltage	12-30VDC, 90-260VAC, 36-60VDC
power consumption	<0.8W @ 24VDC, <5VA @ 240Vac, <3VA @ 115Vac

Operating Environment

maximum operating pressure	2 BAR
operating temperature for remote electronics	-40°C (-40°F) to 80°C (176°F)
operating temperature for remote sensors	-20°C (-4°F) to 80°C (176°F)
enclosure sealing for remote electronics	IP67 (NEMA 4x)
enclosure sealing for remote sensors	IP68

Weight and Dimensions

transducer to amplifier separation	Up to 500m (1640ft)
typical weight for 15kHz transducer	8 kg
typical weight for remote amplifier	1 kg
