Hawk Gladiator User Manual

12
13
Sultan 234 Series
Admittance Smart Switch Series
Manual
Rev 1.2, June 2008
1 2 3 4 5 6 7 8 9 10

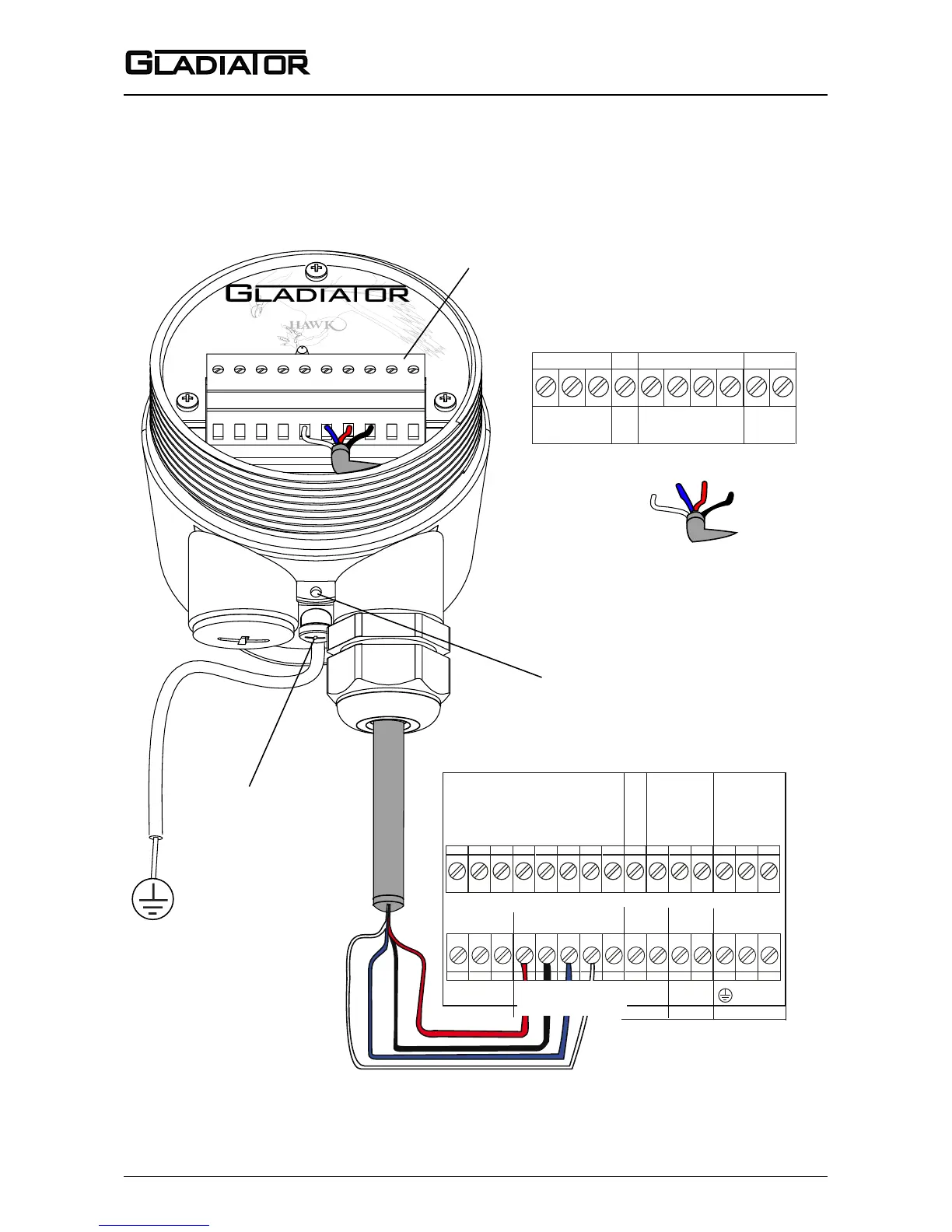

GLADIATOR REMOTE AMPLIFIER TERMINAL LAYOUT
GLADIATOR REMOTE PROBE TERMINAL LAYOUT
M4 grounding screw
7.1. 2. 3. 4. 5. 6.
8.
9.
10.
TRANSDUCER
RED
WHITE
BLUE
BLACK
Cable type between Amplifier and Probe
4 conductor shielded twisted pair instrument cable.
Conductor size dependent on cable length.
BELDEN 3084A, DEKORON or equivalent.
Max: BELDEN 3084A = 500m (1640 ft)
Max: DEKORON IED183AA002 = 350m (1150 ft)
Hole for securing of
optional identification tag
Ground the housing to
vessel, if vessel is metallic.
Ground the housing to
plant ground, if vessel is
non-metallic.
Remove Plug-In
terminal block for
easier wiring.
Terminals 1, 2, 3, 4, 9, 10 not used.
AC-IN
A
L1
+
–
DC-INCOMMSSENSOR
N
B
RELAY 2
(FAIL SAFE)
NC
COM
NO
RED
BLACK
BLUE
WHITE
24 VDC 80-265 VAC
RELAY 1
NC
COM
NO
Test in
NOT USED
CURRENT
+
–
Is
NOT USED
WIRING
REMOTE PROBE TO AMPLIFER

Hawk Gladiator Specifications

Power

operating voltage	12-30VDC, 90-260VAC, 36-60VDC
power consumption	<0.8W @ 24VDC, <5VA @ 240Vac, <3VA @ 115Vac

Operating Environment

maximum operating pressure	2 BAR
operating temperature for remote electronics	-40°C (-40°F) to 80°C (176°F)
operating temperature for remote sensors	-20°C (-4°F) to 80°C (176°F)
enclosure sealing for remote electronics	IP67 (NEMA 4x)
enclosure sealing for remote sensors	IP68

Weight and Dimensions

transducer to amplifier separation	Up to 500m (1640ft)
typical weight for 15kHz transducer	8 kg
typical weight for remote amplifier	1 kg
