Hawk Gladiator User Manual

4
5
Sultan 234 Series
Admittance Smart Switch Series
Manual
Rev 1.2, June 2008
83mm (3.3”)
76.5 (3”)
61mm (2.4”)
8mm (0.3”)
106mm (4.2”)
106mm (4.2”)
10mm (0.4”)
151mm (5.9”)
145mm (5.7”)
38mm (1.5”)
160mm (6.3”)
192mm (7.6”)
166mm (6.5”)
142mm (5.6”)
10.5mm (0.4”)
3 x 20mm (0.7”), 1x16mm (0.6”)
Knock outs
166mm (6.5”)
192mm (7.6”)
160mm (6.3”)
Front Side Back
DIN Rail Mounting
(clips included)

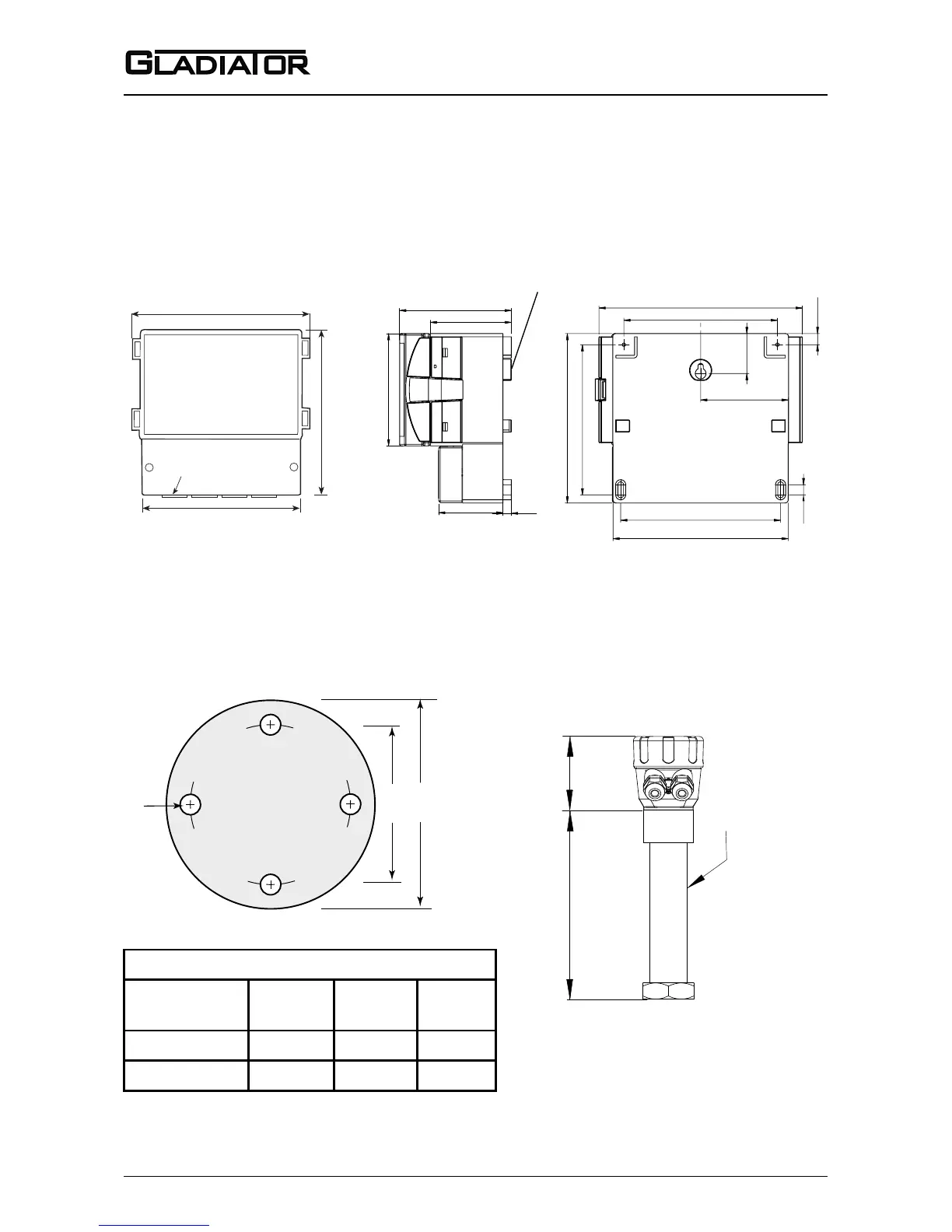

DIMENSIONS
REMOTE AMPLIFIER ENCLOSURE
X mm
temperature
extension
SS 316
X mm:
Max. 80ºC (176ºF) ~ no temperature extension required.
Max.150ºC (302ºF) ~ 150mm (5.9”)
Max. 250ºC (482ºF) ~ 250mm (9.8”)
For the 450ºC (842ºF) Probe, a different extension applies.
165mm (6.5”)
125mm (4.9”)
4x18mm (0.7”) holes
10mm (0.4”)
90mm (3.5”)
HIGH TEMPERATURE
EXTENSIONS (<250°C, <482°F)
Remote Probe or Smart Probe
OPTIONAL FLANGE
Low level
(side mounted)
Flange Dimensions - 50mm (2”)
ANSI (Class 150)
A
120.7 4.75”
B
152.4 6”
C
19.1 0.75”
DIN (PN40)
125 4.9” 165 6.5” 18 0.7”
JIS (10K)
120 4.7” 155 6.1” 19 0.75”
A B
C

Hawk Gladiator Specifications

Power

operating voltage	12-30VDC, 90-260VAC, 36-60VDC
power consumption	<0.8W @ 24VDC, <5VA @ 240Vac, <3VA @ 115Vac

Operating Environment

maximum operating pressure	2 BAR
operating temperature for remote electronics	-40°C (-40°F) to 80°C (176°F)
operating temperature for remote sensors	-20°C (-4°F) to 80°C (176°F)
enclosure sealing for remote electronics	IP67 (NEMA 4x)
enclosure sealing for remote sensors	IP68

Weight and Dimensions

transducer to amplifier separation	Up to 500m (1640ft)
typical weight for 15kHz transducer	8 kg
typical weight for remote amplifier	1 kg
