Hawk Gladiator User Manual

4
Admittance Smart Switch Series
Manual
Rev 1.2, June 2008
5

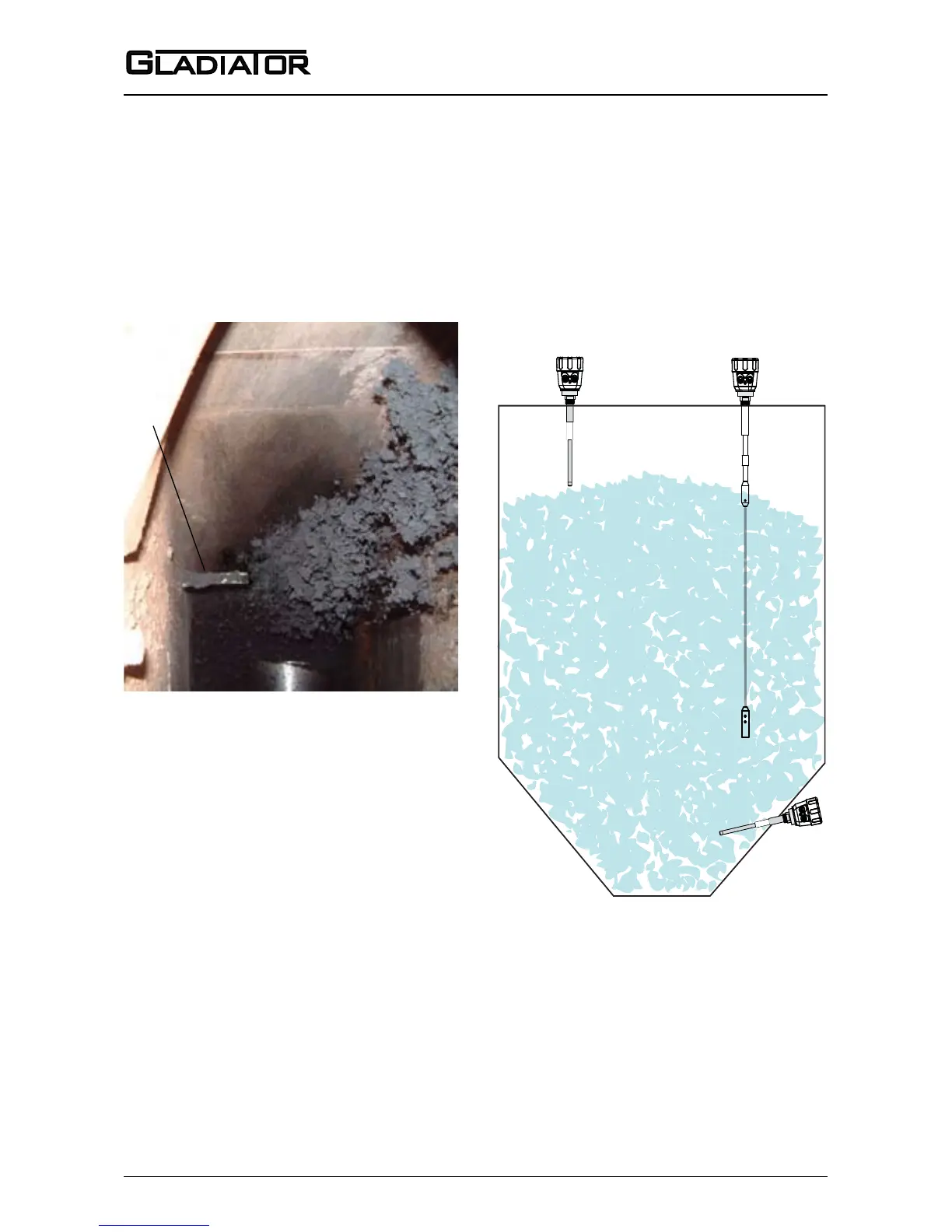

Continuous lling with build-up
on probe
High and low level switch in a hopper
If impact from falling material is
expected, mount a protection plate
above the probe to ensure no
physical damage can occur to the
probe in normal operation. If it is not
possible to do this or to move the
probe to an alternative position, use
a microwave switch.
See www.hawkmeasure.com for
further information on Microwave
switches and other level products.
TYPICAL APPLICATIONS
Probe
Low level
(side mounted)
Low level
(top mounted)
High level
(top mounted)

Hawk Gladiator Specifications

Power

operating voltage	12-30VDC, 90-260VAC, 36-60VDC
power consumption	<0.8W @ 24VDC, <5VA @ 240Vac, <3VA @ 115Vac

Operating Environment

maximum operating pressure	2 BAR
operating temperature for remote electronics	-40°C (-40°F) to 80°C (176°F)
operating temperature for remote sensors	-20°C (-4°F) to 80°C (176°F)
enclosure sealing for remote electronics	IP67 (NEMA 4x)
enclosure sealing for remote sensors	IP68

Weight and Dimensions

transducer to amplifier separation	Up to 500m (1640ft)
typical weight for 15kHz transducer	8 kg
typical weight for remote amplifier	1 kg
