Hawk Gladiator User Manual

14
Admittance Smart Switch Series
Manual
Rev 1.2, June 2008
15
1 2 3
1 2 3
1 2 3
1 2 3
1 2 3
1 2 3
1 2 3
1 2 3
RISING LEVEL
(not detected)
CONTACT LEVEL
(detected)
FALLING LEVEL
(not detected)
NC NO
NC NO
NC NO
NC NO
NC NO
NC NO
NC NO
NC NO
COM COM
COM COM
COM COM
COM COM
POWER FAILURE
NC NO NC NOCOM COM
INTERNAL FAILURE
POWER FAILURE
OR
SYSTEM OPERATING
NORMALLY
NC NOCOM
NC NOCOM
State 1State 2State 1
Smart Probe
terminal numbers
Remote Amplifier
terminal function
labels
FailSafe Low
FSL
FailSafe High
FSH (default)
Relay Status
LED Status
Relay Action

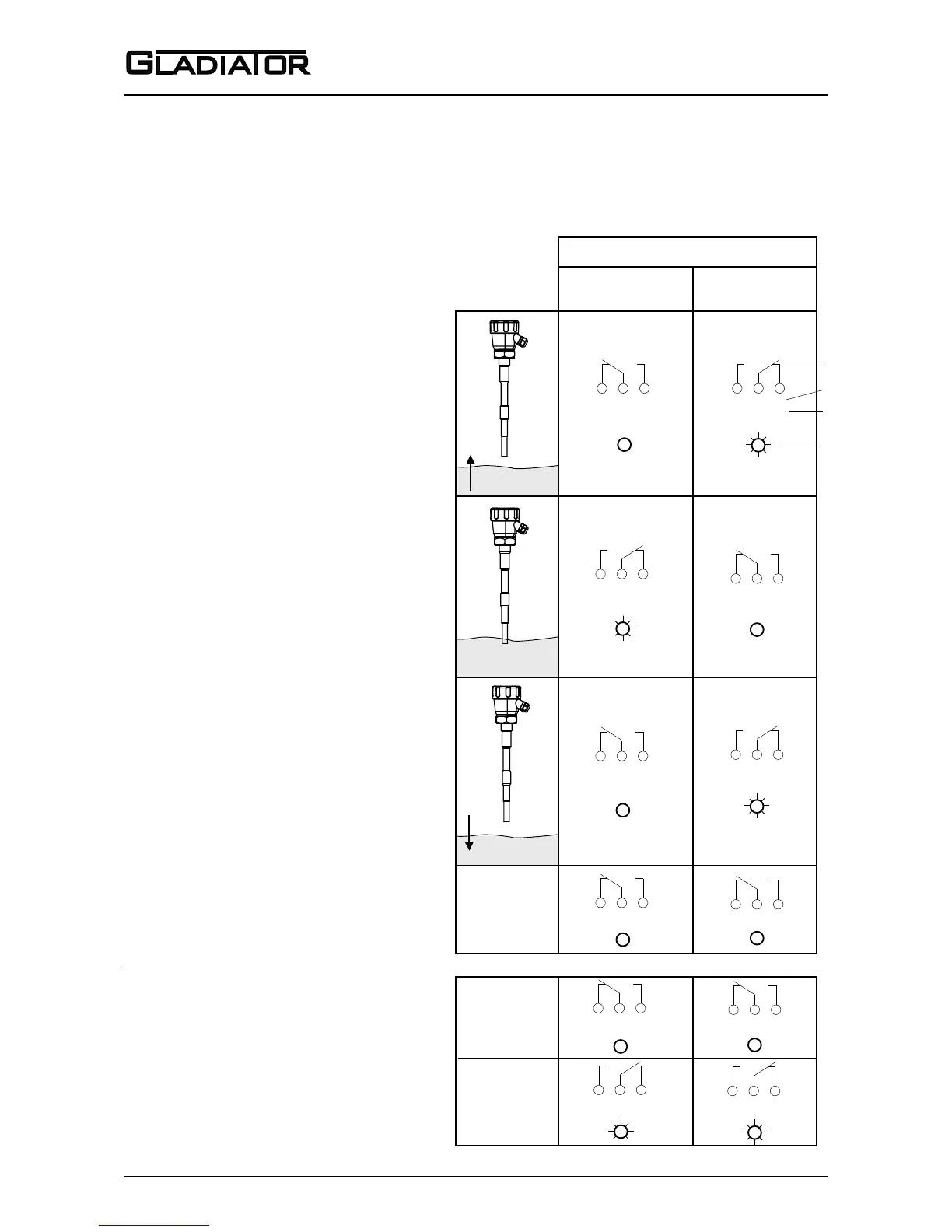

WIRING
RELAY FUNCTIONS
FailSafe Switch Contact Action
Relay 2 - Remote version only.
For Smart Probes the Test termi-
nal can act as a solid state output
with a similar function.
(see page 18)
Level Switch Contact Action
Relay - for Smart Probe Version
(Set Relay Action selection switch
pages 19 and 20)
Relay 1 - for Remote Version
(Set ‘Relay Action’ parameter
pages 23 and 26)
*It is possible for the Gladiator to
switch state before actual product
contact with the probe. State 2 rep-
resents product being detected by
the probe, even if it occurs without
contact.

Hawk Gladiator Specifications

Power

operating voltage	12-30VDC, 90-260VAC, 36-60VDC
power consumption	<0.8W @ 24VDC, <5VA @ 240Vac, <3VA @ 115Vac

Operating Environment

maximum operating pressure	2 BAR
operating temperature for remote electronics	-40°C (-40°F) to 80°C (176°F)
operating temperature for remote sensors	-20°C (-4°F) to 80°C (176°F)
enclosure sealing for remote electronics	IP67 (NEMA 4x)
enclosure sealing for remote sensors	IP68

Weight and Dimensions

transducer to amplifier separation	Up to 500m (1640ft)
typical weight for 15kHz transducer	8 kg
typical weight for remote amplifier	1 kg
