Hawk Gladiator User Manual

10
11
Sultan 234 Series
Admittance Smart Switch Series
Manual
Rev 1.2, June 2008

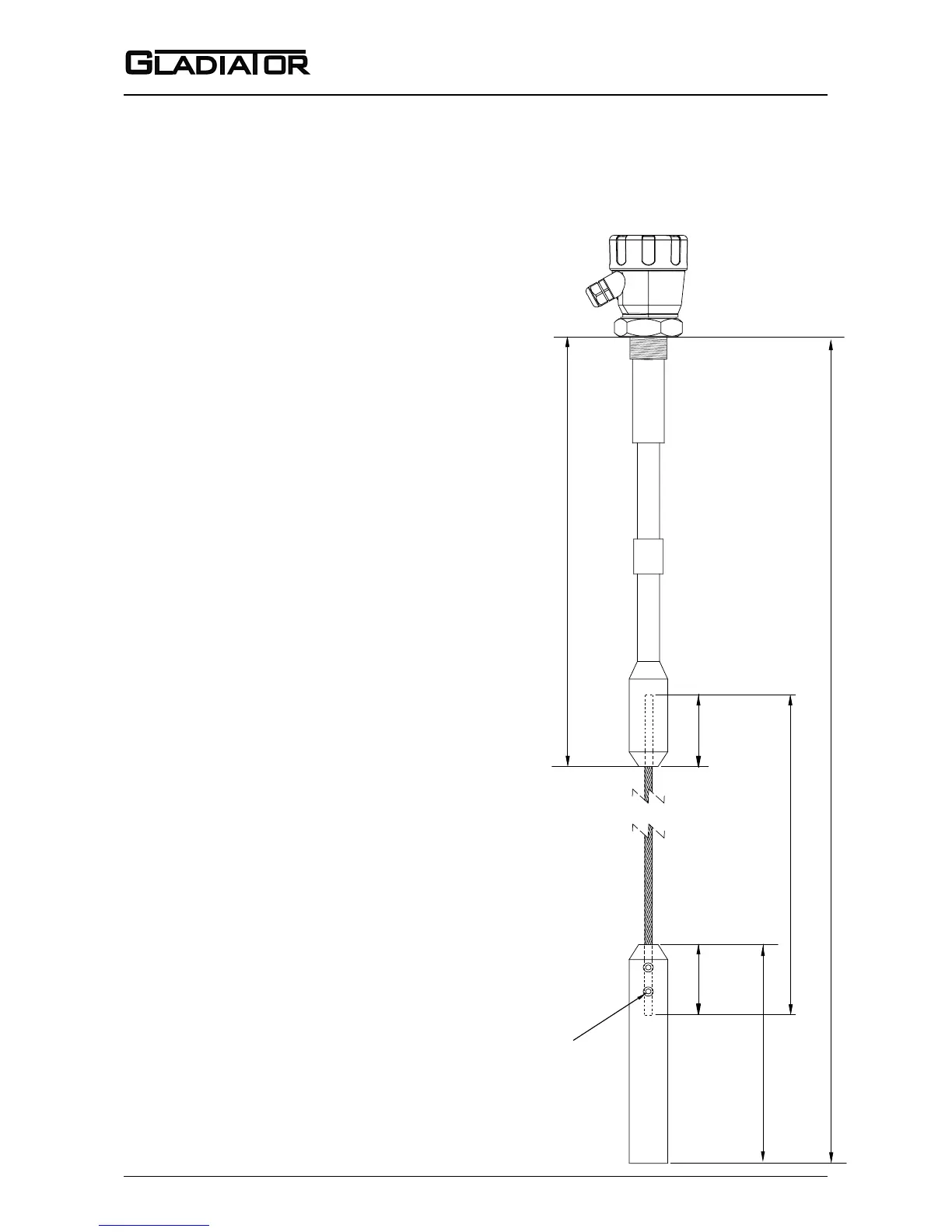

FLEXIBLE CABLE PROBE ADJUSTMENT
Notes for adjusting probe rope length
The Gladiator rope type probe can be
altered to any sensing length between
approx. 750mm and 3m by cutting down
from the standard sizes as required.
If a new rope is to be used, the rope
should be cut to:
Cable probe length - 549mm = new wire rope
length (total sensing length - 549mm)
For example, within a 1000mm (1m) cable:
1000 = [rope + 549]
So rope length = 451mm
Remove or install the probe weight grub
screws with a 4mm allen key.
When fastening the rope, apply thread-
locking adhesive onto grub screws
before re-installation.
Weight
Removable SS grub screws
for cable adjustment
Rope
Concealed
rope
Concealed
rope
250mm (9.8”)
83mm83mm
465mm (18.3”)
Cable Probe Length
Incorrect
Correct Correct
Correct
Correct
Correct (non-preferred
low level mounting)
Correct
Incorrect
2
3
Correct
Correct
3
If necessary mount a
protection plate to
prevent direct impact
or to prevent pull
from down feed.
Flexible cable
Incorrect
2
Incorrect
1
Housing can be rotated
within 200º after the
mounting thread is
tightened, to allow cable
entries to face downwards
or allow optimal cable
clearance.
30-45º
1
Possible
product
build-up
Possible product
build-up

Hawk Gladiator Specifications

Power

operating voltage	12-30VDC, 90-260VAC, 36-60VDC
power consumption	<0.8W @ 24VDC, <5VA @ 240Vac, <3VA @ 115Vac

Operating Environment

maximum operating pressure	2 BAR
operating temperature for remote electronics	-40°C (-40°F) to 80°C (176°F)
operating temperature for remote sensors	-20°C (-4°F) to 80°C (176°F)
enclosure sealing for remote electronics	IP67 (NEMA 4x)
enclosure sealing for remote sensors	IP68

Weight and Dimensions

transducer to amplifier separation	Up to 500m (1640ft)
typical weight for 15kHz transducer	8 kg
typical weight for remote amplifier	1 kg
