Hawk Gladiator User Manual

10
Admittance Smart Switch Series
Manual
Rev 1.2, June 2008
11

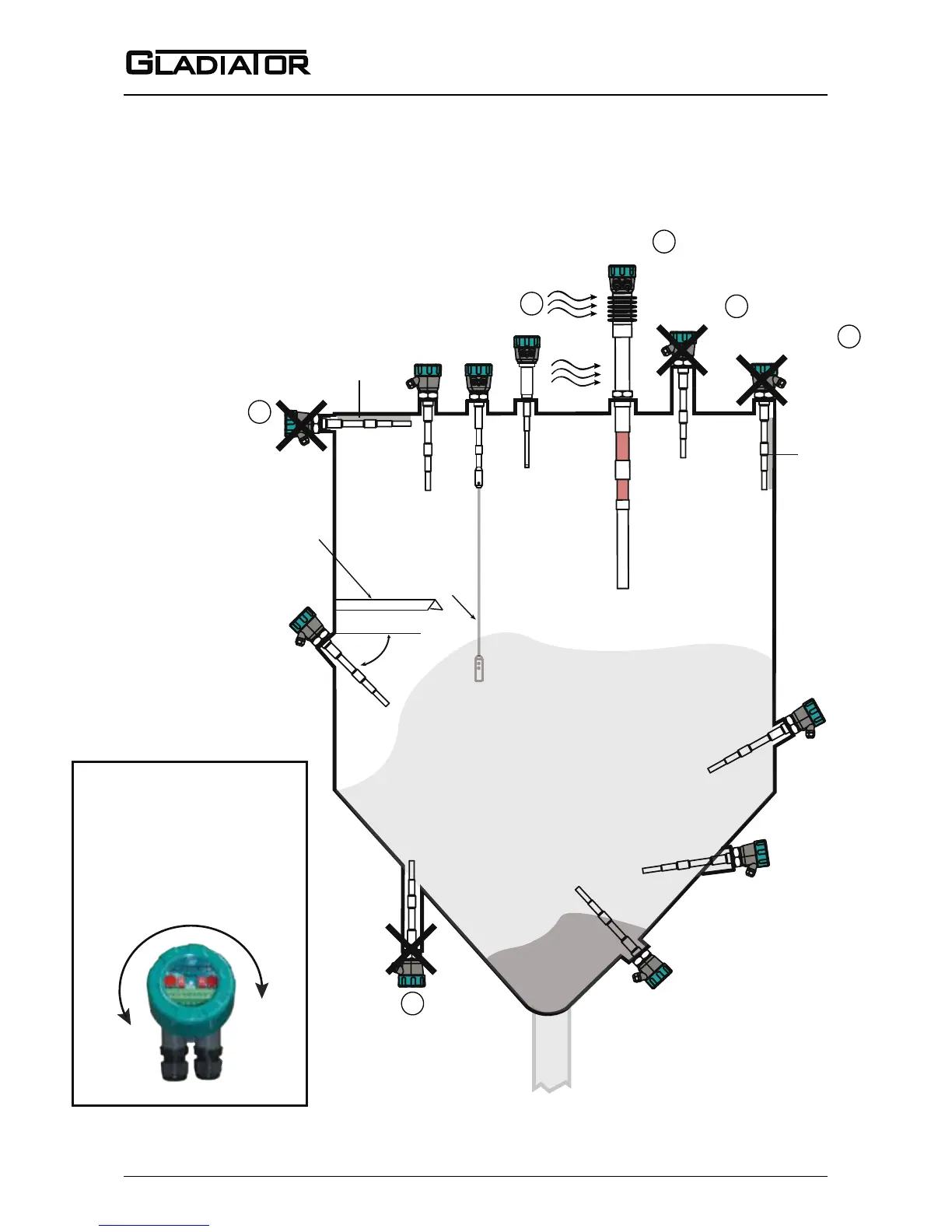

MOUNTING
Incorrect
Correct Correct
Correct
Correct
Correct (non-preferred
low level mounting)
Correct
Incorrect
2
3
Correct
Correct
3
If necessary mount a
protection plate to
prevent direct impact
or to prevent pull
from down feed.
Flexible cable
Incorrect
2
Incorrect
1
Housing can be rotated
within 200º after the
mounting thread is
tightened, to allow cable
entries to face downwards
or allow optimal cable
clearance.
30-45º
1
Possible
product
build-up
Possible product
build-up

Hawk Gladiator Specifications

Power

operating voltage	12-30VDC, 90-260VAC, 36-60VDC
power consumption	<0.8W @ 24VDC, <5VA @ 240Vac, <3VA @ 115Vac

Operating Environment

maximum operating pressure	2 BAR
operating temperature for remote electronics	-40°C (-40°F) to 80°C (176°F)
operating temperature for remote sensors	-20°C (-4°F) to 80°C (176°F)
enclosure sealing for remote electronics	IP67 (NEMA 4x)
enclosure sealing for remote sensors	IP68

Weight and Dimensions

transducer to amplifier separation	Up to 500m (1640ft)
typical weight for 15kHz transducer	8 kg
typical weight for remote amplifier	1 kg
