Hawk Gladiator User Manual

30
31
Sultan 234 Series
Admittance Smart Switch Series
Manual
Rev 1.2, June 2008
Laptop or PC Communications
or PLC / DCS with
MODBUS RTU Port
GosHawk Software for
inventory monitoring on PC
GSM Network
or
CDMA Network
Floatation Cells
Sultan Acoustic
Wave Transmitter
Slurries
Gladiator
Admittance
Switch
Sultan Acoustic Wave Transmitter
Silo, bin levels, coal, plastic powder,
woodchip, sawdust, cement,
clinker, iron ore, lime etc.
Orca Sonar Interface
Thickener, CCD
GSM or CDMA Network
• Typically up to 31 transmitters or switches per string.
• Maximum 250 transmitters or switches.
• Using GSM/CDMA network, transmitters and switches can be
monitored, calibrated remotely.
• Alarm status, diagnostics can be monitored.
• Support from factory engineering for customer application problems.
Sultan Acoustic Wave Transmitter
Stockpiles, Stackers,
Reclaimers
Sultan Acoustic
Wave Switch
Blocked Chute Detection
Sultan Smart Transducer
Farm Tanks, Grain Terminals
Orca Sonar Interface
Clarier
SULTA N 23 4
SULTA N 23 4
Gladiator
Admittance
Switch
Gladiator
Vibration
Switch
Gladiator
Admittance
Switch
Gladiator
Admittance
Switch
Microwave
Low Level
Microwave
Low Level

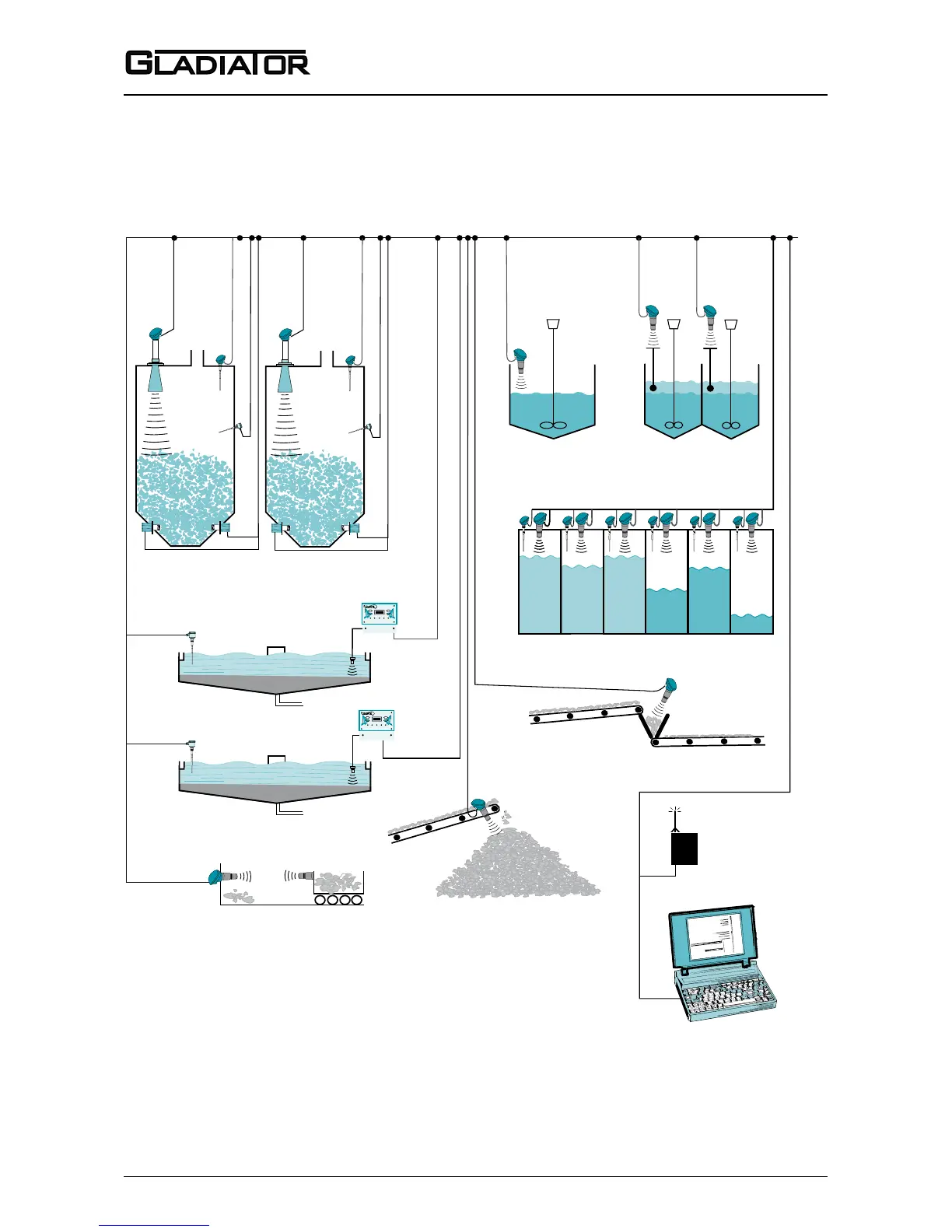

Sultan Master/Slave Positioning System
Gladiator
Conductivity
Switch
Gladiator
Conductivity
Switch
(Limited Modbus query rate for Switches only)
Sultan Acoustic
Wave Transmitter
MULTIDROP CONNECTIONS

Hawk Gladiator Specifications

Power

operating voltage	12-30VDC, 90-260VAC, 36-60VDC
power consumption	<0.8W @ 24VDC, <5VA @ 240Vac, <3VA @ 115Vac

Operating Environment

maximum operating pressure	2 BAR
operating temperature for remote electronics	-40°C (-40°F) to 80°C (176°F)
operating temperature for remote sensors	-20°C (-4°F) to 80°C (176°F)
enclosure sealing for remote electronics	IP67 (NEMA 4x)
enclosure sealing for remote sensors	IP68

Weight and Dimensions

transducer to amplifier separation	Up to 500m (1640ft)
typical weight for 15kHz transducer	8 kg
typical weight for remote amplifier	1 kg
