Hawk Gladiator User Manual

30
Admittance Smart Switch Series
Manual
Rev 1.2, June 2008
31
SwOff: 25%
0.0%
SwOn: 50%
0.0%
Press
Press
Max: 72.9%
0.0%
Percentage below which the Relay will be in
State 1*.
Press
Sensor Value
0.0%
Returns to
Percentage above which the Relay will be in
State 2*.
*Switch points are refered to as ‘On’ and ‘Off’ to
reflect the most simply understood performance in
FailSafe Low mode. Actual relay state may be different
according to setting of relay contact action.
Maximum captured Sensor Value % since last
history log reset, or last Cal Mounting operation.

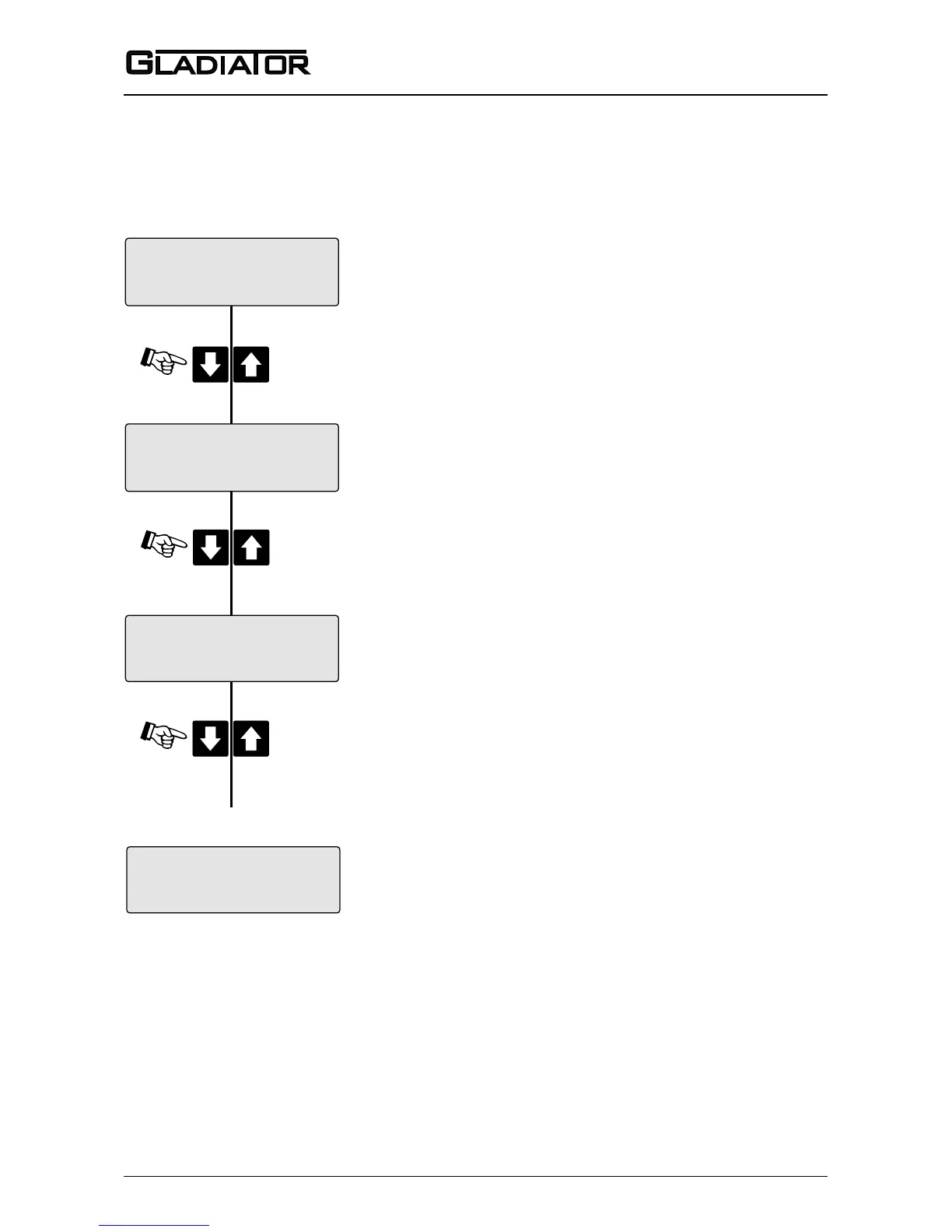

FLOW CHART
DIAGNOSTIC DISPLAYS
(see page 14)

Hawk Gladiator Specifications

Power

operating voltage	12-30VDC, 90-260VAC, 36-60VDC
power consumption	<0.8W @ 24VDC, <5VA @ 240Vac, <3VA @ 115Vac

Operating Environment

maximum operating pressure	2 BAR
operating temperature for remote electronics	-40°C (-40°F) to 80°C (176°F)
operating temperature for remote sensors	-20°C (-4°F) to 80°C (176°F)
enclosure sealing for remote electronics	IP67 (NEMA 4x)
enclosure sealing for remote sensors	IP68

Weight and Dimensions

transducer to amplifier separation	Up to 500m (1640ft)
typical weight for 15kHz transducer	8 kg
typical weight for remote amplifier	1 kg
