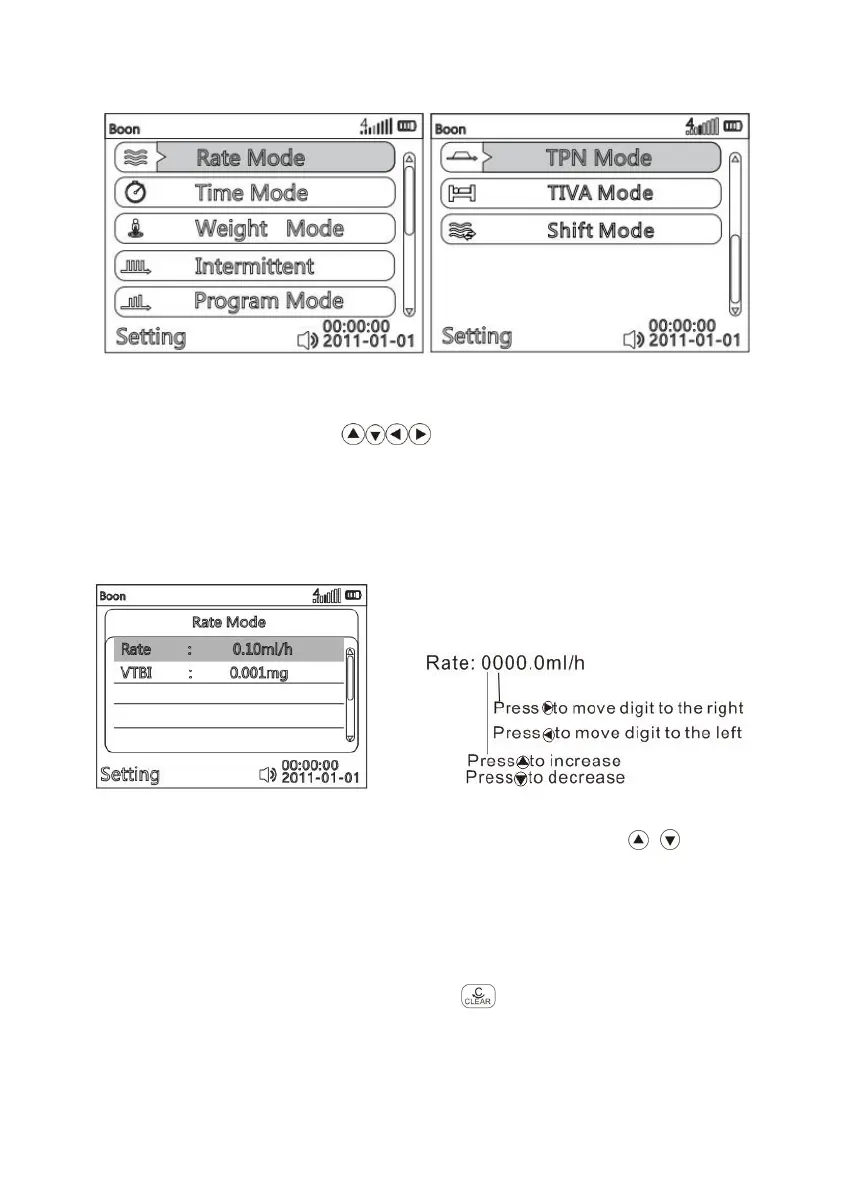

(Fig. 814-1 Infusion mode interface)
Select infusion mode by pressing key, press OK key to enter the parameter setting
interface of the infusion mode.
The following is methods of setting the parameters of modes:
（1）Rate Mode
(Fig. 814-2) (Fig. 814-3)
After entering parameter setting interface of Rate mode, press to choose
the parameter to be edited, it will be marked with blue rectangle background. Press OK
key, the blue rectangle disappears, then the current editable position will be marked
white rectangle background, input the value according to (Fig. 814-3). Rate and VTBI
are adjustable, after confirming, press OK to save.
If want to reselect the infusion mode, press to return.
（2）Time Mode
