HBM PAD4002A - Page 23

Electrical connection
PAD4002A A4243-1.0 HBM: public 21
1
2
3
4
5
6
7
8

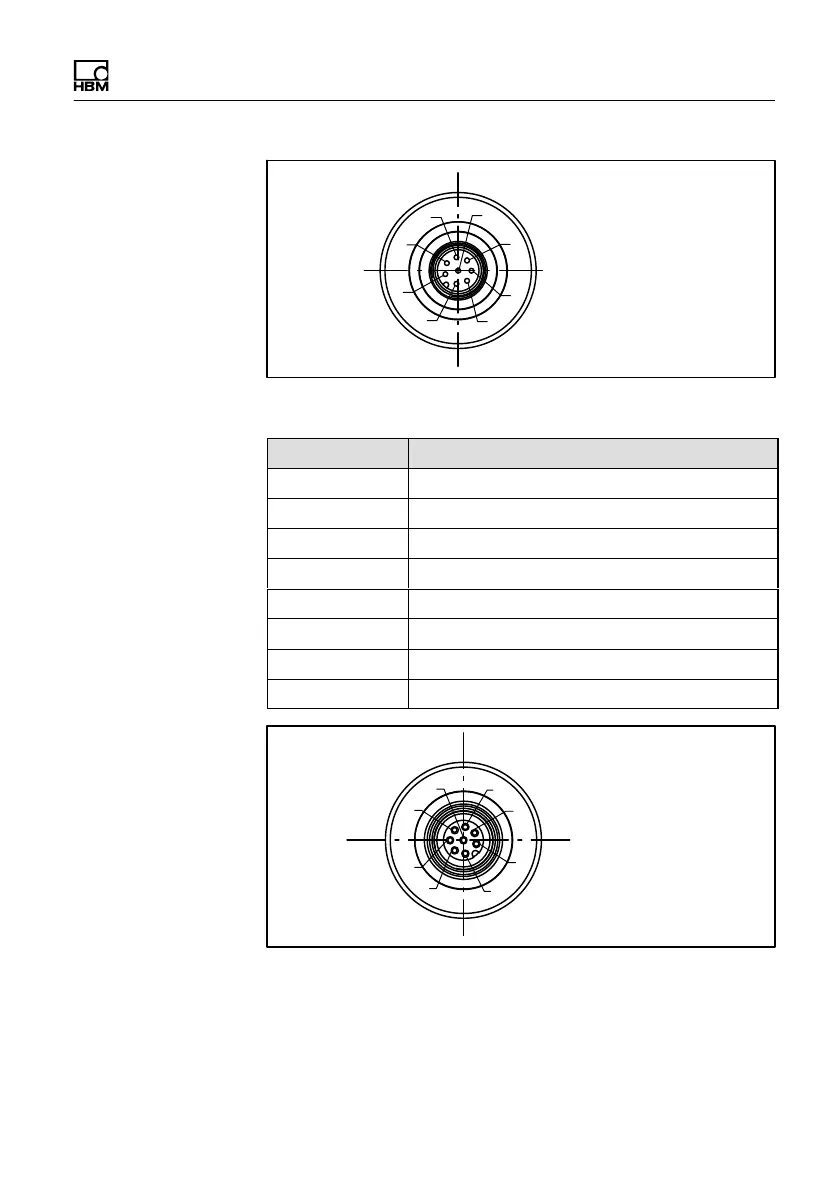

Fig. 6.1 M12 connector plug, 8-pin, for transducers
Pin Analog input
1 Measurement signal (+)
2 Not in use
3 Additional excitation voltage line (+)
4 Not in use
5 Additional excitation voltage line (-)
6 Bridge excitation voltage (-)
7 Bridge excitation voltage (+)
8 Measurement signal (-)
6
8
5
4
3
2
1
7
Fig. 6.2 Connector plug with M12 internal thread (for
1-KAB165) and M14 external thread (for 1-KAB173),
8-pin, for digital signals
