HBM we2111 - Connection of DC Voltage

WE2111
20 A3983-1.0 en/de/fr
7 Connecting the power supply
The WE2111 must be supplied with a controlled DC
voltage between 12 and 24V. The power pack module
WE2111-AC, which can supply 110 to 240V, is also
available as an option.
7.1 Connection of DC voltage
"
Connect the supply voltage to the connection marked
in Fig. 7.1.
Connection for 12
to 24V
DC
supply
+
-
Grounding plug

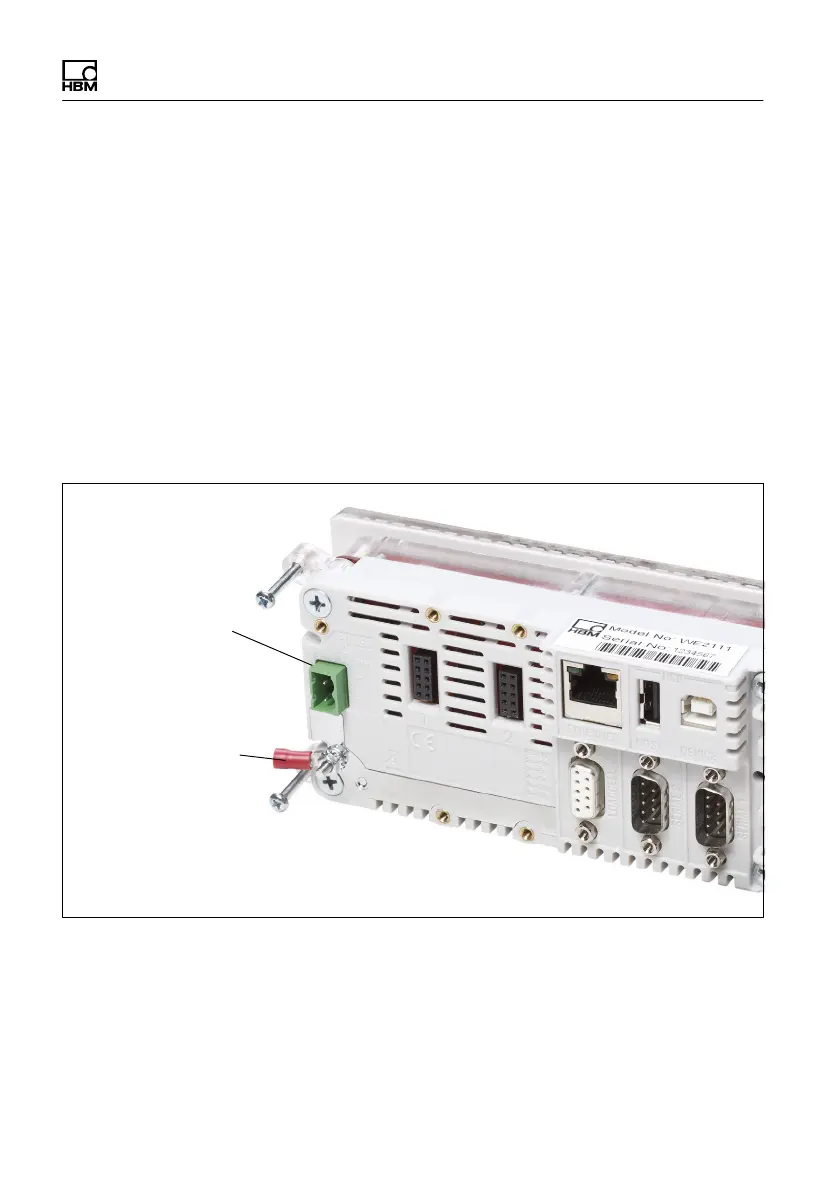

Fig. 7.1 Connection of the power supply and grounding plug
The upper connection is connected with Plus, the
lower with Minus. The pin assignment is also
embossed on the housing.
