WE2111
22 A3983-1.0 en/de/fr
"
Plug in the power pack module so that the connector
in the module slides into the connector socket of the
WE2111 (Fig. 7.2).
The socket for the mains connector must be at the
bottom of the module after mounting and the output
for the 12V auxiliary voltage at the top (Fig. 7.3).
Fastening screw (1)
Fastening screw (1)
(recessed)
Fastening screw (1)
(recessed)

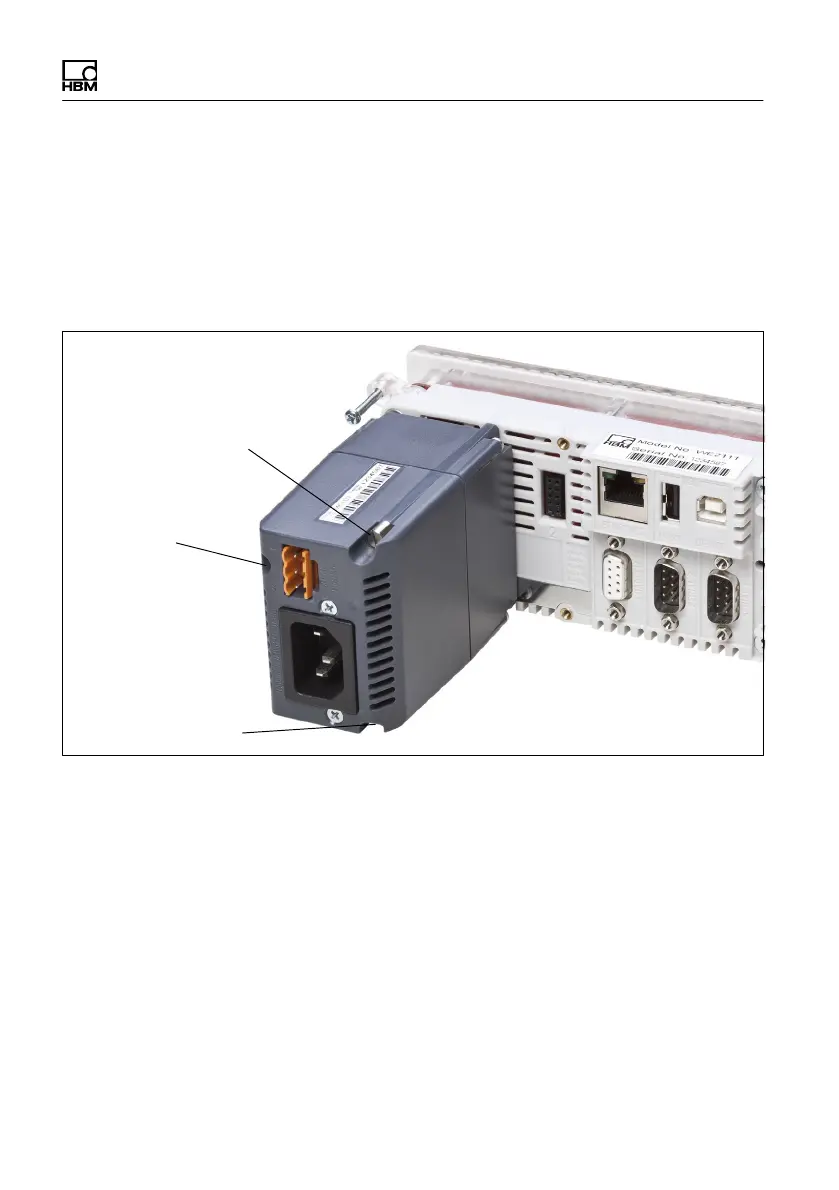

Fig. 7.3 View from rear, mounted power pack module
"
Hand-tighten the three fastening screws (1) for the
module (Fig. 7.3).
The WE2111 is now ready for switch on.
